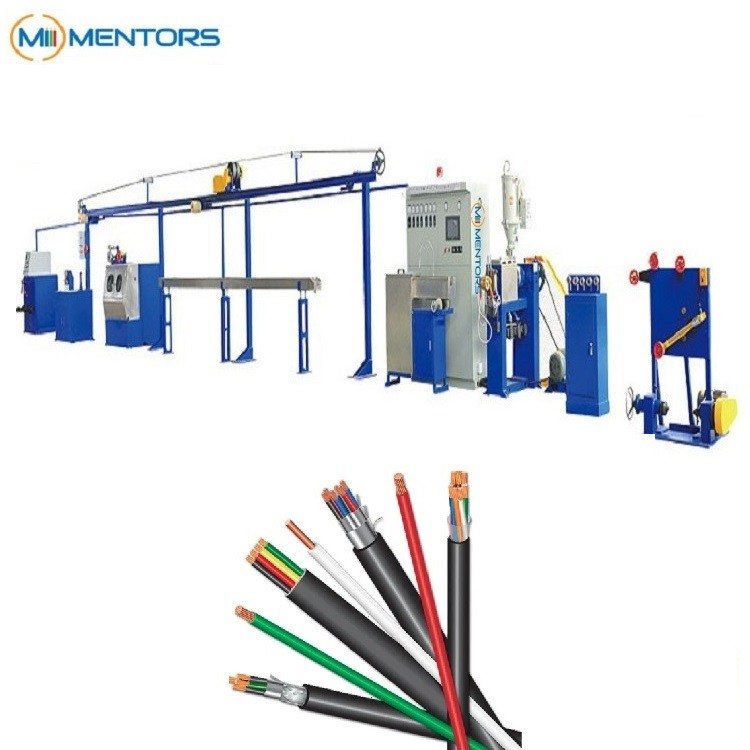

Teflon Extrusion Line

Home Extruder Machine Teflon Extrusion Line

Teflon Extrusion Line

It's Suitable for FEP (gather the whole fluorine B propylene , also called F46), PFA and ETFE (also called 40) fluoroplastic production.

Extruder Machine, Teflon Extruder Machine2022-09-22m90

Description

1. Application:

This type machine is used for making teflon cable.

2.Parameters:

Type SY-40 SY-45 SY-50 SY-65
Core diameter (mm) 0.8-2.5 1-3 1.5-5 2-8
Screw length/diameter 25:1 25:1 25:1 25:1
Temperature control 4+2
Heating power(kw) 15 18 18 25
Main servo motor(kw) 11 11 11 25
Traction servo motor(kw) 2.2 2.2 3.7 3.7
Max extrusion capacity(kg/h) 30 35 45 100
Max line speed(m/min) 180 180 180 180

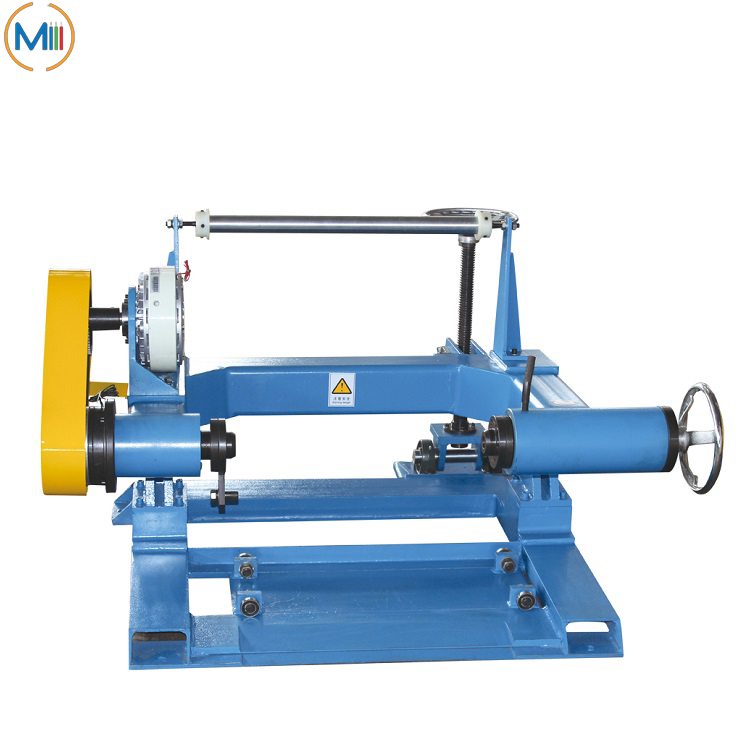

Pay-off Shaft active pay-off 300-500

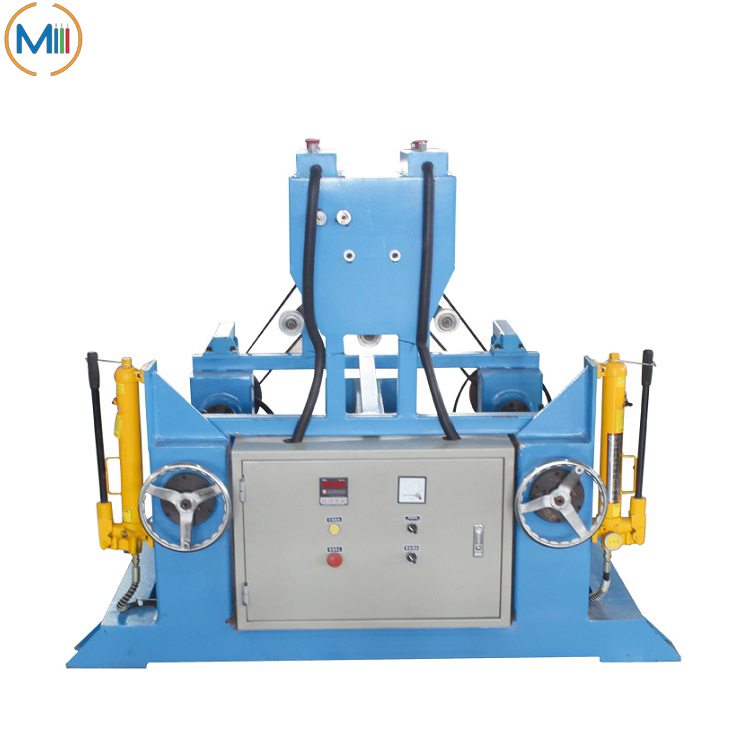

Take-up 400-630 shaft take-up machine with motor;

3kw+inverter+screw traversing

Size (m) 20×1.5×2.1 20×1.6×2.1 20×1.7×2.1 20×2.5×2.1
Weight (T) 7 7.5 8 9.5

3.Advantages:

1)Screw cylinder: New steel No.3 GH113 (with the American GDA material) able to bear the high temperature corrosion.

2)Head: New steel No.3 GH113 material special-purpose adjustable or automatic type.

3)Heating up system use high-temperature resistance copper alloy.

4)Quality control:Outer diameter detection feedback device to control product outside diameter, concentricity etc.

4.Delivery time: 45 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Extruder Machine
