Introduction:

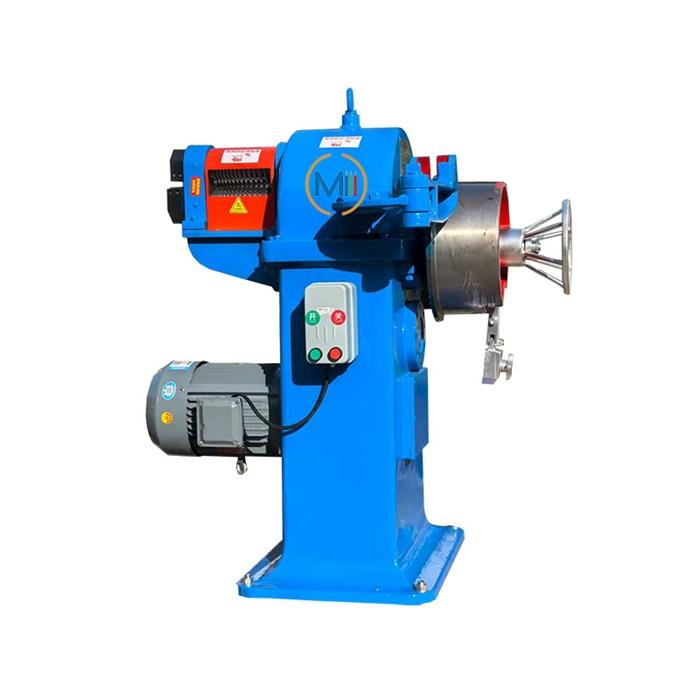

Wire Pointing Machine is an auxiliary device for wire drawing machines, designed to taper the wire tip at the start of the drawing process, allowing it to smoothly pass through the drawing die of each pass.
Main feature:
1)Inlet Wire diameter: 8mm or 9.5mm
2)Outlet Wire diameter : 1.45mm
3)Roll diameter: 98mm
4)Roller rotating speed : 40r/min
1.Application:
Wire Pointing Machine is mainly used to point the tip of the metal wire before drawing, allowing it to pass smoothly through the drawing die. By using cold plastic deformation, it reduces the wire diameter and increases its length, achieving the desired size and shape.
2.Parameters:
| Machine type | SY-180 |
| Inlet Copper Wire diameter | 8mm |
| Inlet Aluminium Wire diameter | 9.5mm |
| Outlet Wire diameter | 1.45mm |
| Diameter of its rolls | 98mm |
| Roller rotating speed | 40r/min |
| The number of type hole | 11 |
| Power of motor | Y100L-6 3KW |

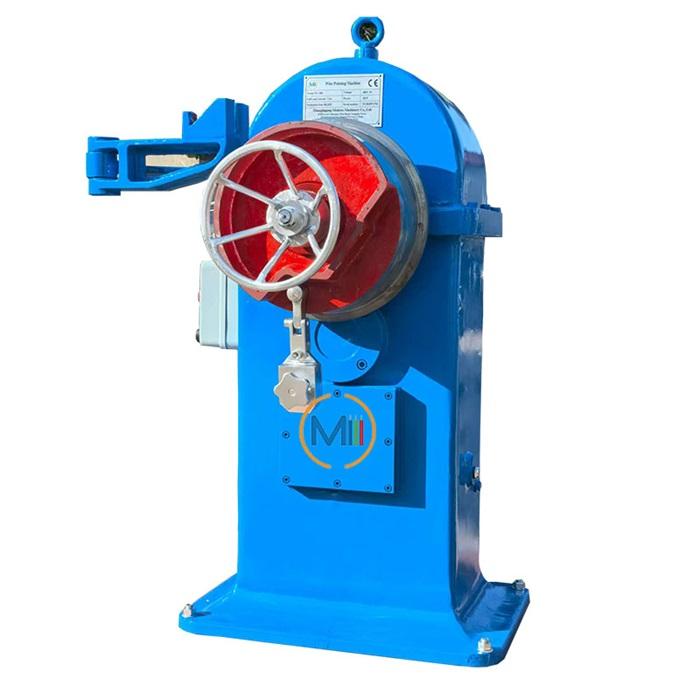

| The diameter of pull drum | 300mm |
| The number of eccentric | 3mm |
| Weight | 650kg |
3.Advantages:

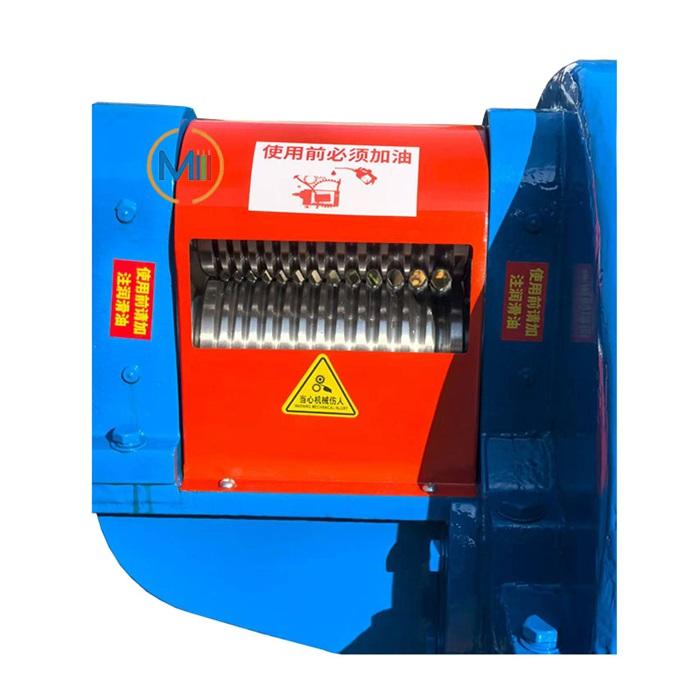

1)A cutting function is available and the pointer is of saw shape. When tightened, the wire will be wound into coils automatically.
2)The wire head from the wire pointing machine is conical instead of triangular shape, Which will ensure that the clamped part will not break when pulling the wire.
3)The roll material is 38CrMoAl, after nitrogen treatment, it has high rigidity, good anti-corrosive performance, and is rather durable.
4.Delivery time: 60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12months since shipping date(exclude easily wearing part)
