Hot Dip Copper Wire Tinning Machine

Home Annealing and Tinning Machine Hot Dip Copper Wire Tinning Machine

Hot Dip Copper Wire Tinning Machine

Introduction:

Hot Dip Tinning Machine can continuously tinning the copper wire.Immerse the copper with a clean surface in the molten tin solution at high temperature (the solid tin is melted by heating), and use the physical reaction at the interface to strengthen and form a layer of tin on the surface through extrusion process. Hot-dip plating is a kind of physical processing

Main feature:

1)Inlet wire range: 0.2-0.50mm.(Soft copper wire)

2)Wire quantity: 16 wires

3)Tinning type: hot dip

4)Max. speed: ≤300m/min

Annealing and Tinning Machine, Copper Wire Tinning Machine

Description

1.Application:

Hot Dip Tinning Machine can continuously tinning the copper wire.

2.Parameters:

Machine type SY-16H
Inlet wire range 0.2-0.50mm.(Soft copper wire)
Wire quantity 16 wires
Tinning type hot dip, dies scraping the tin
Max. speed ≤300m/min
Tinning eye model ODΦ25mm X Thickness 8mm

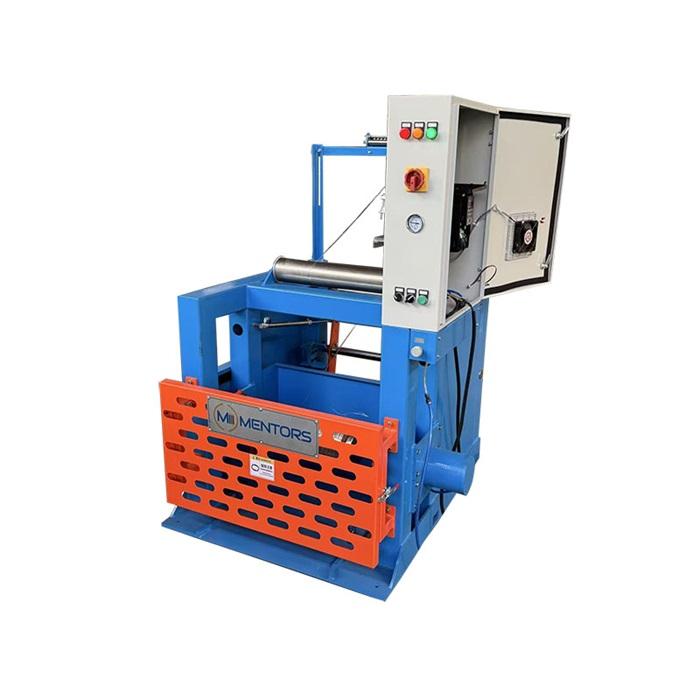

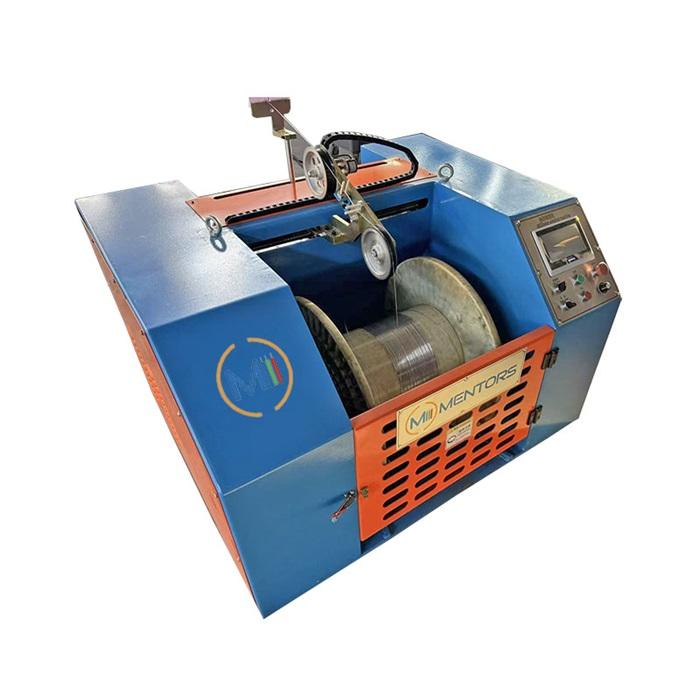

Pay off and Take-up bobbin size 630mm
Traversing type  individual type, motor controlled
Bobbin change type single spool manual bobbin change
Voltage 3*380/50Hz or customized

3.Advantages:

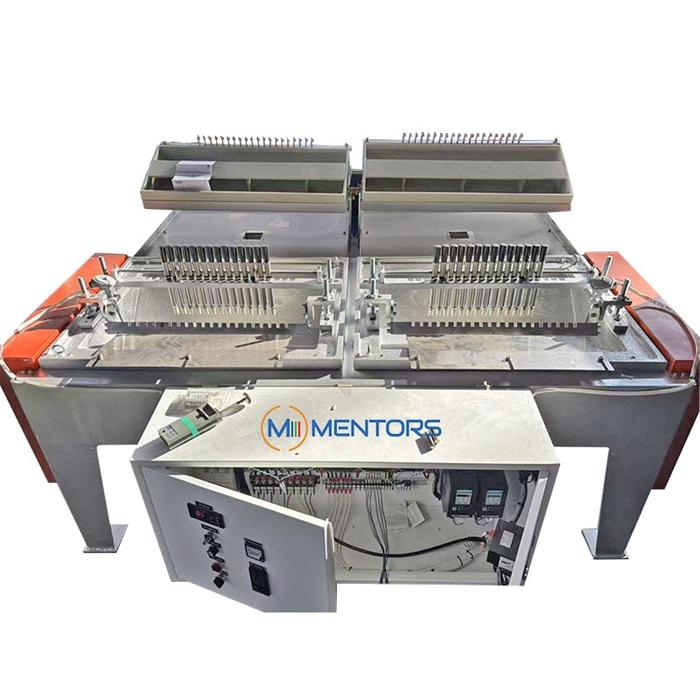

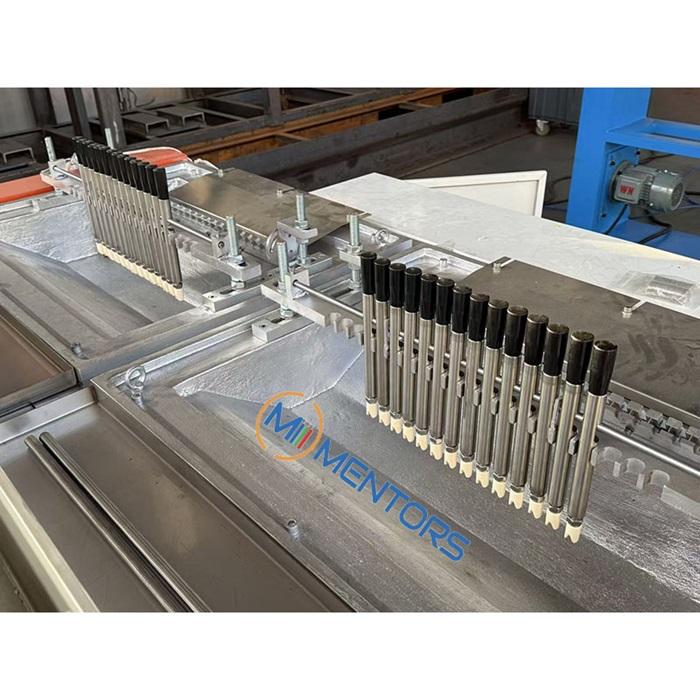

1)The tin plating part of the hot dip tinning machine with an auxiliary pickling tank and a double-pot tin tank.

2)Tinning channel center has ceramic guiding wheel, the wheel base can turn 120°, easy to thread wire.

3)Temperature control: K type thermocouple measure temperature, digital temperature-controlled meter to control temperature automatic. When working, only need to set the temperature of tinning channel as the technique process, the control meter will control the temperature in certain degree, control rang 0-400℃.

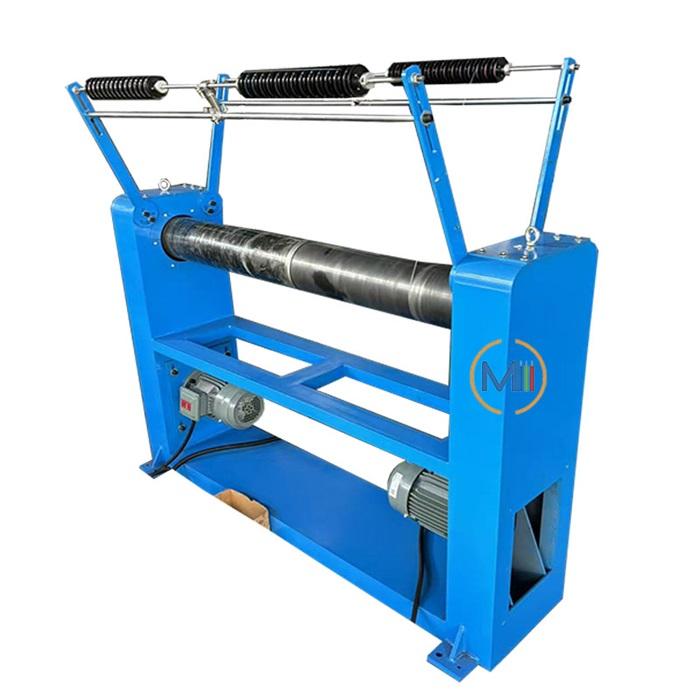

4)Haul off speed is controlled by separate inverter, stepless speed regulation, the haul off speed is the line speed.

5)Individual traversing type, servo motor controlled. Speed and traversing distance can be adjusted.

4.Delivery time: 30-45 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12months since shipping date(exclude easily wearing part)

Click here to see the running video of Copper Wire Tinning Machine
