Description
1. Application:

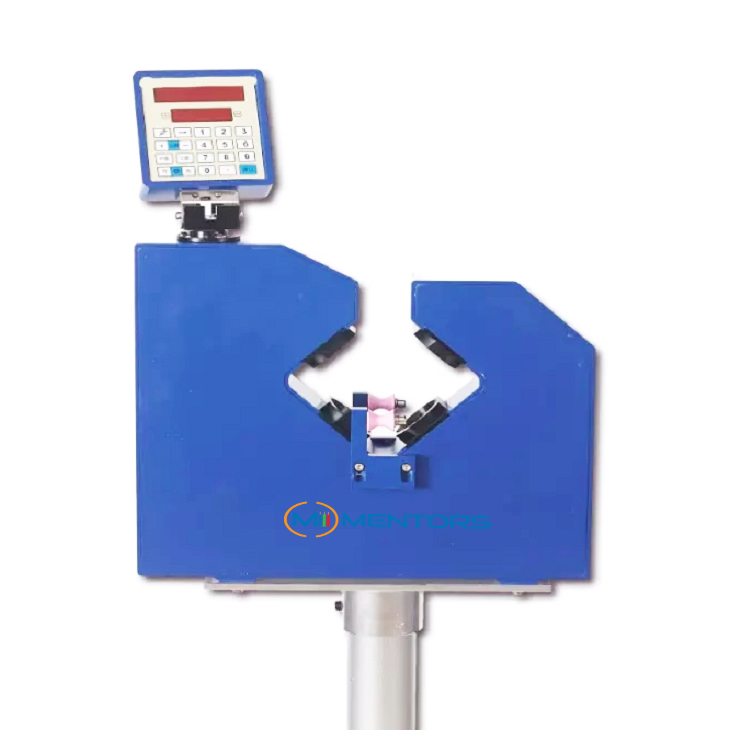

Laser Diameter Gauge is specially designed for wires and cables,which not only measure and display diameter and deviation online,but also automatically control diameter of wire and
print parameters according to user’s demand.
2.Parameters:
| Main performance
parameters |
Measurement range | 0.1 – 25mm |
| Resolution | 0.001mm | |
| Accuracy | ±0.002mm | |
| Power requirements | AC 180 ~ 260V, 50Hz | |
|
Applications |
Wire and cable
Glass pipes Metal wire and line Extruder combines Drawing machine |
|
3.Advantages:
1.Suitable for online measurement of any round wires and other objects.
2.Non-contact measurement, high-speed inspection, high precision and stable performance.
3.Wires quality management software can record the real time curve of changing external diameters.
