1. Introduction
1.1 The Hot Dip Tinning Machine is a specialized piece of equipment designed to coat copper wires with a uniform, thin layer of tin.
1.2 This process significantly enhances the electrical conductivity, corrosion resistance, and solderability of copper wires, making them highly suitable for applications in electrical cables, multi-strand wires, connectors, transformers, and various electronic components.
1.3 As the demand for high-quality conductive materials continues to rise in the electrical and electronics industries, Hot Dip Tinning Machines have become an essential component of modern copper wire production.
1.4 A properly tin-coated copper wire not only ensures stable electrical performance but also provides mechanical protection and extends the lifespan of the wire.
1.5 Moreover, tin plating prevents oxidation and corrosion, even under harsh environmental conditions such as high humidity or exposure to chemical elements.
1.6 The advancement of Hot Dip Tinning Machines has allowed manufacturers to achieve high precision in coating thickness, uniformity, and surface quality, even when processing multiple wires simultaneously.
2. Applications
Hot Dip Tinning Machines are primarily used to improve the overall quality and performance of copper wires. The tin coating on the wires provides several advantages:
2.1 Improved Electrical Conductivity
2.1.1 Tin reduces contact resistance between wires and connectors, ensuring efficient current flow and minimizing energy loss.
2.1.2 This is particularly important for multi-strand wires used in complex electrical assemblies.
2.2 Corrosion and Oxidation Resistance
2.2.1 The tin layer forms a protective barrier that prevents copper from oxidizing or corroding.
2.2.2 This ensures the long-term reliability of electrical connections, especially in environments with high moisture or exposure to chemicals.
2.3 Enhanced Solderability
2.3.1 Tinned copper wires can be soldered easily and form reliable, high-strength connections.
2.3.2 This makes them ideal for use in electronics manufacturing and electrical assembly.
2.4 Broad Industrial Applications
2.4.1 Hot-dip tinning is widely used in manufacturing electrical cables, multi-strand wires, transformers, connectors, printed circuit boards, and other electronic components that require high-quality copper conductors.
3. Key Features of Hot-Dip Tinning Machines
Modern hot-dip tinning machines are equipped with advanced features that improve production efficiency and coating quality. Some of the key features include:
3.1 Continuous Tinning Capability
3.1.1 These machines allow copper wires to pass through the molten tin bath continuously, ensuring consistent coating quality throughout the production process.
3.2 Multi-Wire Processing
3.2.1 To meet specific production needs, certain machines can tin multiple wires simultaneously.
3.2.2 For example, some models can coat 16 wires at once, making them suitable for multi-wire drawing machines and high-volume production lines.
3.3 Comprehensive Machine Composition

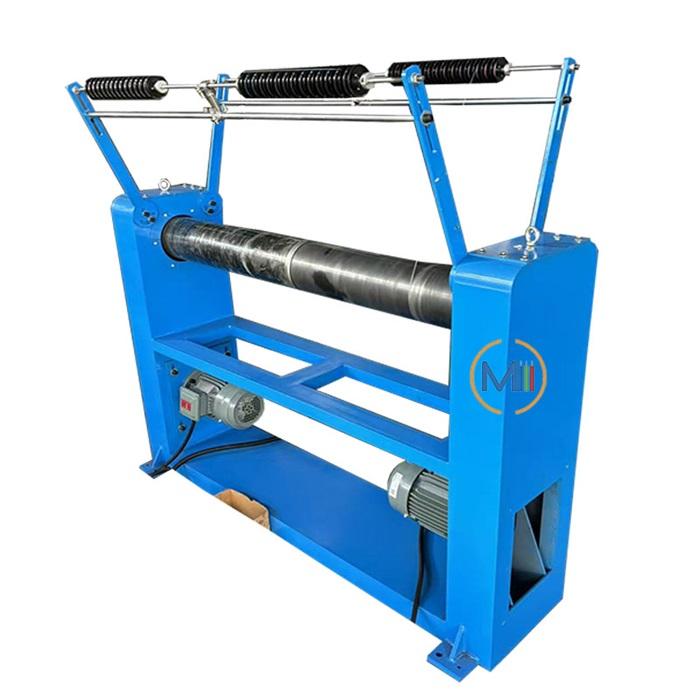

3.3.1 A standard hot-dip tinning line typically consists of a pay-off, a tinning bath, a haul-off unit, and a 630 take-up system. Each component is carefully coordinated to ensure the wire moves smoothly through the production process, maintaining uniform tension, alignment, and coating quality.
3.4 Automation and Safety Features
3.4.1 Modern systems include sensors, automated controls, and safety mechanisms to reduce downtime, prevent wire breakage, and protect operators from hazards such as hot molten tin and moving components.
4. Componentsand Operation Process
A typical hot dip tinning machine consists of the following parts:
4.1 Wire Pay-off system: Supplies wire from spools steadily.
4.2 Straightening and guiding system: Ensures smooth wire feeding into the tin bath.
4.3 Pre-cleaning section: Removes oxides and surface contaminants.

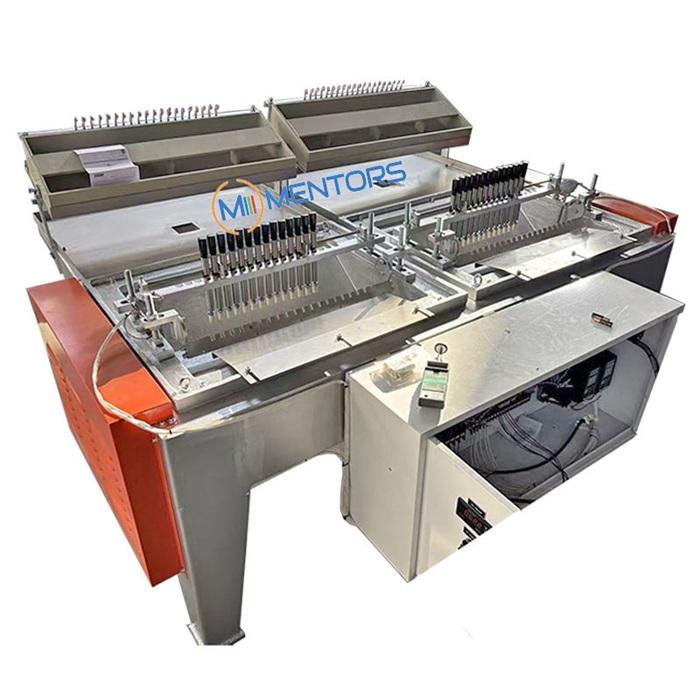

4.4 Tin bath: Maintains molten tin at a controlled temperature for uniform coating.
4.5 Withdrawal and cooling system: Solidifies the tin layer evenly on the wire.

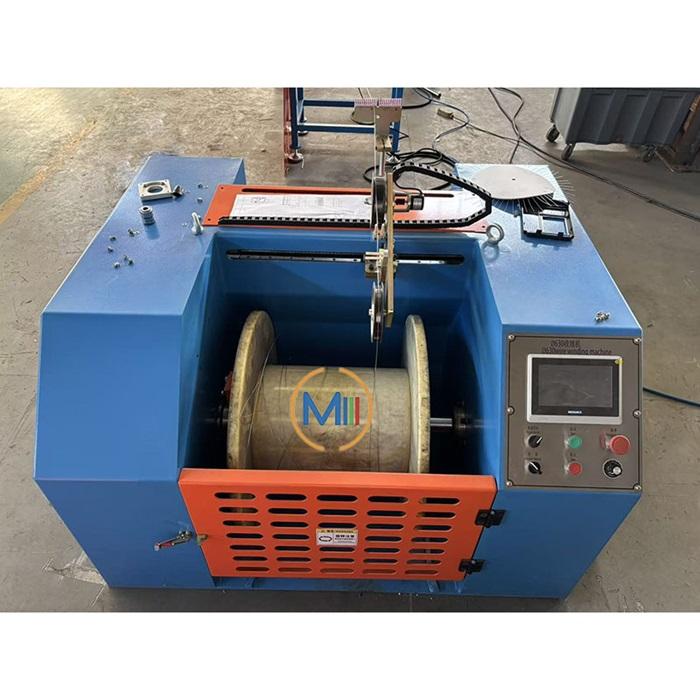

4.6 Take-up system: Collects the tinned wire onto spools.
4.7 Control system: Manages temperature, speed, and safety features.
4.8 The hot dip tinning process involves several key steps:
4.8.1 The wire passes through the pre-cleaning section to remove impurities.
4.8.2 It enters the tin bath, where molten tin adheres to the wire surface.
4.8.3 The withdrawal system ensures a uniform tin layer.
4.8.4 The wire passes through the cooling section to solidify the coating.
4.8.5 The take-up system collects the finished tinned wire for further use.
5. Precautions During Use
To ensure both safety and high-quality output, operators must follow several precautions:
5.1 Maintain Proper Wire Diameter
5.1.1 The wires must be within the specified diameter range for the machine, usually 0.2–5 mm.
5.1.2 Exceeding the range can result in poor coating or mechanical issues.
5.2 Control Tin Bath Temperature
5.2.1 Temperature must remain stable. Too high a temperature can damage wires, while too low a temperature may lead to uneven coating or poor adhesion.
5.3 Uniform Wire Tension and Feeding Speed
5.3.1 Consistent tension and speed prevent breakage and maintain uniform tin coating.
5.4 Regular Cleaning of Tin Bath and Filtration System
5.4.1 Accumulated impurities can affect coating quality.
5.4.2 Cleaning ensures smooth production and uniform coating.
5.5 Proper Safety Equipment
5.5.1 Operators should wear gloves, protective clothing, and eye protection due to the high temperature of the molten tin.
5.6 Adequate Ventilation
5.6.1 Good ventilation prevents exposure to fumes generated during the tinning process.
6. Advantages Compared to Standard Systems
Hot-dip tinning machines with advanced features offer several advantages over conventional single-pot systems:
6.1 Greater Flexibility: Independent temperature control in each tinning bath allows processing of a wider range of wire diameters without changing equipment.
6.2 Higher Efficiency: Multi-wire processing significantly increases production throughput, reducing overall production time.
6.3 Consistent Quality: Automated control of tension, speed, and temperature ensures uniform coating thickness and smooth surface quality.
6.4 Reliable Operation: Robust construction and coordinated components minimize downtime and maintenance requirements.
7. Common Faults and Methods
| Problem | Possible Reasons | Solutions |
| Rough Coating, Lumps | Low temperature, excessive dross, poor pre-treatment | Increase temperature, remove dross, improve pre-treatment |
| Dull, Matte Coating | High temperature, excessive impurities in tin, slow cooling | Reduce temperature, replace portion of tin, check cooling system |
| Poor Adhesion / Skipping | Severe workpiece oxidation, ineffective/uneven flux | Improve pre-treatment (e.g., pickling), replace/apply flux evenly |
| Excessive Dross Formation | Temperature too high, frequent agitation, poor tin quality | Reduce to process temperature, gentle handling, use quality tin bars |
| Equipment Not Heating | Heater failure, blown fuse, faulty temperature controller | Contact electrician/qualified personnel for inspection/replacement |
8. Conclusion
Hot-dip tinning machines are essential in producing high-quality copper wires with improved conductivity, corrosion resistance, and solderability. By following proper operational procedures and safety precautions, operators can maintain high-quality tin coatings and extend the lifespan of copper wire products. These machines continue to play a vital role in meeting the evolving demands of the electrical and electronics industries, providing reliable, high-performance solutions for manufacturers and customers worldwide.
Click here to see the running video of Hot Dip Tinning Machine.
