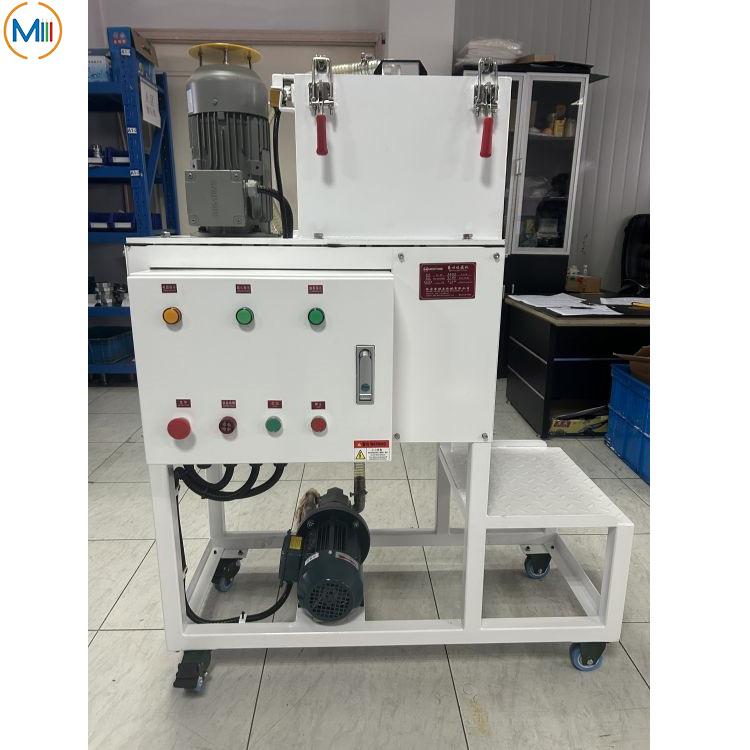

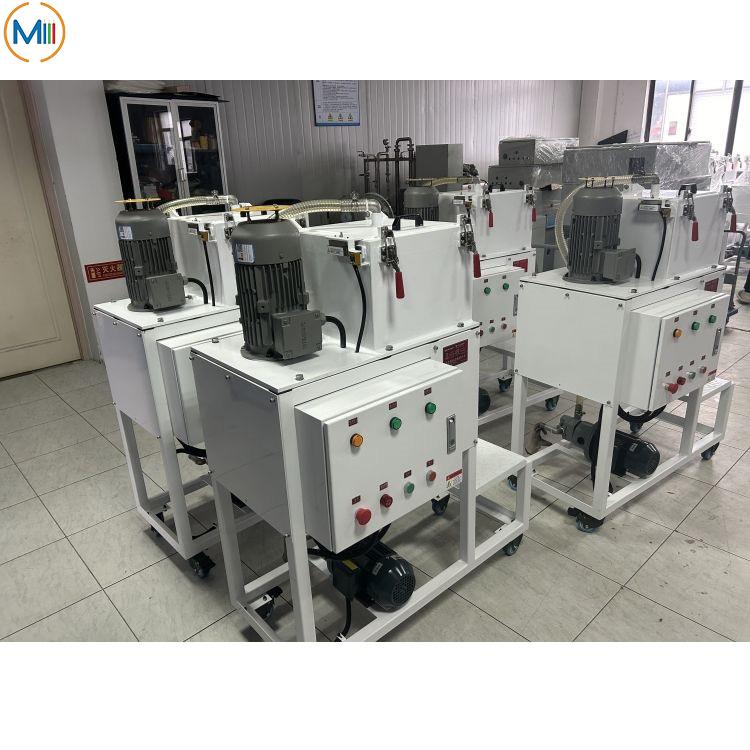

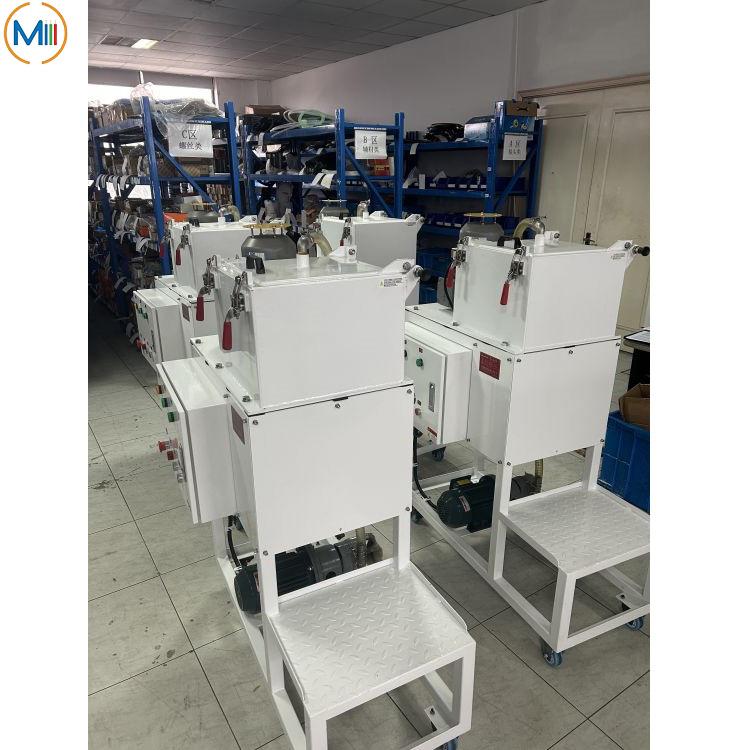

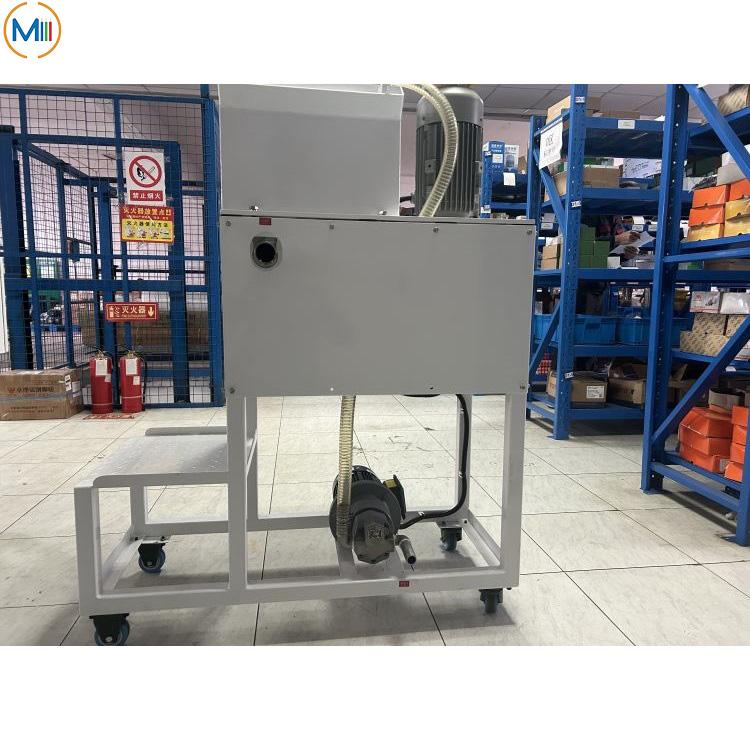

Aluminum Powder Filter
Feature:
(1) Centrifugal filtration principle, automatic slag discharge
(2) Good stability and strong centrifugal force
(3) High efficiency and energy saving
Description
1. Application:
The Aluminum Powder Filter is used to collect aluminum powder, aluminum sludge, etc. in the circulating lubrication tank of the wire drawing machine.
It can reduce the viscosity of drawing emulsion and improve its cleanliness and production efficiency.
2. Feature:
(1) Centrifugal filtration principle, automatic slag discharge
(2) Good stability and strong centrifugal force
(3) High efficiency and energy saving
3. Parameter:
| Applicable liquid | Drawing oil, lubricating oil, etc |
| Function | Remove mud, iron, impurities, etc |
| Maximum filtration | 5-30L/min |
| Maximum storage | 4.5L |
| Rotate speed | 3200rpm/min |
| Voltage | 400v,50HZ,3PHASE |
| Centrifugal drum material | Dynamic balance test of high-quality aluminum alloy and imported precision equipment |
| Filter type | Two-phase |
| Applicable temperature | 0~80℃ |
| Slag unloading mode | Manual discharge |
| Rotor material | Aluminum alloy |
| Frame | It is made of hot-rolled steel sheet, and the surface is painted and rust-protected |
| Oil pump type | Gear oil pump |
| Dimension | Approx.900×480×1000mm |
| Inside Lining paper | It includes 250PCS Inside Lining paper |
