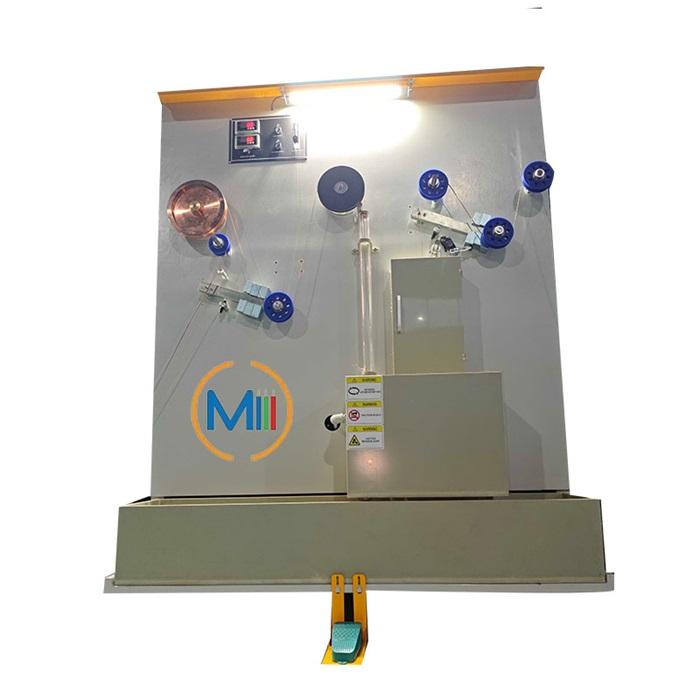

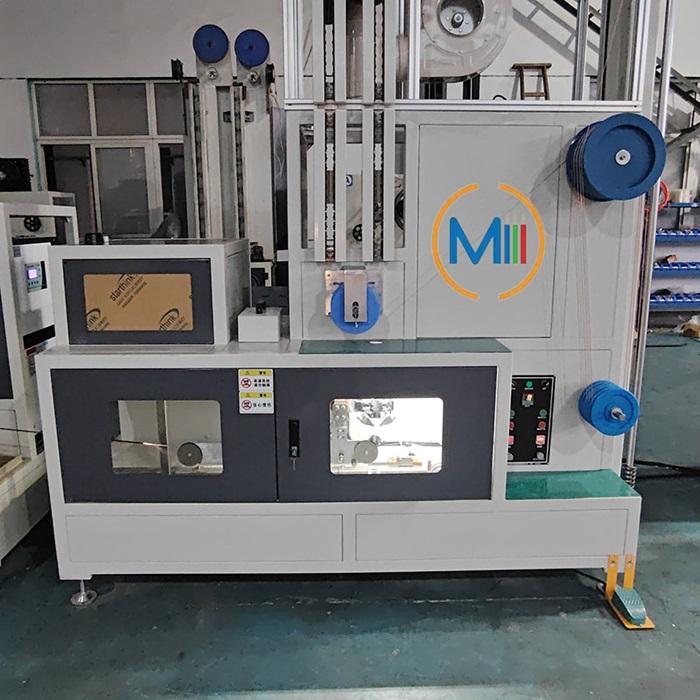

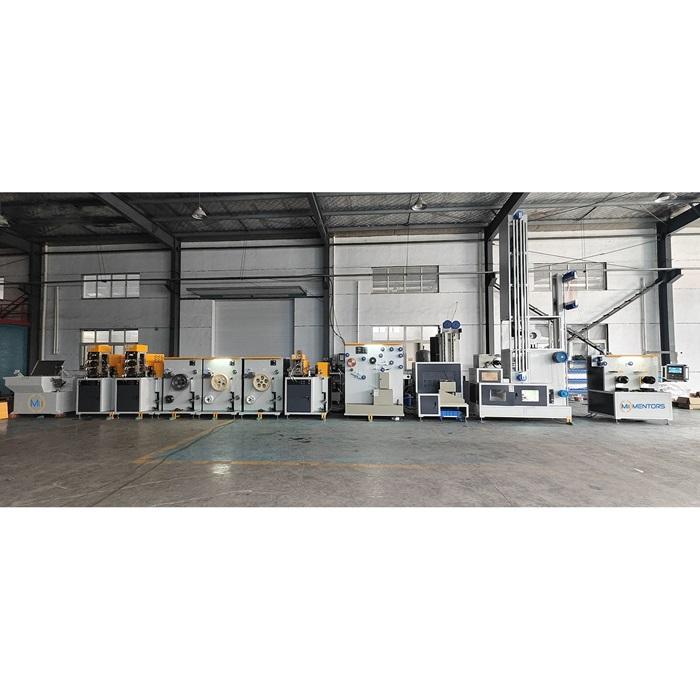

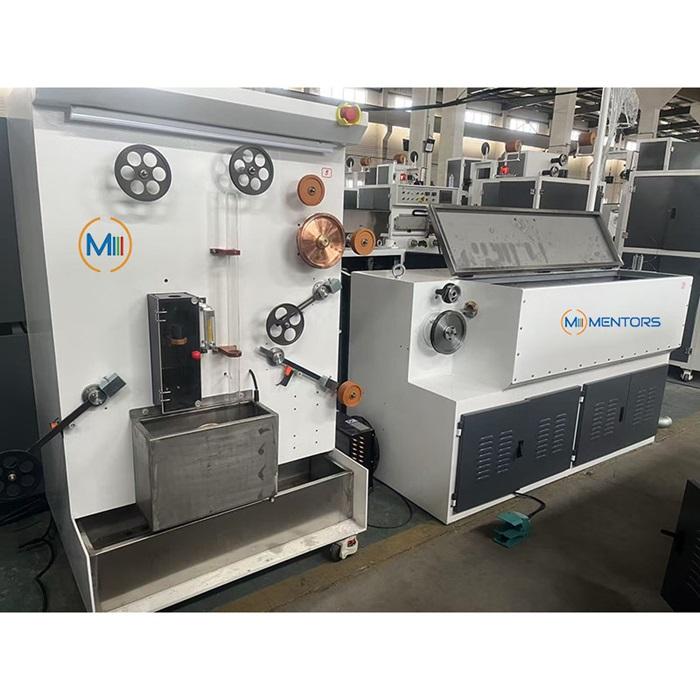

This machine is used for producing Busbar ranging from 1.0mm to 3.0mm.
Main feature:
1)Output flat wire width: 3-8mm
2)Wire release method: traction wire release
3)Mechanical speed: 0-120MPM/Max
4)Plating thickness(double-layer): 15-40μm
Category: Busbar Rolling Machine, Solar Busbar Production Line, Solar PV Ribbon Machine
1.Application:
This machine is used for producing Busbar ranging from 1.0mm to 3.0mm.
2.Parameters:
| Input wire diameter | 1.0-3.0mm copper round wire |
| Wire release method | traction wire release |

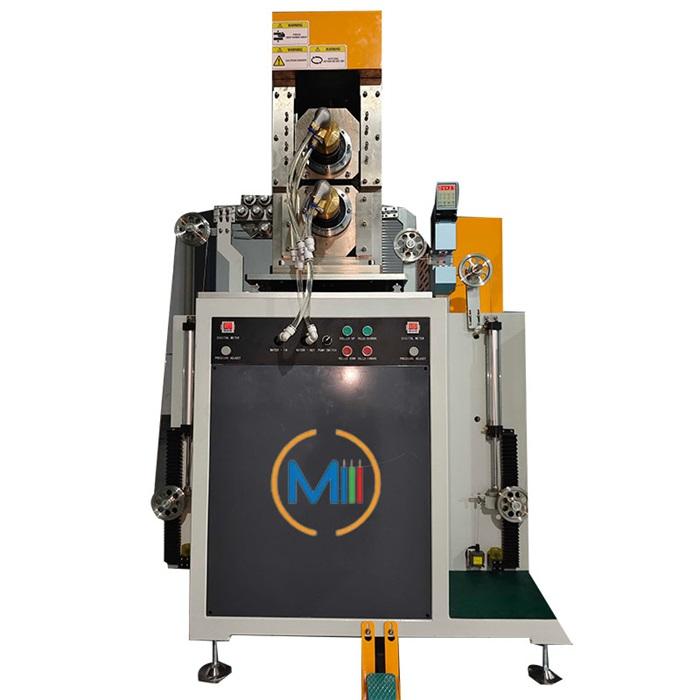

| Rolling range | flat press 200MM roller,
rolling ratio within 12 times |
| Mechanical speed | 0-120MPM/Max |
| Output flat wire width | 3.0-8.0MM |
| Output flat wire thickness | 0.1-0.3MM |
| Plating thickness (double-layer) | 15-40μm |
| Cooling method | circulating saponification liquid water cooling |
| Finished product inspection | online laser inspection |
| Flat press motor | 15HP reducer (frequency conversion motor)
AC motor and 15HP (sine) tension type frequency converter |
| Mechanical speed Working speed | 60m/min-120m/min |
| Weight | The whole machine weight is 9 tons |
| Voltage | 380V |
| Whole machine power | 120KW |
| Rolling mill power | 15kw + reducer |
| Inlet wire size | 2.6–3.0mm (according to the customer’s wire diameter) |
| Finished product size | Copper strip width 3-8mm
Tolerance ±0.01mm |
| Copper strip thickness 0.20-0.40
Tolerance ±0.003mm |
|
| Equipment size
(length, width and height) |
22mx2mx2.8m |
3.Advantages:
1) The frame wire drawing machine frame is made of Q235 welded in one piece and is composed of a standard wire drawing machine.
2) The machine body is made of Q235 welded in one piece and is annealed to eliminate internal stress and is non-deformable; precision coaxial boring and flat surface processing.
3) Wire Traversing mechanism: 1000W servo (Delta) motor is used as the wire Traversing power, and the gearbox drives the ball screw (Hiwin) to control the movement of the wire Transmission rod. The precision slide rail (Hiwin) is assembled in parallel, which is sensitive to response. The 4 sliders support the wire Traversing stably, which can ensure good wire arrangement quality.
4.Delivery time: 60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12months since shipping date(exclude easily wearing part)
