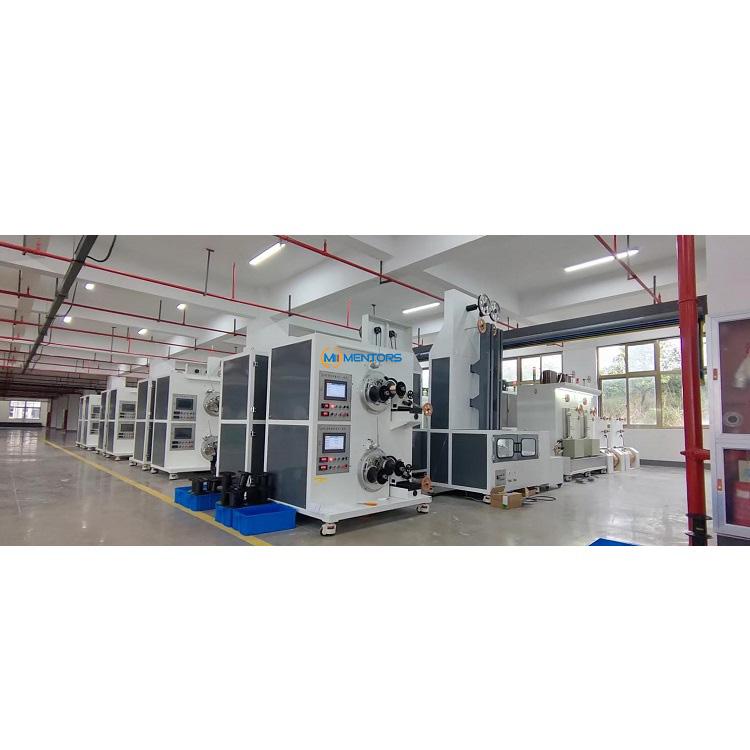

Double Head PV Ribbon Tinning Machine
Feature:
(1) Number of wires: 2 Wires
(2) Copper wire diameter:Φ0.18—Φ0.37mm
(3) Finished Wire Diameter: Φ0.20—Φ0.4mm
(4) Machine composition: Pay-off, Annealing machine, Tin coating machine, Take-up machine
Description
1. Application:
This machine is used to produce 0.2-0.4mm PV Ribbons, and the finished products can be used to connect cells on solar panels.
2. Feature:
(1) Number of wires: 2 Wires
(2) Copper wire diameter:Φ0.18—Φ0.37mm
(3) Finished Wire Diameter: Φ0.20—Φ0.4mm
(4) Machine composition: Pay-off, Annealing machine, Tin coating machine, Take-up machine
3. Parameter:
| Number of wires | Double wire |
| Copper wire diameter | Φ0.18—Φ0.37mm (The wire diameter of 0.15 cooperates with crystal source research) |
| Finished Wire Diameter | Φ0.20—Φ0.4mm (below 0.20 cooperate with crystal source research) |
| Maximum wire speed | MAX350m/min |
| Actual running speed | 250-300m/min |
| Yield strength (MPA) | Wire diameter ≥ 0.22, yield strength ≤ 65Wire diameter below 0.22 (not included): <70 |
| Tinned ribbon elongation | ≥25% |
| Tensile strength of tinned solder strip | ≥150-210MPa |
| Dimensional Tolerance of Tin-coated Ribbon | Thickness: ±0.01mm |
| Single-side tin layer thickness | 15±5μm |
| Tinned Ribbon Sickle Bend | ≤4mm/1m (try to adjust to 3mm) |
| Haul-of power | 0.75KW |
| Take-up power | 150W |
| Annealing wheel diameter | Φ200mm |
4. Machine Characteristic:
(1) Pay-off machine body stable, no deformation, equipped with safety cover. Power pay-off, PID tension control is a precise, timely adjustment, to avoid the phenomenon of disordered wires.

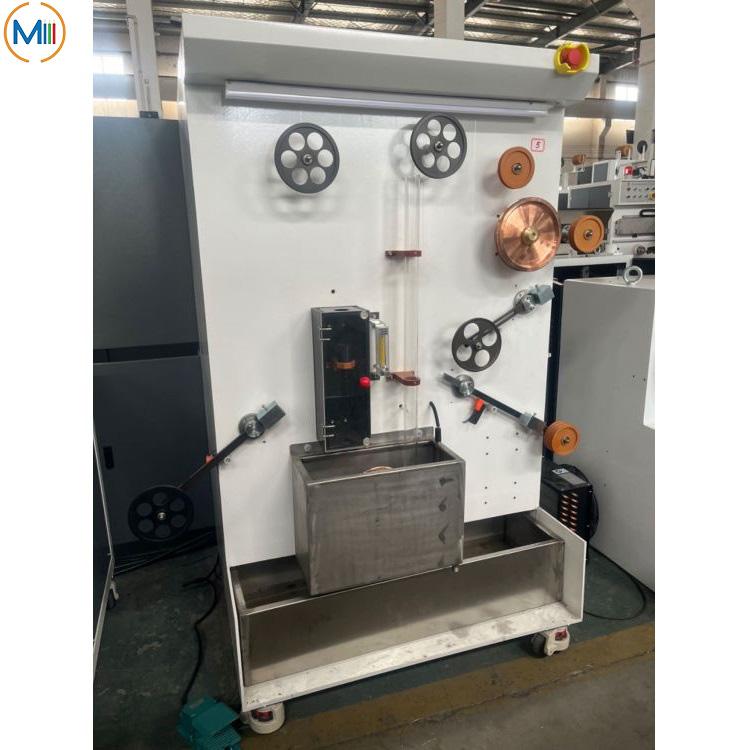

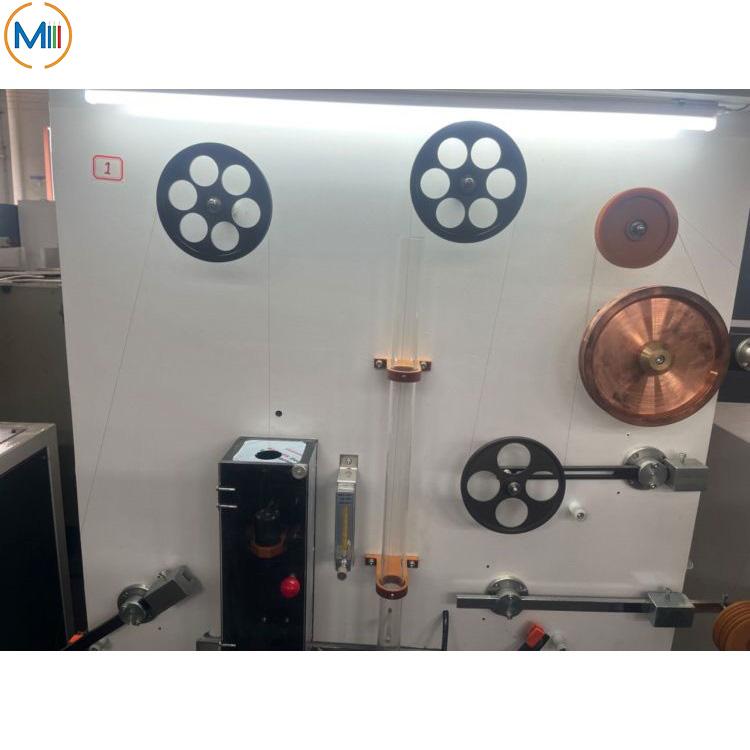

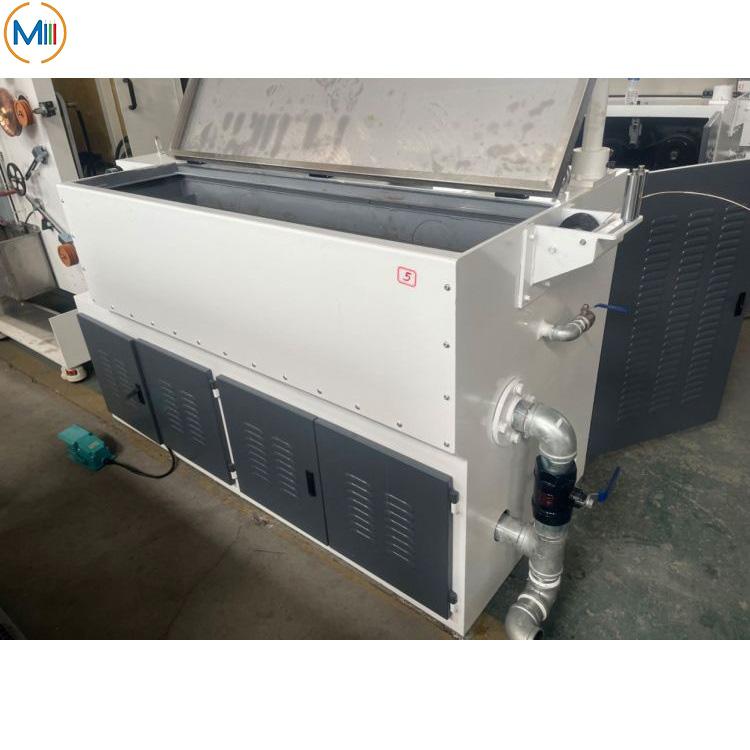

(2) Annealing cooling adopts the external circulation method, and the water temperature is controlled at about 40-45°C.
(3) Separate positioning design between the tinning module and the tin furnace, the wire tinning process does not interfere with each other. Heating control adopts temperature control sensor, and electric control independent control.

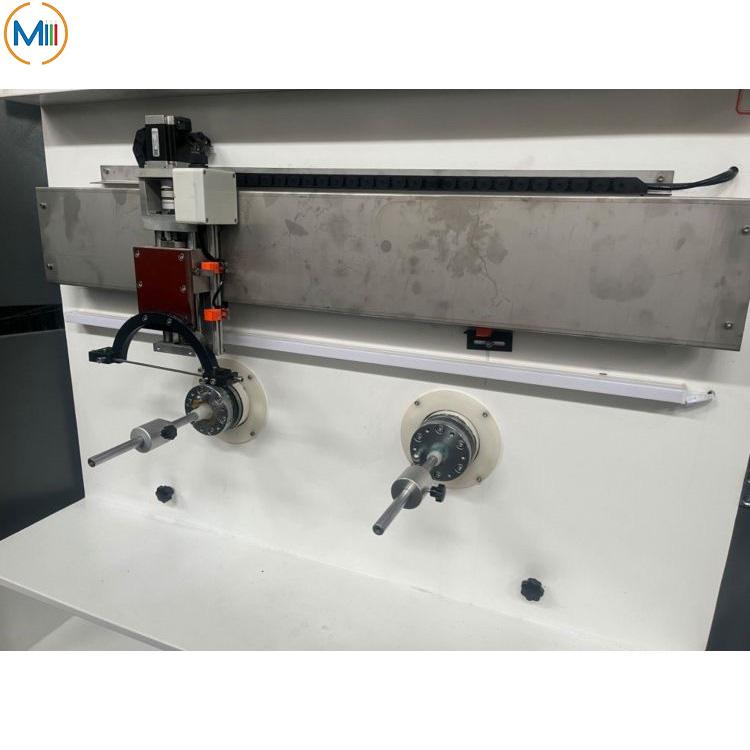

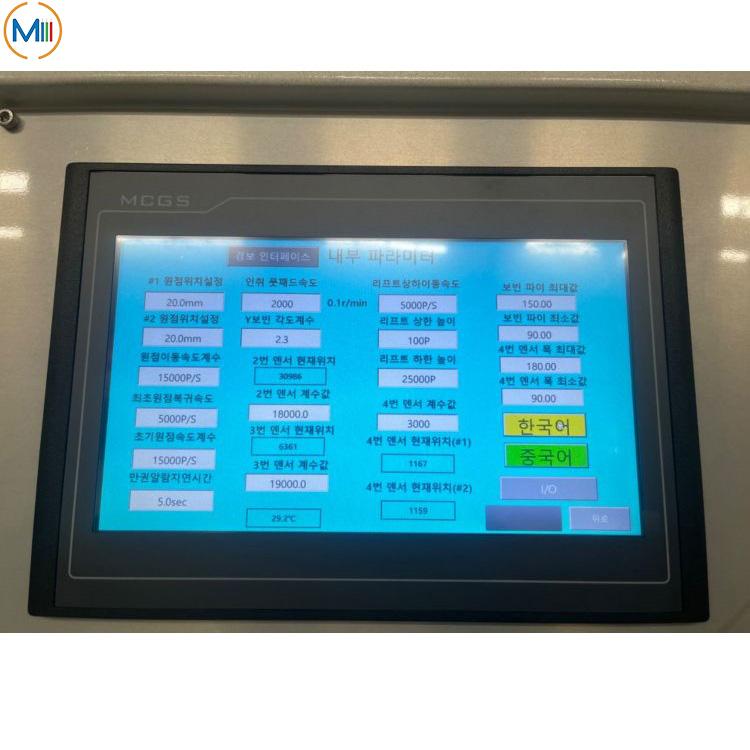

(4) The take-up machine is equipped with functions such as a full bobbin alarm, wire disconnection alarm, automatic alarm when the meter is reached, etc.
5. Delivery time: 60-90 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
