Electrical Wire Cable Making Machine

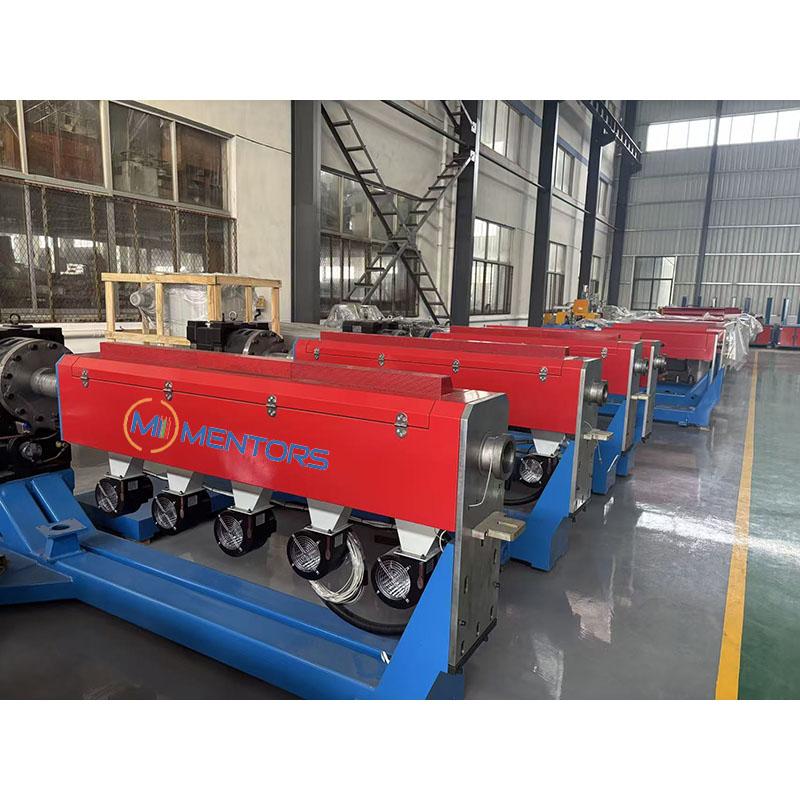

Cable Extruder is used for the insulation of wire and cable with PVC,PE, XLPE, LDPE etc.
Single layer, double layer and three layers are optional choices.
Description
1. Application:
This machine is used for making wires with PVC,PE or PP insulation.
2. Parameters:
| Model | Screw
Parameters |
Extrusion
Capacity(kg/h) |
Power
(kw) |
Finished
Wire Dia.(mm) |
Line
Speed (m/min) |
|||||
| Dia.
(mm) |
L/D
Ratio |
Rotate
Speed (r/min) |
PVC | LDPE | PP | Main
Motor Power(KW) |
Total
Power (KW) |
|||
| SY-70
Extrusion |
70 | 25:1 | 15-110 | 130 | 86 | 68 | 22-37 | 50 | 2-12 | 10-350 |
3.Advantages:
1)The concentricity of wire is more than 90%, with high precision ±0.03.
2)Barrel and screw is made of 38CRMOAIA alloy steel, which has high rigidity, good anti-corrosive performance and is rather durable.
3) It can be equipment with triple co-extrusion crosshead to produce three or double layers cable.
4)Electrical control:PLC with touch screen.
5)Each of the cooling section for body with one cooling fan. When temperature is too high, machine will stop heating then cooling fan will start work automatically.
6)The machine head is made of imported heat-resistant anti-corrosion alloy steel. After nitriding treatment, the surface is plated with hard chrome.
7)Temperature controlled: intelligent digital type, temperature can be set freely with range 0-399℃. Accuracy ±1℃, easily operation.
4.Delivery time: 45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
Click here to see the running video of Electrical Wire Cable Making Machine
