Copper Wire Tin Electroplating Equipment is used to manufacture tinned copper wire. The finished wire is widely used in the manufacture of cables.
Main feature:
1)Coating material: Pure tin (99.9%)
2)Coating thickness: 1-20um
3)Inlet wire diameter: 1.8-2.6mm(soft)
4)Production speed: 15m/s (Max.production speed)
1.Application:
Copper Wire Tin Electroplating Equipment is used to manufacture tinned copper wire. The finished wire is widely used in the manufacture of cables.It has good conductivity and high-frequency transmission performance and can provide stable and reliable signal transmission.
2.Parameters:
| Machine type | SY-10000.15m/s |
| Plating machine weight | 10000kg |
| Weight of after heating the liquid | 15000kg |
| Number of wire | one |
| Production speed | 15m/s (Max.production speed) |
| Wire material | copper |
| Inlet wire diameter | 1.8-2.6mm(soft) |
| Wire condition | Low oil pollution and non-oxidation, soft state |
| Coating material | Pure tin (99.9%) |
| Coating thickness | 1-20um |
| Total installed power | 170kw |
| Power supply voltage | 3*380/50Hz or customized |
| Maximum ambient temperature | 40-50°C |
| Noise level | 85dB (max) |
| Plating current | 2*5000A/10V |
| Degreasing current | 500/10V |
| Length * Width | 18000*9000mm (approximately) |
| Production height (cover open) | 3000mm (approximately) |
| Production height (cover closed) | 2700mm (approximately) |

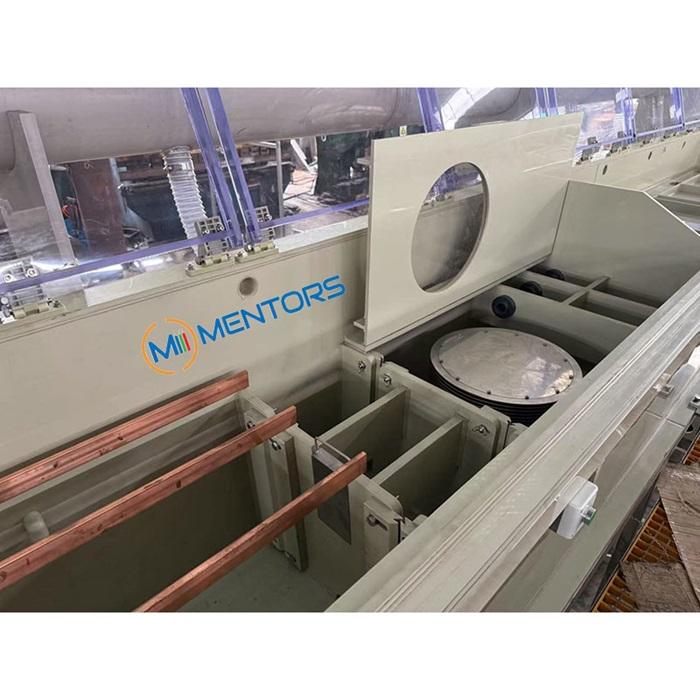

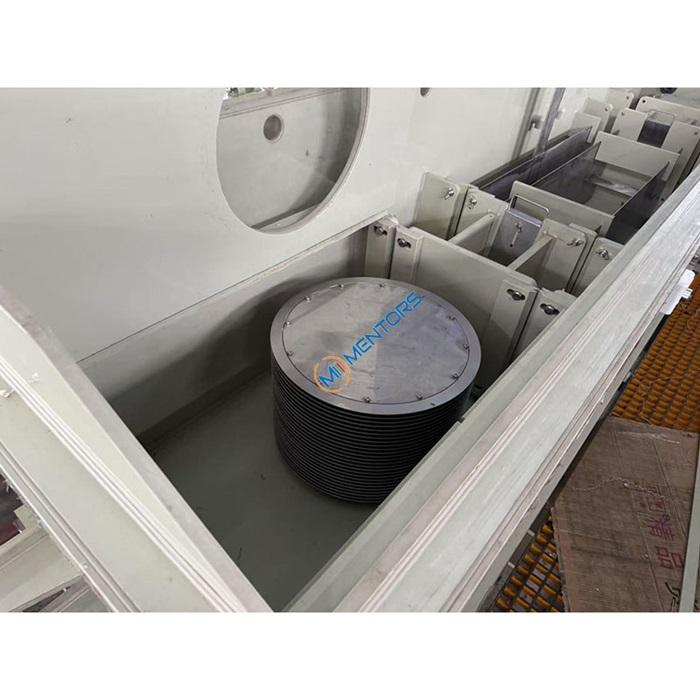

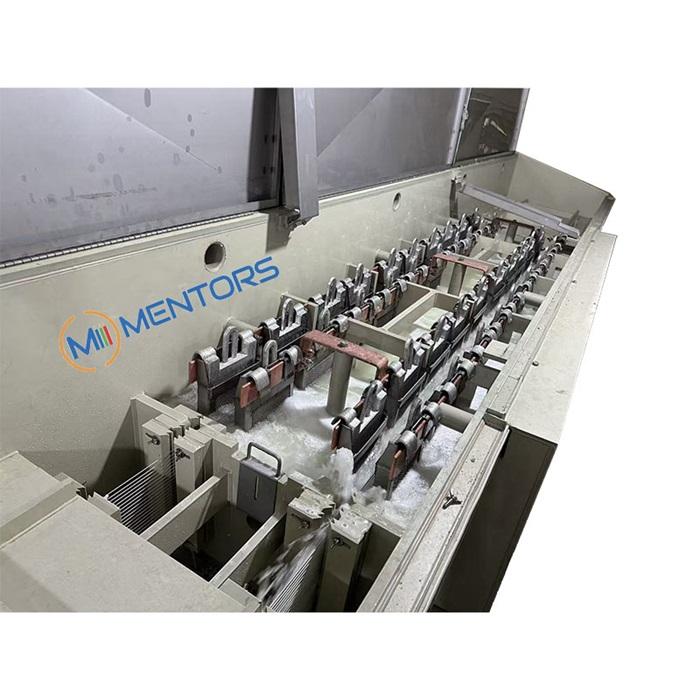

| Electroplating current rod groove diameter | 400mm.25 slots |
| Degreasing current rod groove diameter | 400mm.25 slots |
| Degreasing mother-slot | 1300L (total volume) Effective 1100L |
| Electroplated mother-slot | 5500L (total volume) Effective 5000L |
| Circulating flow | 1. Degreasing tank: 20m³/h
2. Pickling tank: 60L/min 3. Plating tank: 42m³/h *2 sets 4. Water washing tank: 60L/min |
| Liquid temperature | 1. Degreasing: 50°C
2. After degreasing, 5-stage countercurrent water washing: room temperature (the third wash is hot water wash: 50-60°C) 3. Pickling: room temperature 4. Plating: 50°C (electric heating) 5. 5-stage countercurrent water washing after electroplating: room temperature 6. Hot water temperature: 50-60°C |
3.Advantages:
1)Our equipment uses a controllable power supply, so that the tin plating efficiency is high, the finished product has good density, and the finished product after drawing is of excellent quality.

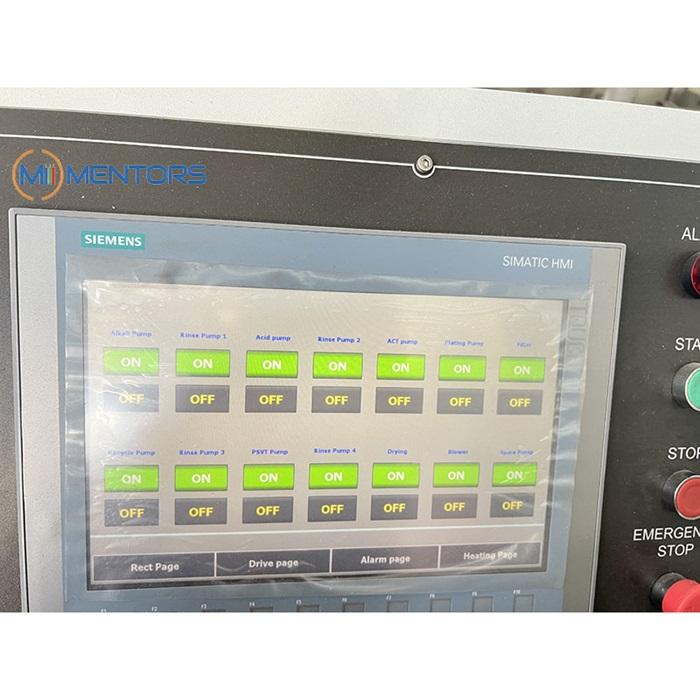

2)Automatically add potion, equipped with Ethernet.
3)After alkaline washing, it is washed with hot water, so that the surface of the tin plating front material is clean and the tin plating finished product has good density. After tin plating, it undergoes 2 hot water cleanings to clean the surface with acid, and the finished product is bright.

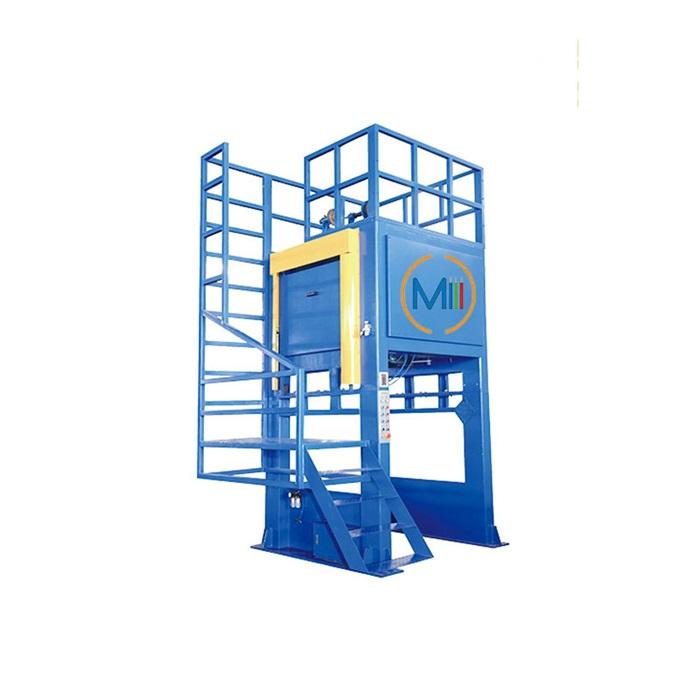

4)The drop coiler is equipped with a wire management device, which can hold 20% more weight per wire than its counterparts.
5)Our company uses chemical methods for wastewater treatment so that the equipment investment cost is low, the water can be reused, and 3,600 tons of water can be saved a year.
4.Delivery time: 60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12months since shipping date(exclude easily wearing part)
