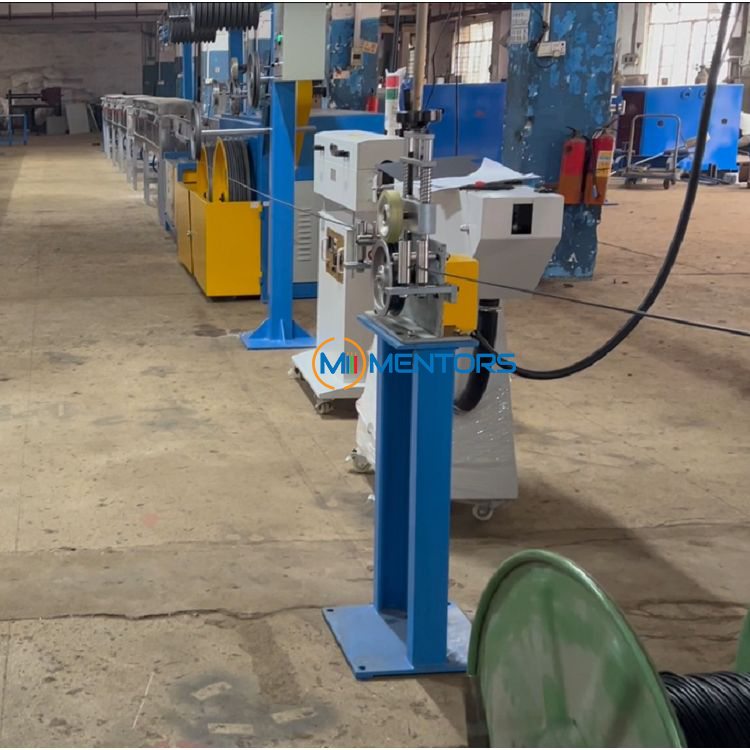

High Temperature Silicone Rubber Cable Extrusion Production Line
This production line is suitable for the extrusion of various high-temperature silicone cables.
Description
1. Application:
This production line is suitable for the extrusion of various high-temperature silicone cables.
2. Parameters:
| Model | SY-70 |
| Main machine power(kw) | 15 |
| Extrusion capacity(kg/h) | 80 |
| Screw diameter(mm) | 70 |
| Screw L/D ratio | 12:1 |
| Pay-off bobbin size(mm) | 400-630 |
| Conductor sizes(mm) | 1.5-6.0 |
| Finished cable sizes(mm) | 1.8-8.0 |

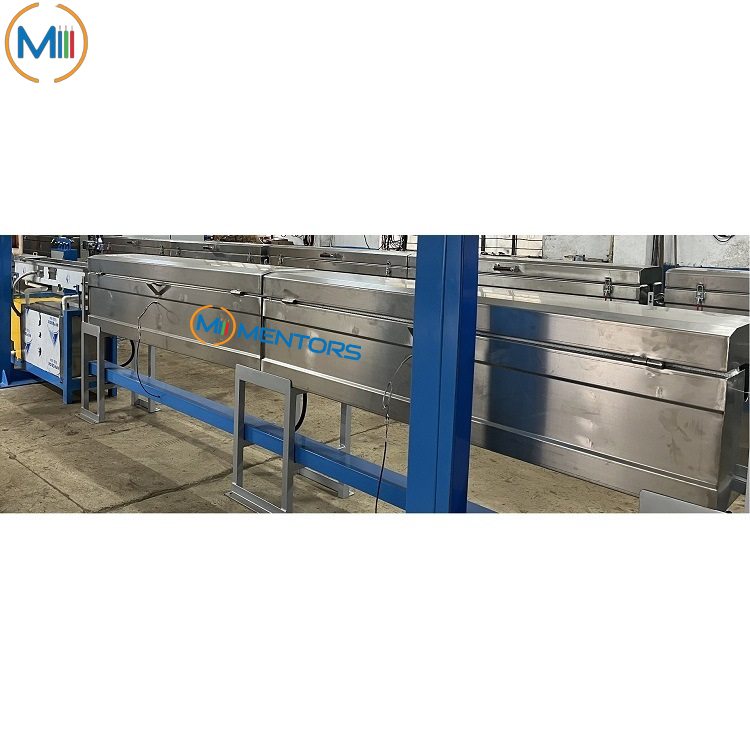

| Vulcanization tank length(m) | 16 |
| Heating power | 3 section 48kw |
| Traction motor(kw) | 4 |
| Production speed(m/min) | 10-200 |
| Take-up bobbin sizes(mm) | 400-630 |
3. Main Structure:
1. Drive Motor.
Generally, it is driven by a belt, and the screw is driven by a reduction gearbox. The reduction gearbox plays the role of decelerating and increasing the torque.
2. Speed Change Gearbox.
3. Hopper drying.
Hopper drying includes a vacuum suction device, and the vacuum suction feeder sucks the raw materials into the hopper, which is heated and dried by the hopper and prepared for compression.
4. Screw Cylinder.
5. Screw.
The screw consists of three sections: feeding section, compression section, and metering section.
6. Honeycomb Board.
7. Head Heating and Cooling Device (water cooling or air cooling).
4. Advantages:

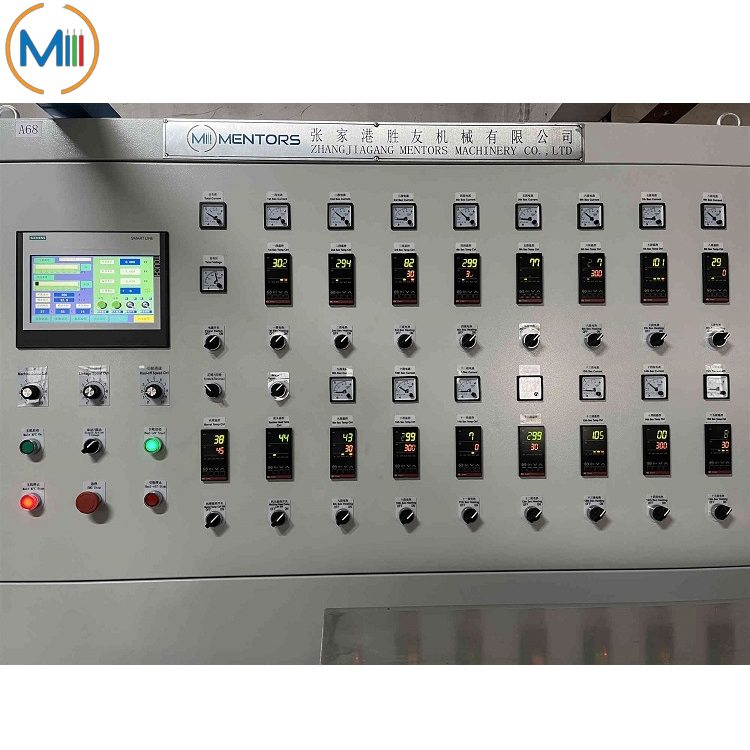

1. PLC + touch screen control and overall control, adjustment, monitor the production line parameters.
2. Silicone special screw, barrel, head, and eye lies prevent mold and supporting structure of the internal curing.
3. The configuration of a sophisticated detection feedback system to ensure accurate wire, greatly reducing costs.
