1.Introduction
The wire and cable industry plays a fundamental role in power transmission, construction, transportation, and industrial manufacturing. As global demand for electrical infrastructure continues to grow, manufacturers are required to produce conductors that meet increasingly strict standards in terms of electrical performance, mechanical strength, dimensional accuracy, and production efficiency.
Among conductor materials, aluminum has been widely adopted due to its light weight, good conductivity, cost advantages, and abundant availability. Aluminum conductors are commonly used in power cables, overhead transmission lines, building wiring, and various industrial cables. However, aluminum is also characterized by relatively low tensile strength and higher sensitivity to surface damage compared with copper. These characteristics place higher demands on processing equipment, especially during the wire drawing stage.
In this context, the Aluminum Rod Breakdown Machine has become a key equipment in aluminum wire processing. Its performance directly affects product quality, production stability, and overall manufacturing efficiency in wire and cable plants.
2.Overview of the Aluminum Rod Breakdown Machine
2.1 Aluminum Rod Breakdown Machine is a heavy-duty wire drawing machine designed to reduce aluminum rod into smaller-diameter aluminum wire suitable for subsequent processes such as annealing, stranding, or insulating.
2.2 In the aluminum wire production process, the breakdown machine serves as the first and most critical drawing stage. It transforms aluminum rod into intermediate or finished wire sizes through multiple drawing passes.
2.3 Compared with medium or fine wire drawing machines, aluminum rod breakdown machines operate with larger drawing forces, higher torque, and stricter requirements for mechanical strength and stability.
2.4 Unlike copper breakdown machines, aluminum rod breakdown machines must be specifically designed to accommodate the material characteristics of aluminum, including its softness, tendency to adhere to dies, and sensitivity to lubrication and cooling conditions.
3.Working Principle
3.1 The working principle of an Aluminum Rod Breakdown Machine is based on continuous multi-pass cold drawing.
3.2 The aluminum rod is first fed into the machine through the pay-off unit, where stable and smooth rod feeding is ensured.
3.3 The rod then passes through a series of drawing dies, each reducing the wire diameter by a controlled amount.
3.4 The drawing force is generated by rotating capstans or drums, which pull the aluminum wire through the dies.
3.5 During the drawing process, proper lubrication is applied to reduce friction between the wire and the dies, minimizing surface damage and die wear.
3.6 Cooling systems are used to control the temperature generated by deformation and friction, ensuring stable mechanical properties of the aluminum wire.
3.7 By precisely controlling drawing speed, reduction ratios, tension, and lubrication, the machine produces aluminum wire with consistent diameter, smooth surface quality, and stable mechanical performance.
4.Main Structural Components
An Aluminum Rod Breakdown Machine is composed of several key systems, each playing an essential role in overall performance:

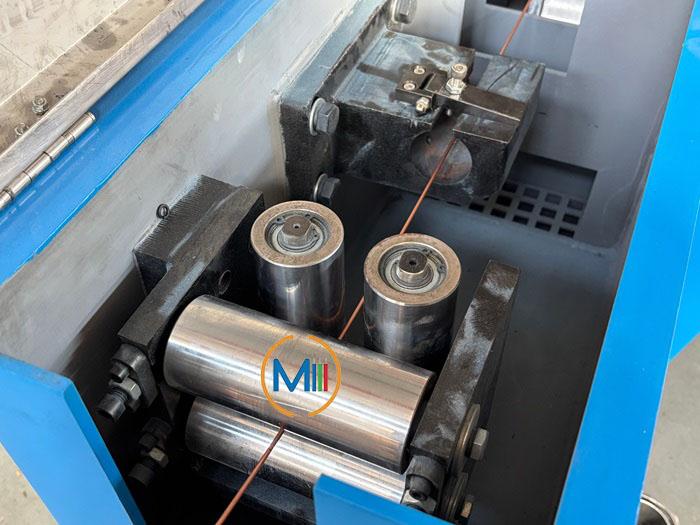

4.1 Pay-off Unit
The pay-off unit supports and feeds the aluminum rod into the machine. It ensures smooth rod unwinding and stable tension, preventing vibration or sudden loading that could lead to wire breakage.
4.2 Main Drawing Unit and Capstan System
The main drawing unit consists of multiple capstans or drawing drums arranged in sequence. These capstans provide the necessary drawing force and control the drawing speed for each pass.
4.3 Die Holder and Die System
The die holder securely positions the drawing dies and ensures precise alignment. High-quality dies and stable die holders are critical for achieving accurate wire diameter and surface finish.
4.4 Transmission System
The transmission system transfers power from the motor to the capstans through gearboxes and shafts. A robust transmission system ensures stable operation under high load conditions.
4.5 Lubrication and Cooling System
This system supplies lubricant to the dies and cools the wire and drawing components. Proper lubrication and cooling are essential to prevent overheating, reduce friction, and improve wire quality.

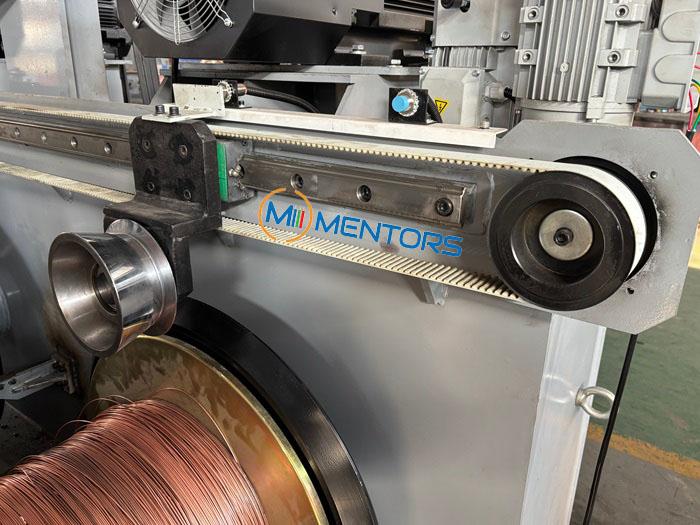

4.6 Take-up System
The take-up unit collects the drawn aluminum wire in coils or on spools, ensuring orderly winding and stable tension for downstream processes.
4.7 Electrical Control and Safety System
The electrical control system manages machine operation, speed regulation, and interlocks, while safety devices protect both operators and equipment during abnormal conditions.
5.Technical Characteristics
Modern aluminum rod breakdown machines incorporate a range of technical features to meet industrial production requirements:
5.1 First, the machine frame and main components are designed with high-strength materials to withstand continuous high-load operation.
5.2 Structural rigidity is essential for maintaining alignment and reducing vibration.
5.3 Second, precise diameter control is achieved through optimized reduction schedules, stable drawing speeds, and accurate die positioning.
5.4 This ensures uniform wire size throughout long production runs.
5.5 Third, efficient transmission design improves power utilization and reduces energy consumption, contributing to lower operating costs.
5.6 In addition, advanced lubrication and cooling systems help maintain stable processing conditions, reducing surface defects and extending die service life.
5.7 Finally, aluminum rod breakdown machines are designed to accommodate different rod specifications and finished wire sizes, providing flexibility for various production needs.
6.Advantages in Wire and Cable Production
The application of Aluminum Rod Breakdown Machine brings significant benefits to wire and cable manufacturers.
6.1 High production efficiency is one of the most notable advantages. The continuous drawing process allows large volumes of aluminum wire to be produced with consistent quality.
6.2 Stable surface quality is another key benefit. Proper drawing conditions reduce scratches, cracks, and other defects, which is critical for subsequent insulation or stranding processes.
6.3 By minimizing wire breakage and dimensional deviation, breakdown machines help reduce material waste and improve yield rates. This directly lowers production costs and enhances overall competitiveness.
6.4 Furthermore, aluminum wire produced by breakdown machines is well-suited for downstream processes such as annealing, stranding, and extrusion, supporting integrated and continuous production lines.
7.Operating Precautions
7.1 To ensure stable operation and product quality, several precautions should be observed when using an aluminum rod breakdown machine.
7.2 The quality of the aluminum rod is fundamental. Rods should have consistent diameter, clean surfaces, and uniform material properties.
7.3 Drawing dies must be properly selected and maintained. Worn or damaged dies can lead to poor surface quality and dimensional inconsistency.
7.4 Lubrication management is critical. The lubricant should be clean, adequately supplied, and replaced or filtered regularly to maintain effectiveness.
7.5 Operators should follow standardized procedures during start-up, normal operation, and shutdown to avoid sudden load changes and mechanical stress.
7.6 Abnormal conditions such as unusual noise, vibration, or temperature rise should be addressed immediately to prevent equipment damage.
8.Maintenance and Equipment Management
8.1 Regular maintenance is essential for ensuring long-term stable operation of aluminum rod breakdown machines.
8.2 Key components such as bearings, gears, and capstans should be inspected routinely and serviced according to maintenance schedules.
8.3 Wear parts must be replaced in time to prevent secondary damage.
8.4 Electrical systems and control components should be checked periodically to ensure reliable operation and accurate control.
8.5 Good maintenance practices not only reduce unexpected downtime but also extend the service life of the machine and maintain consistent product quality.
9.Conclusion
As a core piece of equipment in aluminum wire production, the Aluminum Rod Breakdown Machine plays a decisive role in the wire and cable industry. Its performance affects not only product quality but also production efficiency, operating costs, and long-term reliability.
By selecting suitable equipment, operating it correctly, and maintaining it properly, manufacturers can ensure stable production and meet the evolving demands of the wire and cable market.
