Physical Foaming Cable Wire Extrusion Machine
Apply to all kinds of high-frequency cable, communication cable, coaxial cable, RF(radio-frequency) cable, RG, and other core wire extrusion.
Description
1. Application:
Apply to all kinds of high-frequency cable, communication cable, coaxial cable, RF(radio-frequency) cable, RG, and other core wire extrusion.
2. Parameters:
| Model | SY-90+35 |
| Pay-off Type | The active or passive pay-off |
| Pay-off bobbin dia.(mm) | 800-1000 |
| Single wire diameter(mm) | 1.0-5.0 |
| Dia. Of insulation wire(mm) | 5.0-45.0 |

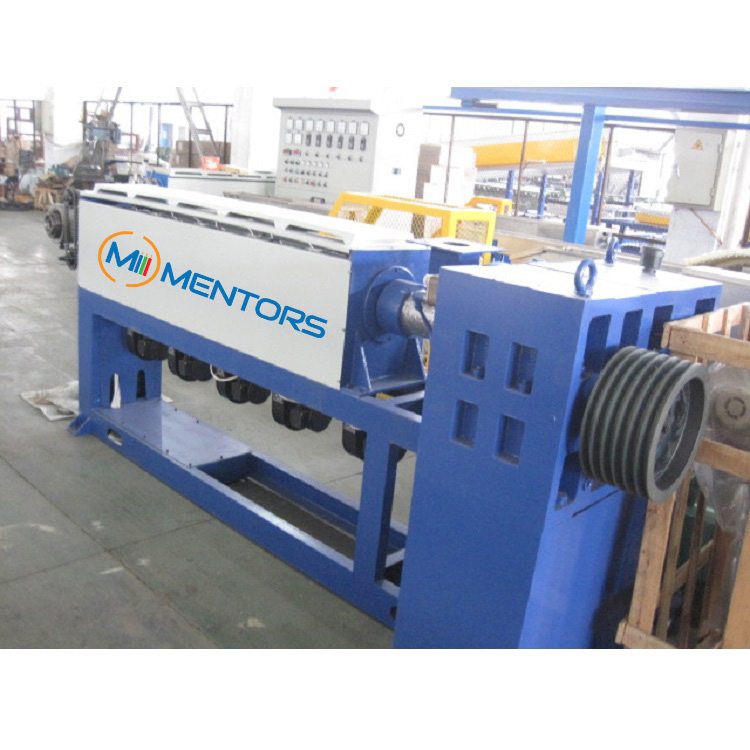

| Screw diameter | 90 |
| Screw L: D | 36:1 special-use screw |
| Extrusion capacity (kg/h) | 150 |
| Main motor | 60HP |
| Cooling length(m) | 45 |

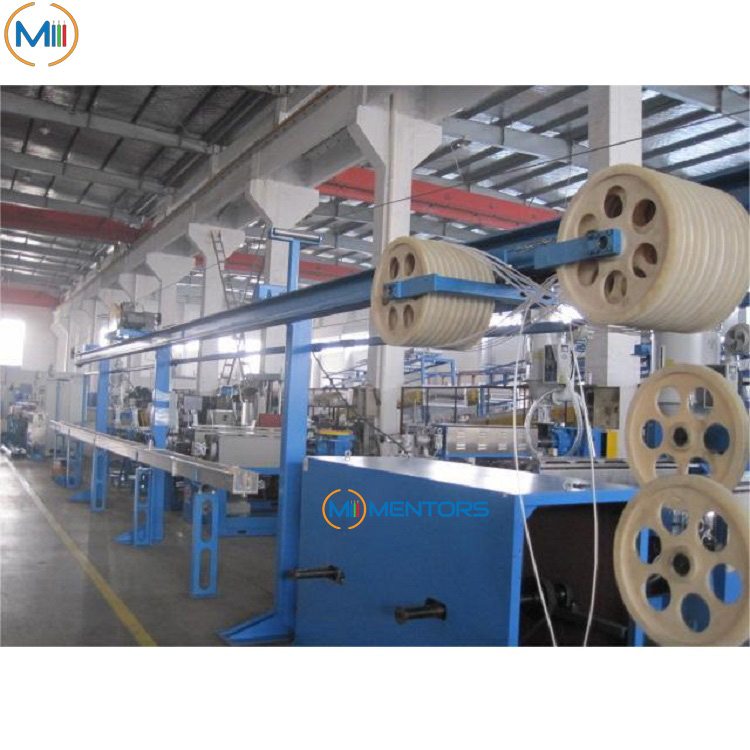

| Haul-off wheel dia.(mm) | 1000 |
| Haul-off power | Double haul-off 7.5HP |
| line speed(m/min) | 10-100 |

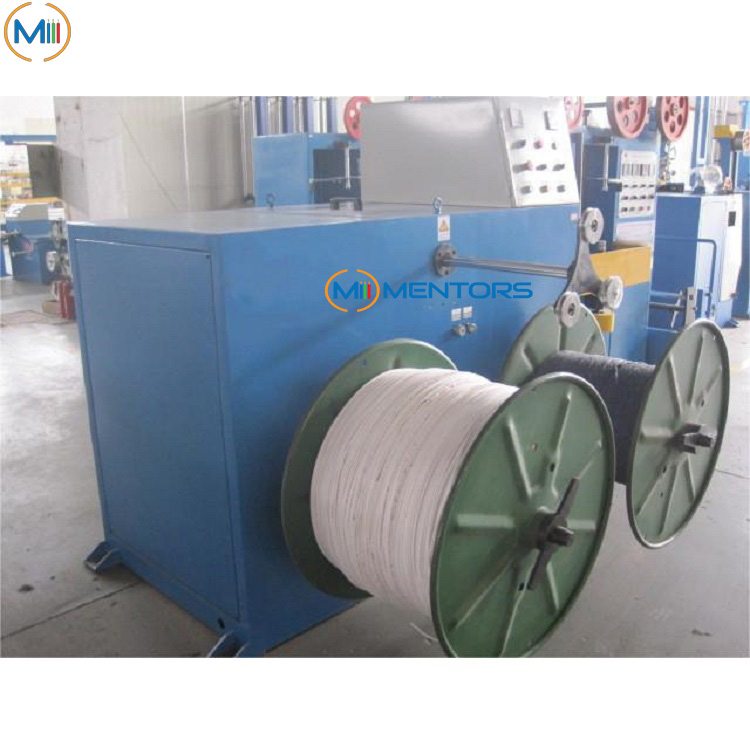

| Taking up type | Double spools |
| Taking up bobbin dia.(mm) | 800-1000 |

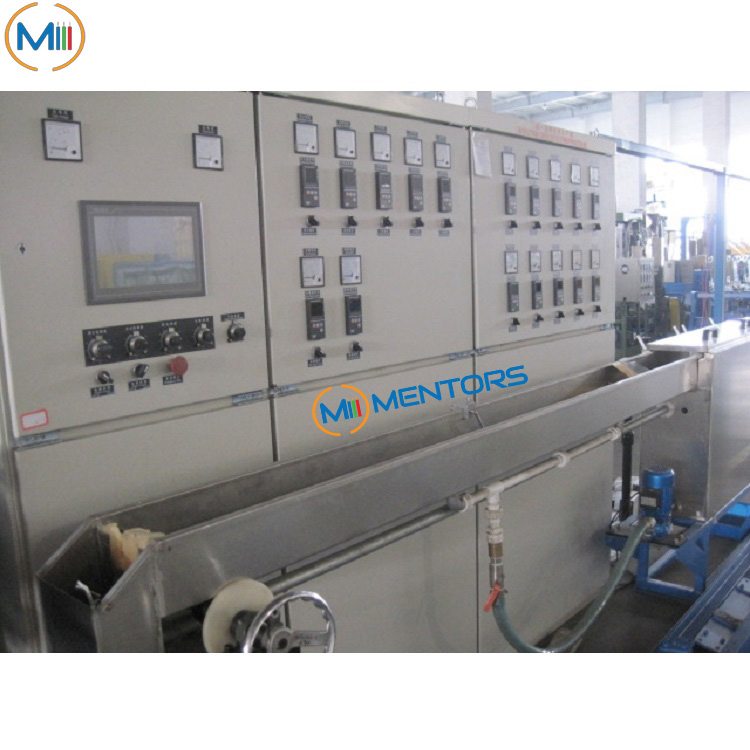

| Electricity control | Inverter +PLC touch screen |
3. Advantages:
1. High productivity: Optimize the design of the screw, the screw is durable; not take off chrome, non-conglutination, and color-change quickly.
2. Crosshead: special physical foaming crosshead.
3. Operate easily: Touch screen, both provide Chinese/English operation interface, auto-control, and auto-feedback, operate easily.
