(1) Inlet wire size:2.6-3.0mm (the diameter of the round wire is determined according to the customer's wire)
(2) Machine size: 23m L x 2m W x 3.5m H

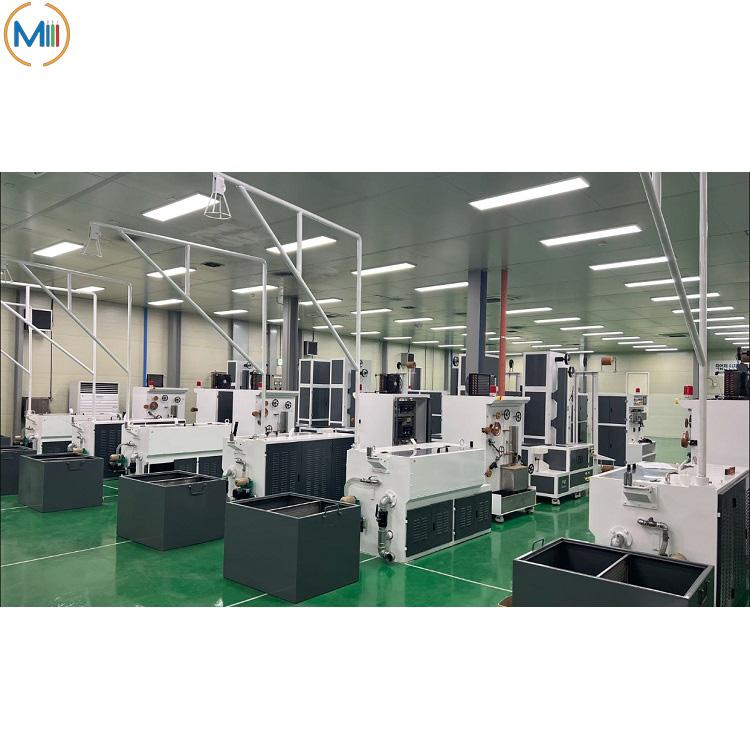

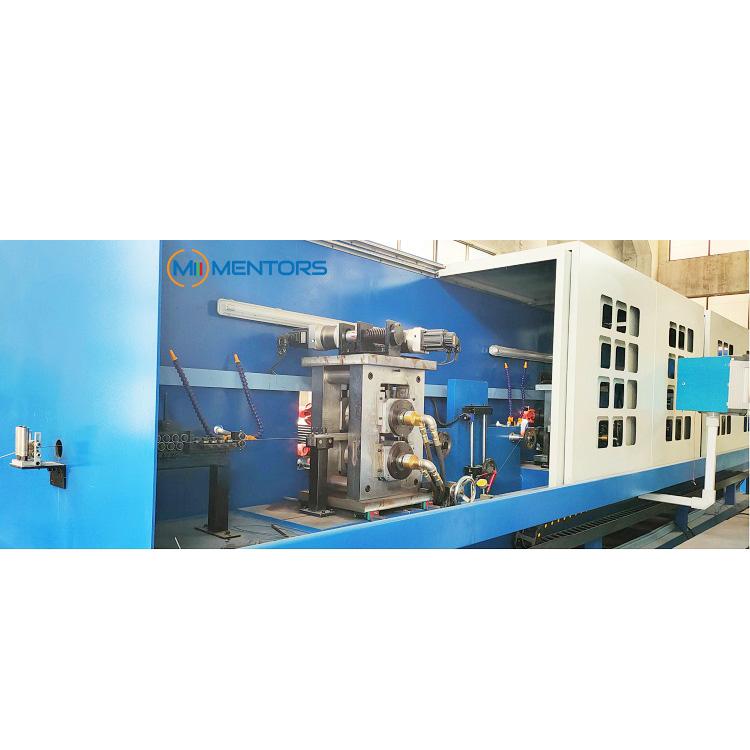

(3) Main Machine composition: Pay-off machine, Wire drawing machine,4 continuous flat rolling mill, Tinning machine, Take-up machine.
1. Application:
This machine is used to process solar PV ribbons and converging strips.
2. Feature:
(1) Inlet wire size:2.6-3.0mm (the diameter of the round wire is determined according to the customer’s wire)
(2) Machine size: 23m L x 2m W x 3.5m H
(3) Main Machine composition: Pay-off machine, Wire drawing machine,4 continuous flat rolling mill, Tinning machine, Take-up machine.
3. Parameter:
| Mechanically Rolled Materials | Copper (material provided by the customer, calculate the rolling ratio) |
| Mechanical speed | Working speed: 60m/min-120m/min, mechanical speed: 60-150m/min |
| Weight | 9 tons |
| Voltage | 380V |
| Total power | 120KW |
| Mill power | 15kw+ reducer |
| Inlet size | 2.6–3.0mm (the diameter of the round wire is determined according to the customer’s wire) |
| Finished size | Width: 4-8.mm Tolerance: ±0.05mm |
| Thickness: 0.25-0.3mm Tolerance: ±0.01mm |
4. Machine Characteristic:

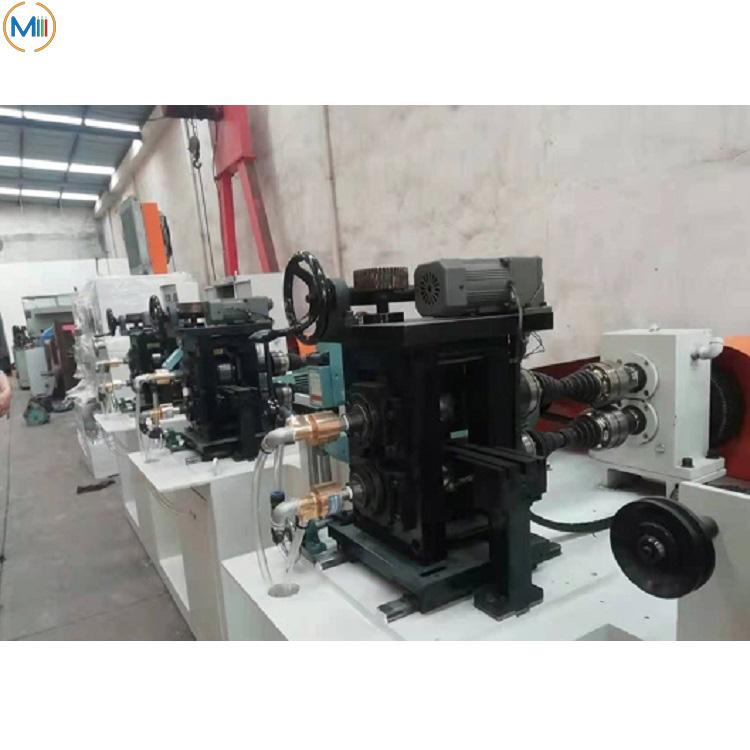

(1) The body of the calendar is welded and formed by Q235. It is annealed to eliminate internal stress and has no deformation.
(2) The tinning machine can automatically track the production speed of the rolling mill and perform tin plating at the same time as flattening. The finished product outlet is equipped with a laser inspection set to automatically control the last two rolling mills.
(3) 1000W servo motor is used as the wire traversing power, and the gearbox drives the ball screw to control the movement of the wire traverse pole. The precision slide rail is assembled in parallel, and the response is sensitive. The 4 sliders support the traversing stable and can be used. Ensure good traversing quality.
5. Delivery time: 60-90 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
