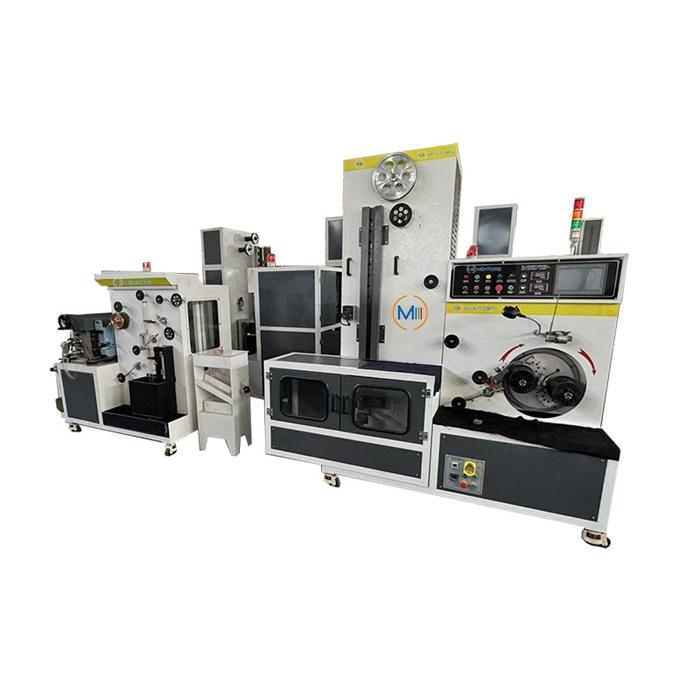

This machine is used for PV ribbon ranging from 0.8-1.0mm to 0.18-0.37mm.
Main feature:
1)Number of running substrates: double wire
2)Inlet wire diameter: 0.80-1.00mm, outlet wire:0.18-0.37mm
3)Finish wire diameter: 0.2-0.4mm
4)Plating thickness(double-layer): 15-40μm
Category: Solar PV Ribbon Wire Machine, Solar PV Ribbon and Round Wire Machine, PV Solar Energy System
1.Application:

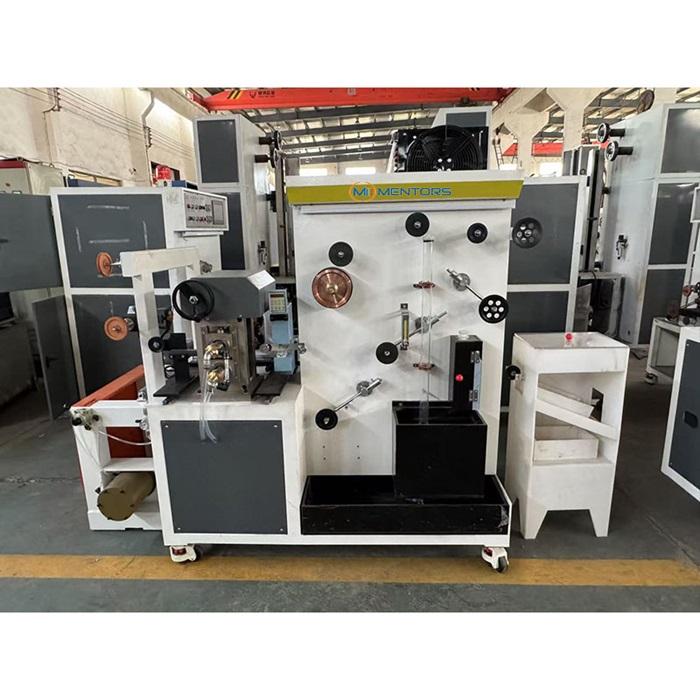

This machine is used for Solar Flat PV ribbon ranging from 0.6mm to 1.6mm.
2.Parameters:
| Max speed | 170-220m/min |
| Annealing power supply power | 8KW |
| Outer diameter of rolling wheel | 106mm |
| Rated speed | 250m/min |
| Input wire diameter | Φ0.13~Φ0.40mm |
| Output flat wire width | 0.60—1.60(Max 1.80) mm |
| Output flat wire tolerance | ±0.01 |
| Output flat wire thickness | 0.10-0.30mm |
| Plating thickness（double-layer） | 15-40μm |
| Elongation | 30~40% |
| Vickers hardness | about 45 degrees |
| Yield strength | about 75 (0.12X0.35) |
3.Advantages:

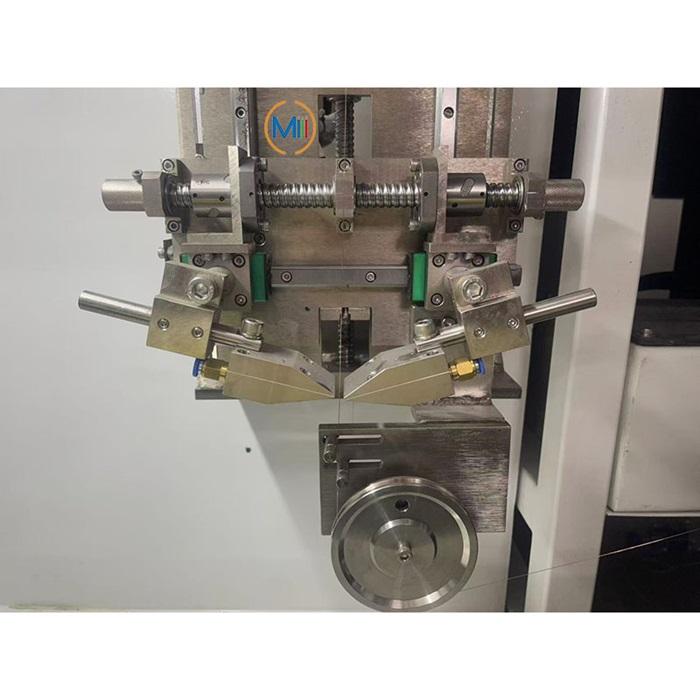

1)The wire spacing position is fully computer controlled and can be adjusted online, one-click supplement, reduce the wire size, and precisely adjust the constant tension.
2)Omega laser diameter measuring instrument measurement, online rapid measurement feedback, automatic width adjustment.

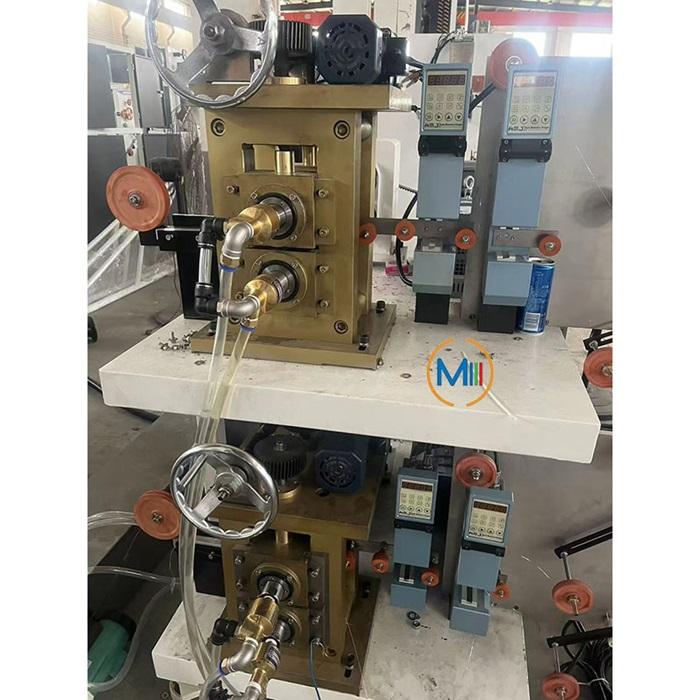

3)The Rolling mill wheel is made of imported alloy, military technology, ultra-high precision, and long-lasting durability.
4.Delivery time: 60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12months since shipping date(exclude easily wearing part)
