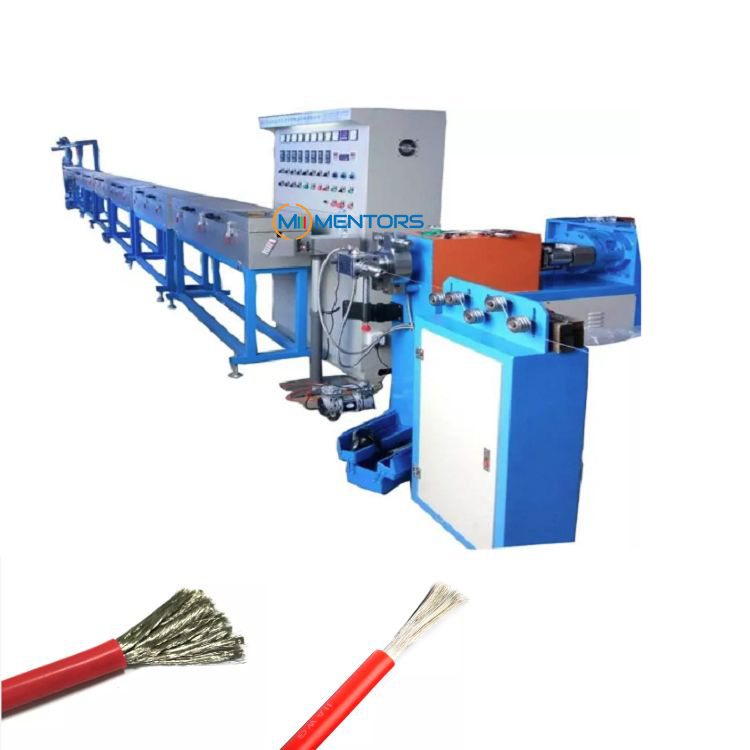

Silicone Rubber Extruding Machine
It can produce all kinds of high-temperature silicone rubber cables and high-temperature sheaths.
Description
1. Application:
It can produce all kinds of high-temperature silicone rubber cables and high-temperature sheaths.
2. Parameters:
| model | SY-90 |
| Main machine power(kw) | 22 |
| Extrusion capacity(kg/h) | 135 |
| Screw diameter(mm) | 45 |
| Screw L/D ratio | 14:1 |
| Pay-off bobbin size(mm) | 400-630 |
| Conductor sizes(mm) | 2.1-10.0 |
| Finished cable sizes(mm) | 3.0-12.0 |
| Vulcanization tank length(m) | 24 |
| Heating power | 6 section 72kw |

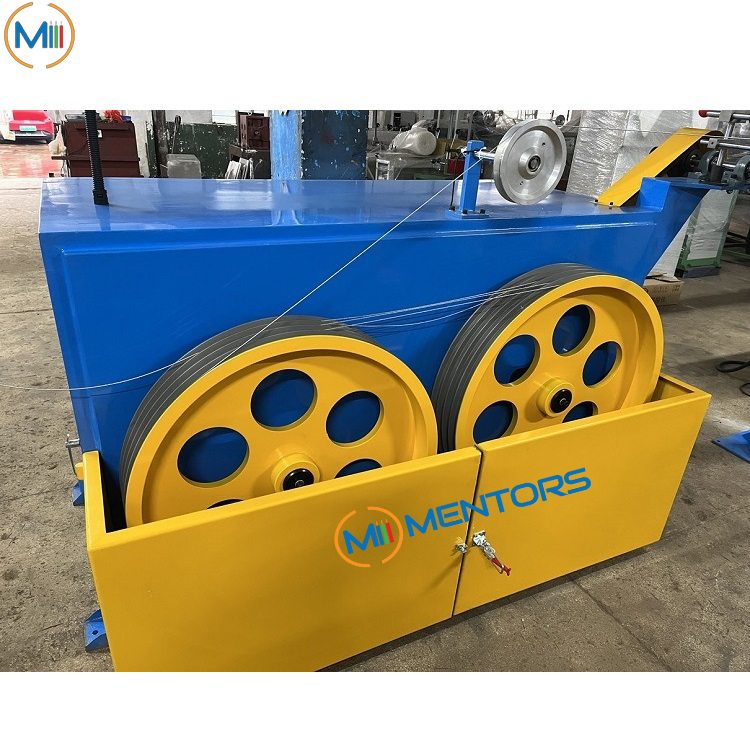

| Traction motor(kw) | 7.5 |
| Production speed(m/min) | 4-40 |
| Take-up bobbin sizes(mm) | 1250-1600 |
3. Product Description：
The 90 silicone cable extrusion production line is one of the cable processing equipment designed by our factory.
This production line can provide the best precision in cable processing and has the best working reliability and safety.
Applicable conductor core diameter φ1.5mm-φ8.0mm, complete outer diameter φ3.0mm-φ11.0mm, the center height of the production line is 1000mm, and the maximum extrusion line speed is 100m/min. This machine is a special equipment for producing silicone cables, which can produce cables with silicone rubber insulation.
4. Advantages:
1. The whole line is controlled by PLC with a human-machine interaction interface. Digital control techniques and PLC programs make the entire control system dependable and flexible.
2. The whole line is adopted the advanced detecting system to make sure product quality and high efficiency.
3. With precision testing feedback system to ensure accurate wire diameter so as to reduce cost.
