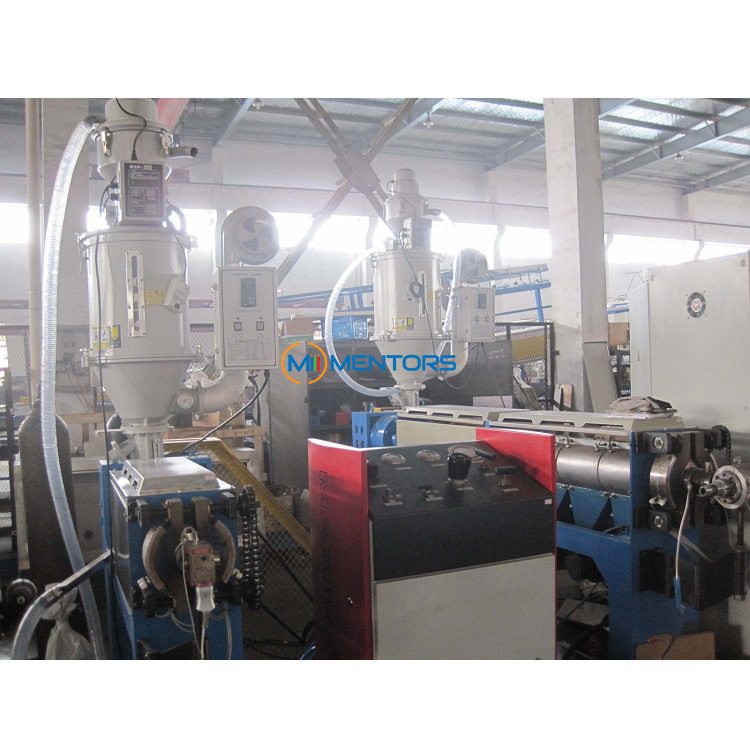

Teflon Wire Extrusion Line
Apply Teflon(fluorine plastic), high-temperature wire, and all kinds of insulation and jacket extrusion.
Description
1. Application:
Apply Teflon(fluorine plastic), high-temperature wire, and all kinds of insulation and jacket extrusion.
2. Parameters:
| Type | SY-65 |
| Core diameter (mm) | 2-8 |
| Screw length/diameter | 25:1 |
| Temperature control | 4+2 |
| Heating power(kw) | 25 |
| Main servo motor(kw) | 25 |

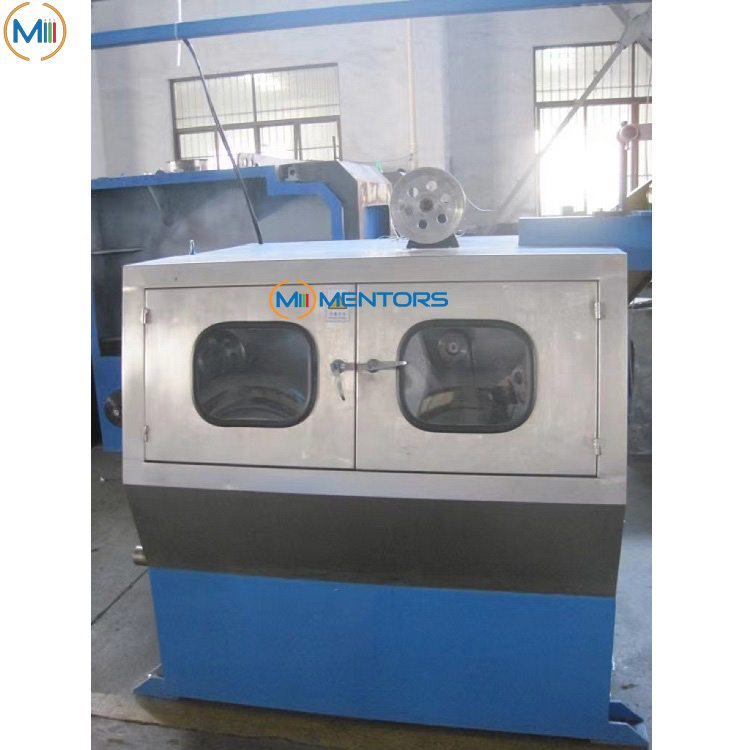

| Traction servo motor(kw) | 3.7 |
| Max extrusion capacity(kg/h) | 100 |
| Max line speed(m/min) | 180 |

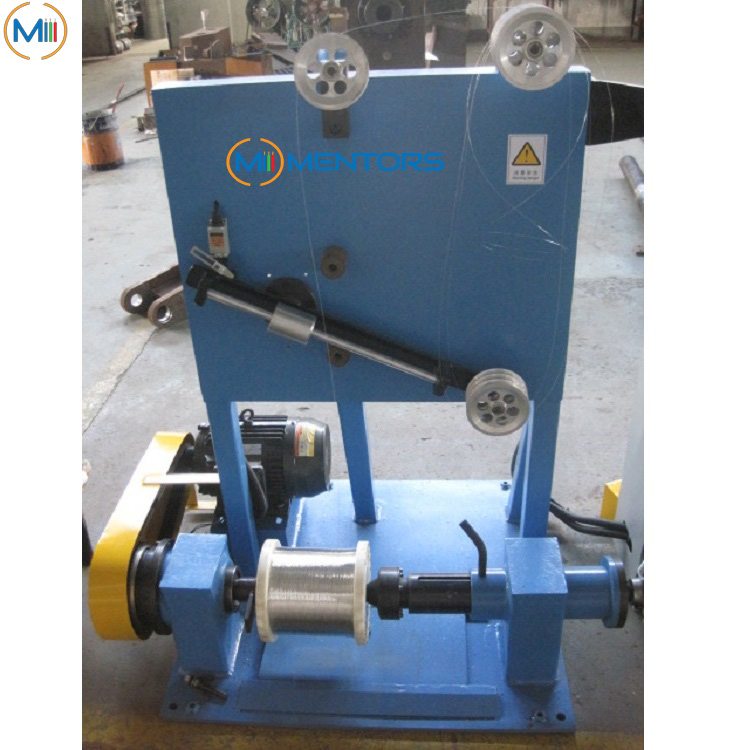

| Pay-off | Shaft active pay-off 300-500 |
| Take-up | 400-630 shaft take-up machine with motor;3kw+inverter+screw traversing |
| Size (m) | 20×2.5×2.1 |
| Weight (T) | 9.5 |
3. Advantages:
1. Screw barrel adopts high-temperature corrosion of JG-113 or better performance of HC-276, heater adopts copper alloy heaters.
2. Taiwan plasma uses a pre-processor to complete the process of online printing, which greatly increases productivity.
