500 Rigid Frame Stranding Machine

Home Stranding Machine, Bunching Machine Rigid Frame Stranding Machine 500 Rigid Frame Stranding Machine

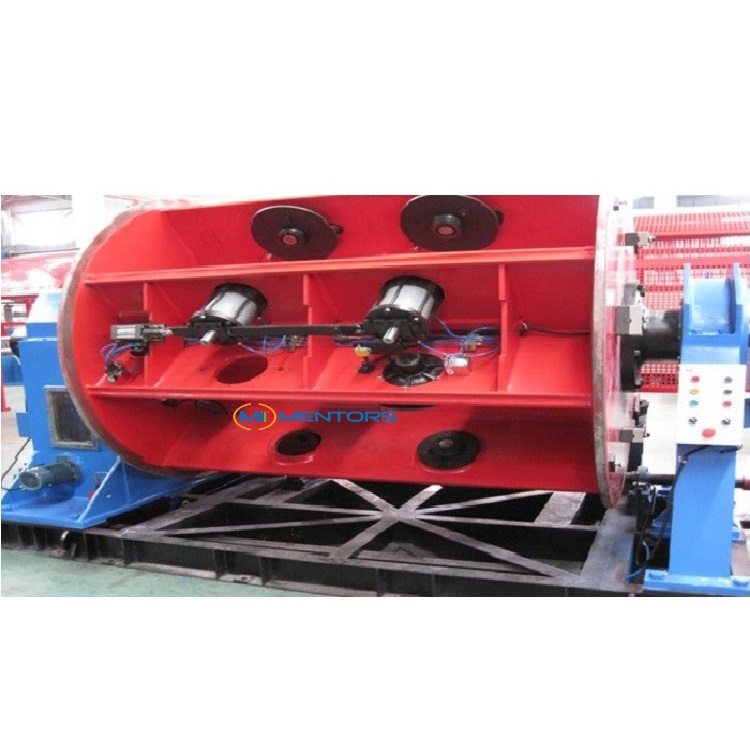

500 Rigid Frame Stranding Machine

This machine's tightening device and Pneumatic means all operated by manual

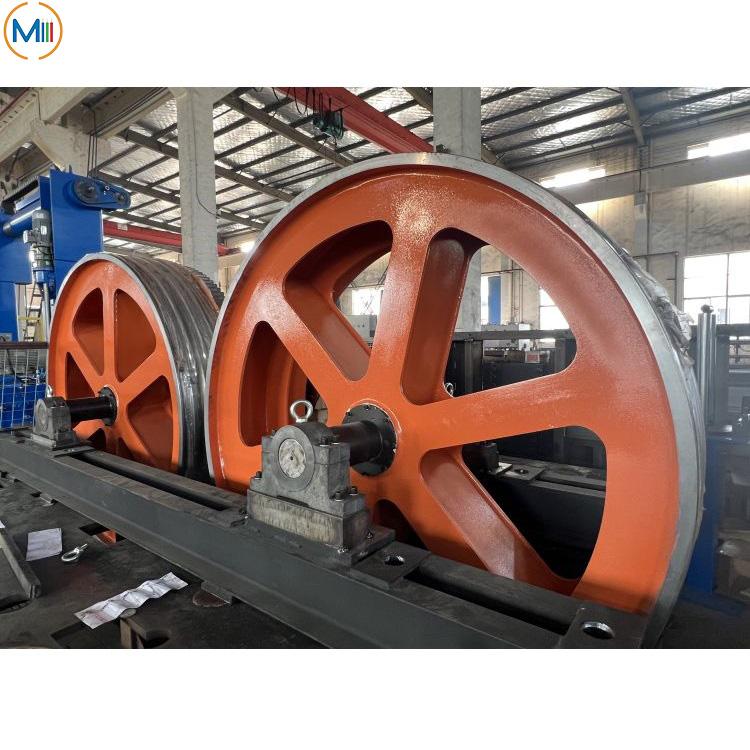

It uses double driving, double traction, one wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out

The gear box's gear using hard-toothed surface grinding, so it has high precision, the noise is less than 80Db.

Rigid Frame Stranding Machine, Stranding Machine, Bunching Machine2022-09-22m90

Description

1. Application:

500 Rigid Frame Stranding Machine is suitable for stranding long length and section aluminum, bare copper,aluminum alloy, aluminum cable steel reinforcing wires

to produce the following power cables: sector shaped conductors, round compacted,single core prespiralled.

2.Parameters:

Machine SY-KJ500  Stranding Machine
Standing single wire Dia.(mm) Copper Φ1.50-Φ4.50
  Al alloy Φ1.80-Φ5.00
  Aluminum Φ1.80-Φ5.00
Max.cage rotate speed(rmp) 6 Bobbins 208
  12 Bobbins 187
  18 Bobbins 151
  127 117

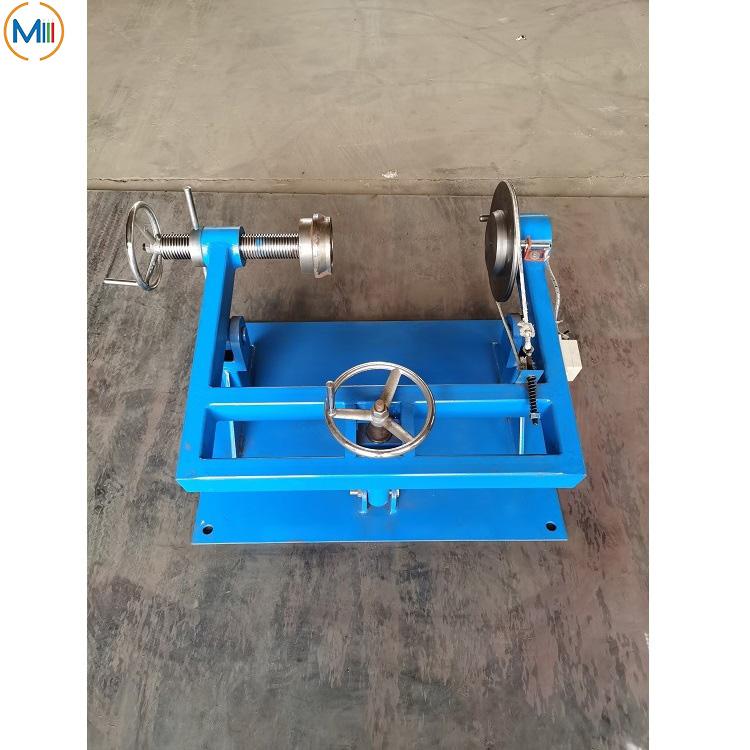

Pay-off reel in cage PND500
Central pay-off reel PND500-PND2000
Take-up reel PND1600-PND2500
Control type PLC+touch screen

3.Advantages:

1).Whole welding instead of separate welding.

2).One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out. The maximum pulling force is 15T. Each reel is equipped with an advanced broken wire detector, allowing to stop the machine automatically in case of broken wire.

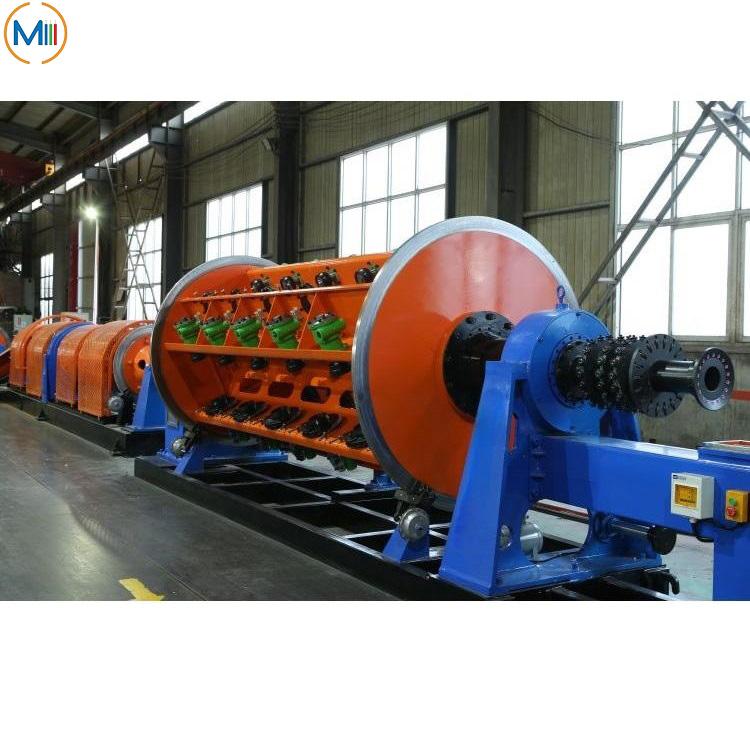

3).Reels are arranged quartering around the cages. The centralized side loading system can increase efficiency much more,the equipment has high-powered, high speed.

4.Delivery time: 90-120 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Rigid Frame Stranding Machine
