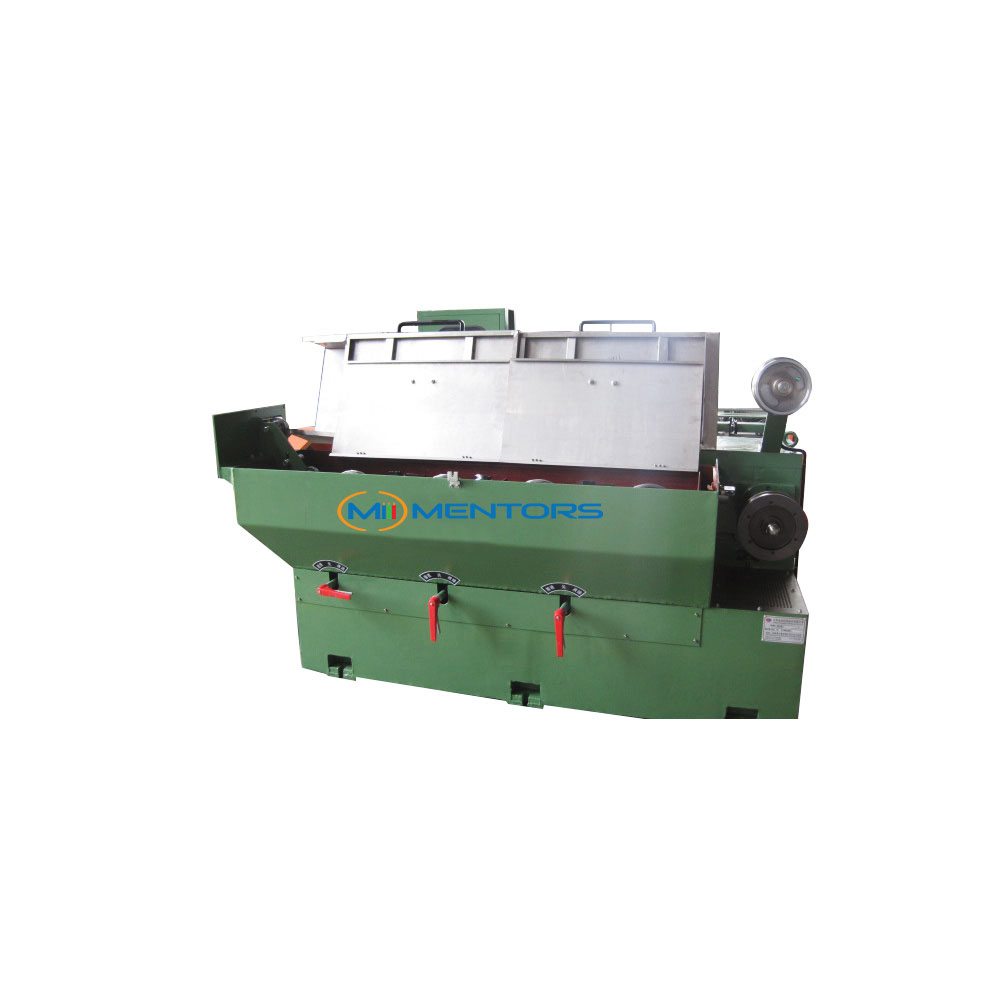

Aluminum Alloy Wire Drawing Machine

This machine has simple structure in linear type and is easy in installation and maintenance.

Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

Main feature:

1) Max.Dies Qty: 13

2) Outlet wire size: 0.65-1.6 mm

3) Max speed: 2000 m/min

1. Application:

Aluminum Alloy Wire Drawing Machine is mainly used to drawing Aluminum Alloy wire from 2.5-3.5 mm to 0.65-1.6 mm.

2.Parameters:

Machine type	SY-13DLH
Control system	PLC

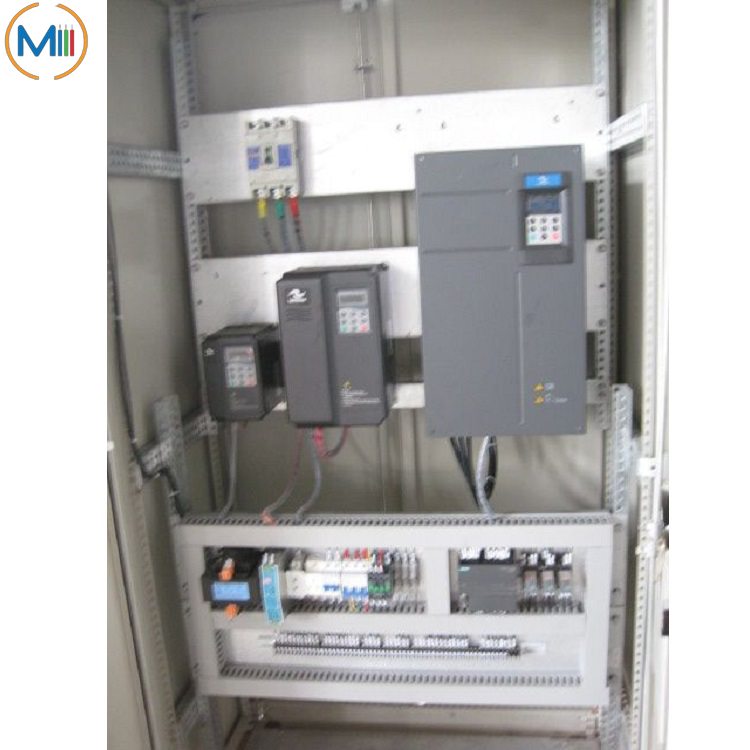

Inverter control	Two inverters control
Drawing dies No./max.	13
Inlet diameter	Ø 2.6- 3.0 mm
Out diameter	Ø 0.65- 1.6 mm
Drawing line speed /max	2000 m/min
Slip ratio of m/c	20%
Fix speed capstan slip ratio	15.5%
Frame	Ironed cast
Capstan	Carbon fiber plasma capstan
Main motor	55 kw
Spooler motor	11 kw
Fix speed capstan dia.	Ø 250 mm
Spool bobbin size	Ø 500 mm -630 mm

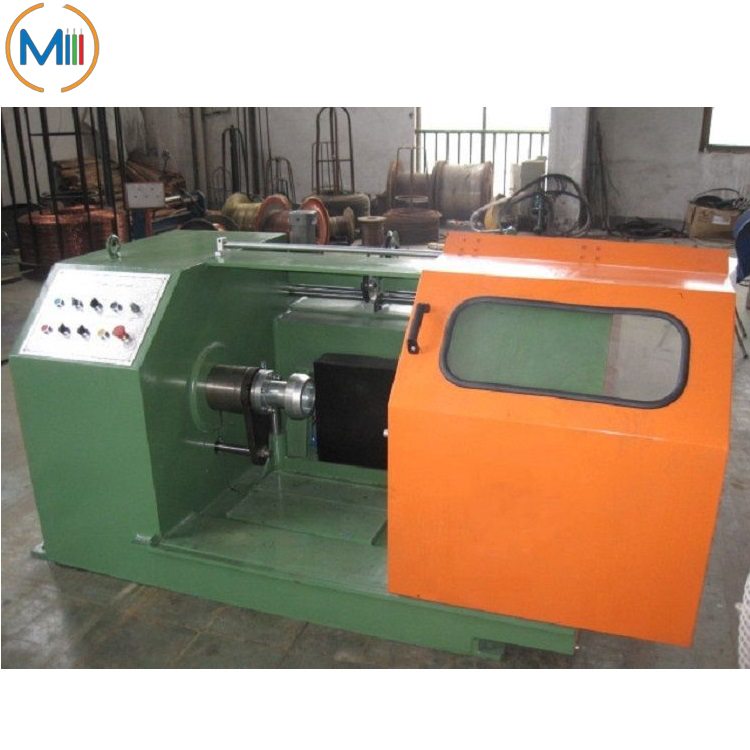

Optional take-up machine	1-Drop coiler 2-Annealing part 3-Dual-spool take-up

3.Advantages:

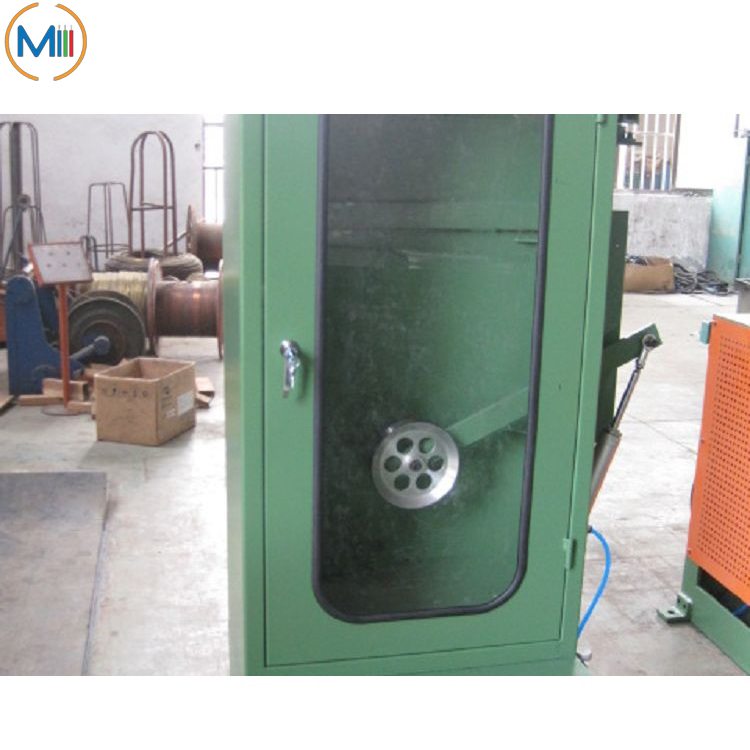

1. Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.

2. Machine’s body and other key components and parts are produced by our own factory, quality is reliable.

3. High tension durably flat belt gain convenient replacement and low noise in operating.

4. Using electronic components of international well-known manufactures.

4.Delivery time: 45-60 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)
