Galvanized Wire Drawing Machine

Home Single Wire Drawing Machine Galvanized Wire Drawing Machine

Galvanized Wire Drawing Machine

It has the advantages of fast production speed, high processing accuracy and easy operation.

It has been a more popular metal wire processing equipment.

Main feature:

1) Max.Dies Qty: 24

2) Outlet wire size: 0.3-0.6mm

3) Max speed: 500m/min

Single Wire Drawing Machine, Steel Wire Drawing Machine2022-10-11m90

Description

1. Application:

Galvanized Wire Drawing Machine is used for drawing S.S wire from 0.6-1.0mm to 0.12mm-0.30mm.

2.Parameters:

Machine type SY-24B.1

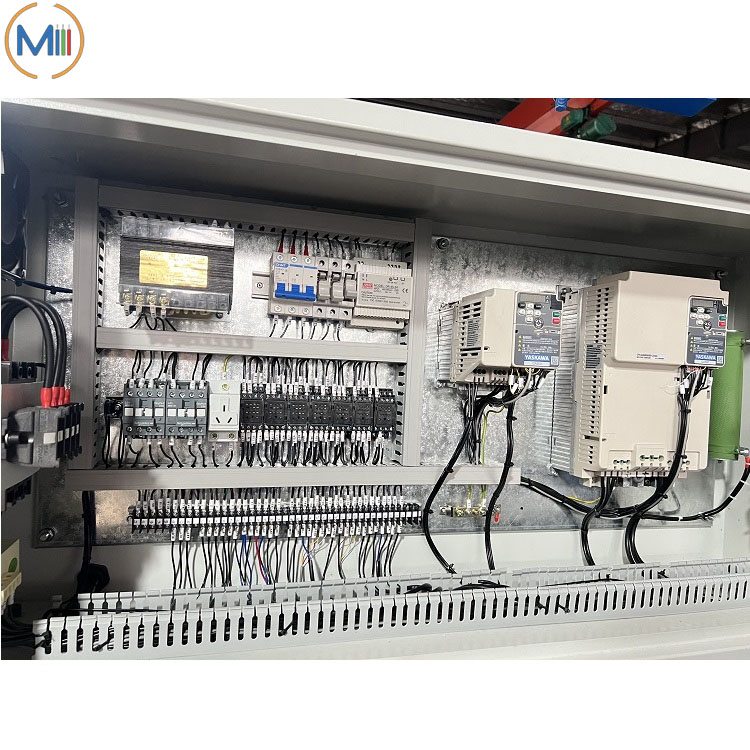

Inverter control Dual Inverter control
Drawing dies No./Max. 24
Inlet diameter 0.50-1.20mm
Outlet diameter 0.30–0.60mm
Drawing line speed 500m/min
Main motor 5.5/7.5KW
Take-up motor 4KW
Spool bobbin size Φ300

or according to customers requirements

Traversing unit Stepping motor
Transmission type Teeth belt + Flat belt

3.Advantages:

1.Fine quality finished wire, smooth surface and uniform wire dia.

2.PLC+ working speed can be adjusted by inverter control,more convenient to be operated.

3.The fully enclosed protection system has good safety;the air tension tuning is adopted to ensure stable drawing.

4. Easy to operate, one person can operate multiple machines at the same time.

5. Full immersion lubrication system, driven by a belt, constant tension, low noise.

6. Stepper motor traverses, the spacing is adjustable, and the traverse is stable.

7. Galvanized Wire Drawing Machine is equipped with tangled wire protection device, the machine will stop automatically if the wire is disordered or broken.

4.Delivery time: 30-45 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Steel Wire Drawing Machine
