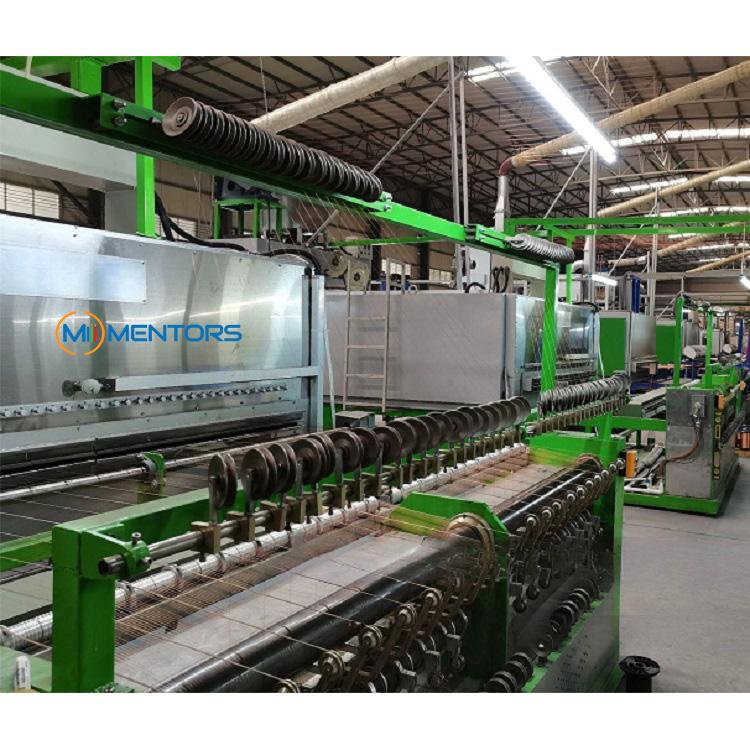

Aluminum Wire Enameling Machine
Feature:
(1) Wire Range: 0.3-0.6mm
(2) Felt Painting Methods
(3) Number of Production Heads: 40 Heads
(4) Machine Total Power: 120KW
(5) Passes of coating enamel: Single coated 8passes, Compound 6 + 2 lanes
Description
1. Application:
This machine is used to evenly coat aluminum wires with a layer of insulating polyester paint.
Finished wires are widely used in microwave oven transformers, degaussing coils, power transformers, small household motors, and other fields.
2. Feature:
(1) Wire Range: 0.3-0.6mm
(2) Felt Painting Methods
(3) Number of Production Heads: 40 Heads
(4) Machine Total Power: 120KW
(5) Passes of coating enamel: Single coated 8passes, Compound 6 + 2 lanes
3. Parameter:
| Wire Range | 0.30mm-0.60mm | Category | QZ Y-2 2EIW | ||
| Softening Furnace Length | 7000mm | Specifications
|
0.30 | 0.45 | 0.60 |
| Take-up mode | Double Shaft motor take-up | Speed:m/min | 93 | 60 | 43 |
| Oven length | 4500mm | DV | 25-28 | ||
| Oil coating method | felt | Output kg/ day | 1540 | 1950 | 2480 |
| Installed power | Appro:120KW | Energy consumption ratio/ton | 325 | 250 | 195 |
| 24H daily energy consumption | 450-500kw·h | ||||
4. Advantage:
(1) The double-layer thermal insulation mode is adopted, so that the temperature difference of the night is not influenced, and the constant temperature is ensured.
(2) 2 Sets of circulating paint, the whole is made of stainless steel and equipped with a paint shortage alarm system and paint spill alarm system.
(3) The oven is heated by a heating tube and can be heated to over 550℃ in 2 hours.
(4) Install a 10-inch touch screen to control the temperature, the range of temperature is from 0℃ to 800℃.
5. Delivery time: 120 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
