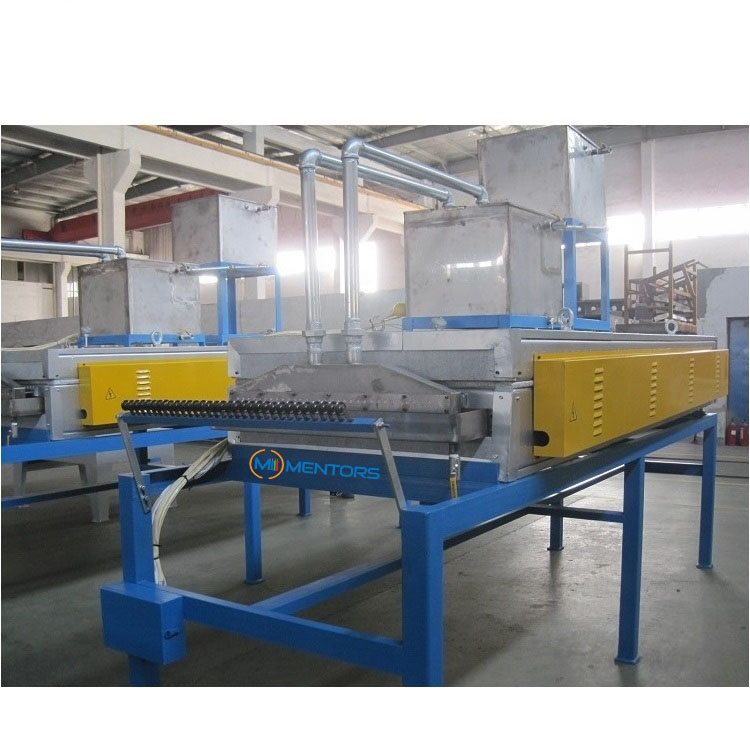

3.5M Annealing and Tinning Machine

Home Annealing and Tinning Machine Wire Annealing Machine 3.5M Annealing and Tinning Machine

3.5M Annealing and Tinning Machine

The water tank is re-cycle design and with water tank and pump.

Below the Annealing machine furnace and upper of the take up has lights design, easy for workers to operate the wire.

Main feature:

(1) Max.Wires Quantity: 32

(2) Max speed: 300 m/min

(3) Annealing Body Length: 3.5 m

(4) Temperature Preservation: four insulation layers

Wire Annealing Machine, Annealing and Tinning Machine2019-03-06m90 Tags: Offline Annealing Machine

Description

1.Application:

This machine is special for annealing 32 copper wires 0.03-0.08 mm at the same time.

Finished wire is wound by plastic bobbin.

2.Parameters:

Machine type SY-32H/3.5
Length of annealing tank 3.5m
Wire dia Φ0.03-Φ0.08mm
Pay-off stand By brush wire
Max. speed 300m/min
Tin-coating type Dual parts by heater (optional)
Pay-off bobbin size Φ300 or customized
Spool bobbin size PT5-PT25 or customized

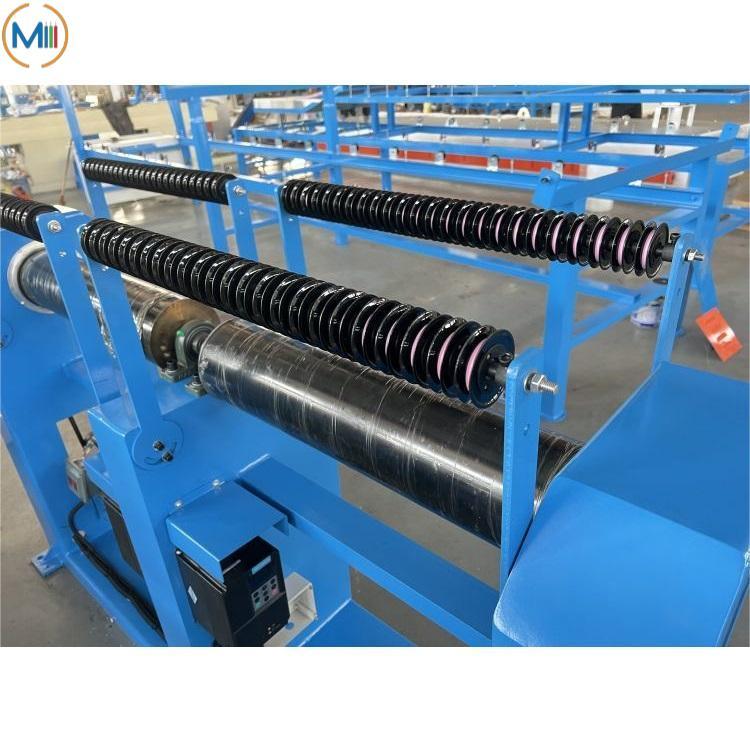

Take-up type Single spooler drive by torque motor
Annealing type Continuous annealing by heater
Total power consumption 45KW
Machine dimension 20000L×2200W×1900Hmm

3.Advantages:

1).Add one room inside the annealing, which can make the temperature impartial distribution.

2). Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time.

3).Spooler arranged in double layer can save space.

4).It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).

4.Delivery time: 30-45 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Wire Annealing Machine
