Description
1. Application:

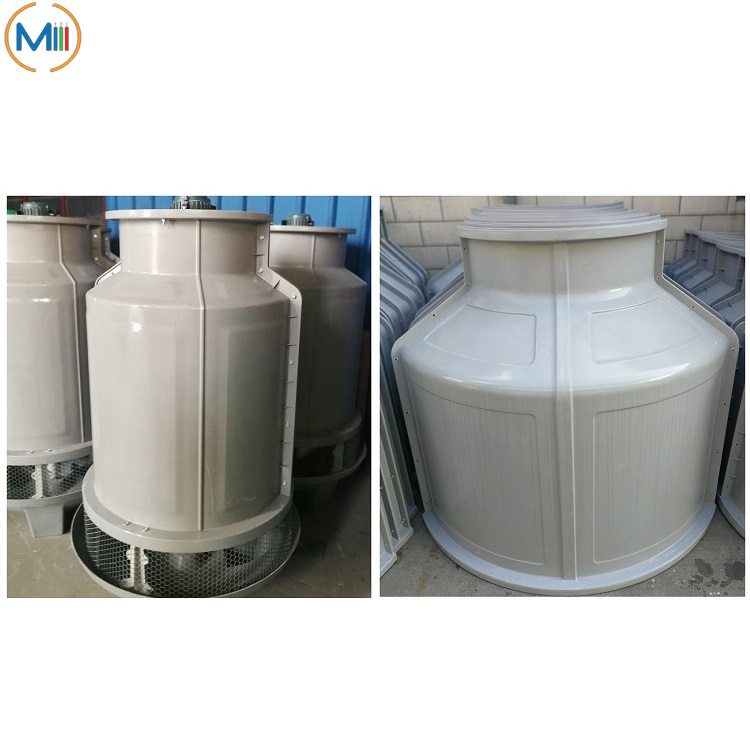

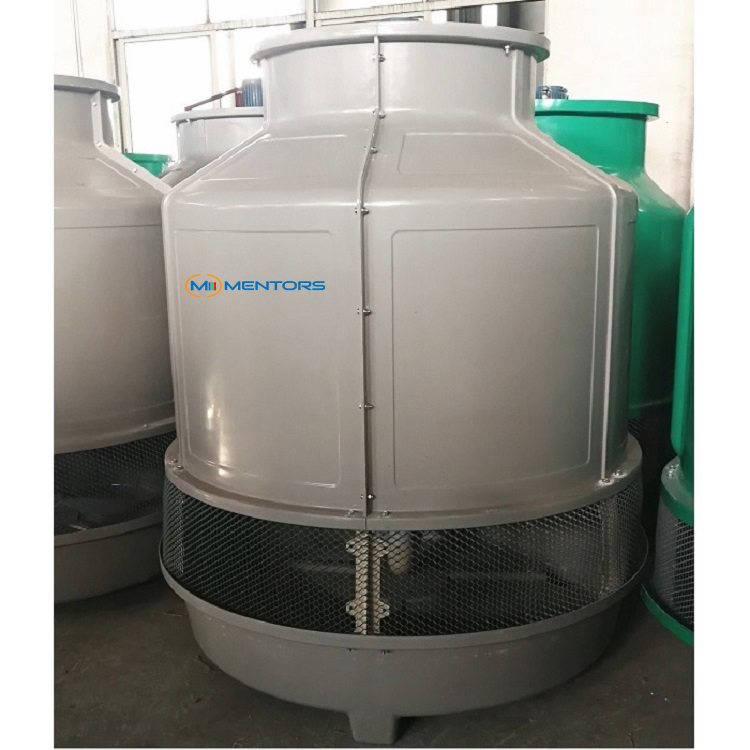

Water Cooling Tower is a heat rejection device that rejects waste heat to the atmosphere through the cooling of a coolant stream, usually a water stream to a lower temperature.
Cooling towers may either use the evaporation of water to remove process heat and cool the working fluid to near the wet-bulb air temperature.
2.Parameters:
| MODEL | HTA | 40 | |
| Data | Runoff | M³/H | 30 |
| Air volume | M³/H | 17000 | |
| Motor | KW | 0.75 | |
| Noise Lever(16M) | dBA | 56.5 | |
| Suttle | KG | 165 | |
| Move weight | KG | 380 | |
| Pipeline | Water ilnlet | WI | 80 |
| Water outlet | WO | 80 | |
| Overflow | OF | 25 | |
| tonnage | DR | 25 | |
| Flow valve | FV | 15 | |
| Height | Tower | TH | 2180 |
| Motor | MH | 200 | |
| Casing | CH | 1370 | |
| Air inlet | AH | 290 | |
| Water Basin | WH | 390 | |
