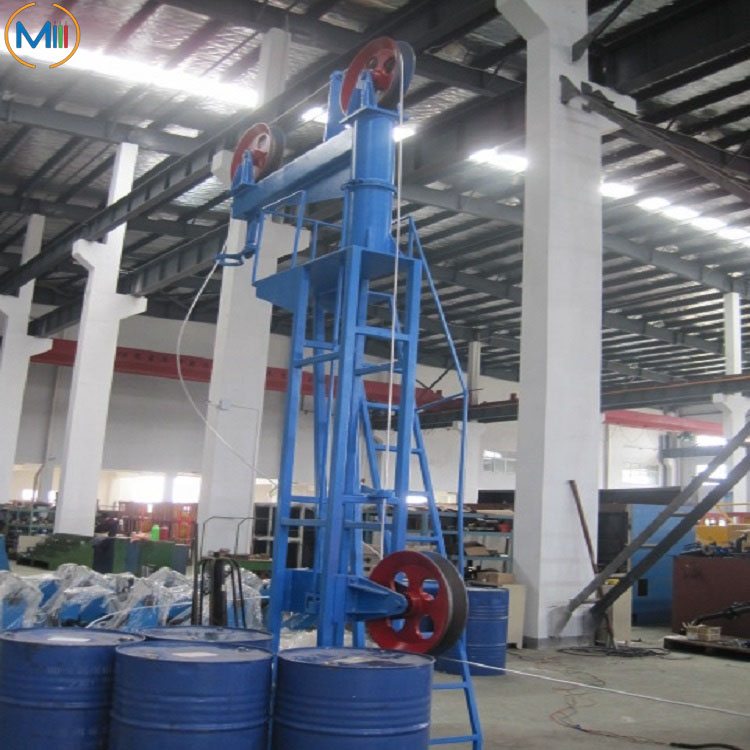

It's used for drawing and annealing copper rod to Φ1.2～Φ4.0mm wire.
The drawing capstans are driven by the same motor while the last capstan is driven by another independent motor.
In this way, the outlet diameter can be changed easily without stringing up the machine again (quick die change design).
Feature
1.Capstan Diameter: 450mm
2.Max.Dies Quantity: 13
3.Main Motor: 280KW
4.Speed Range: 25m/s
1. Application:

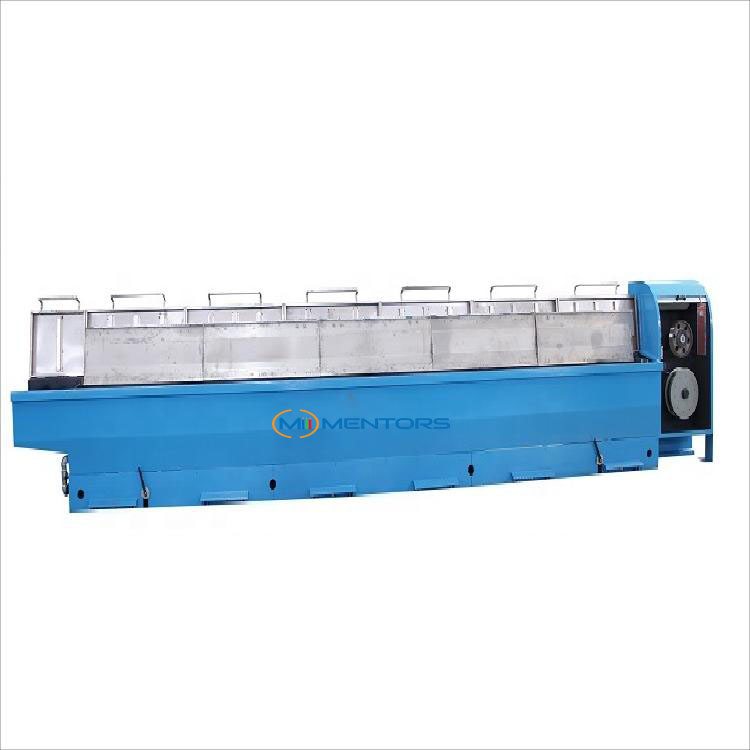

Copper Rod Breakdown Machine With Annealer is used for drawing and annealing copper rods from 8.0mm to 1.2-3.5mm.
2. Parameters:
| Item | SY-LHT450/13 |
| Inlet Wire Dia.(mm) | Ø 8 |
| Outlet Wire Dia.(mm) | Ø 1.2~3.5 |
| Max Die No. | 13 |
| Max. Line Speed(m/s) | 25 |
| Main Motor(KW) | 280 |
| Drawing Capstan | Coated with tungsten carbide |

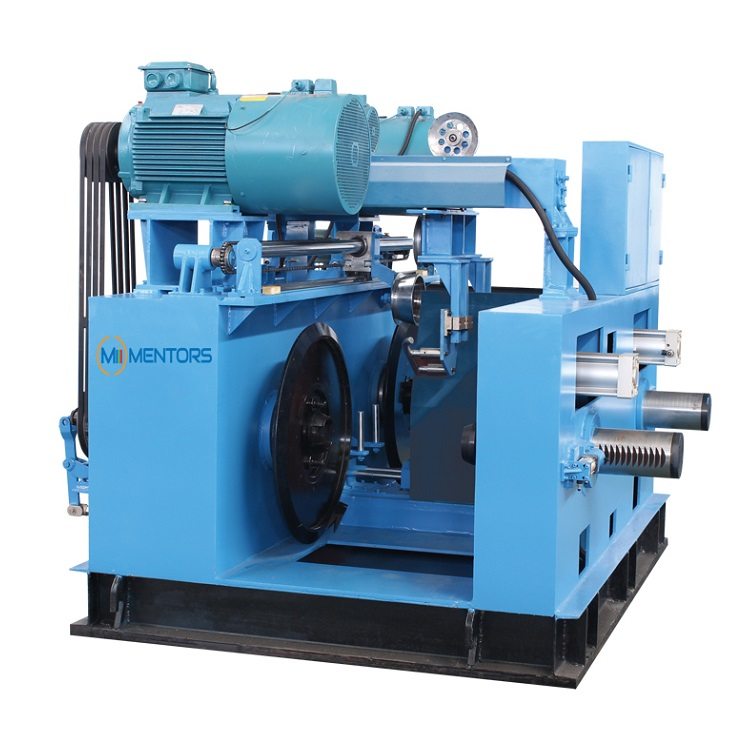

| Take-up type | Dual-spool take-up, drop coiler, compact coiler |
| Lubrication Type | Immersion and spraying |

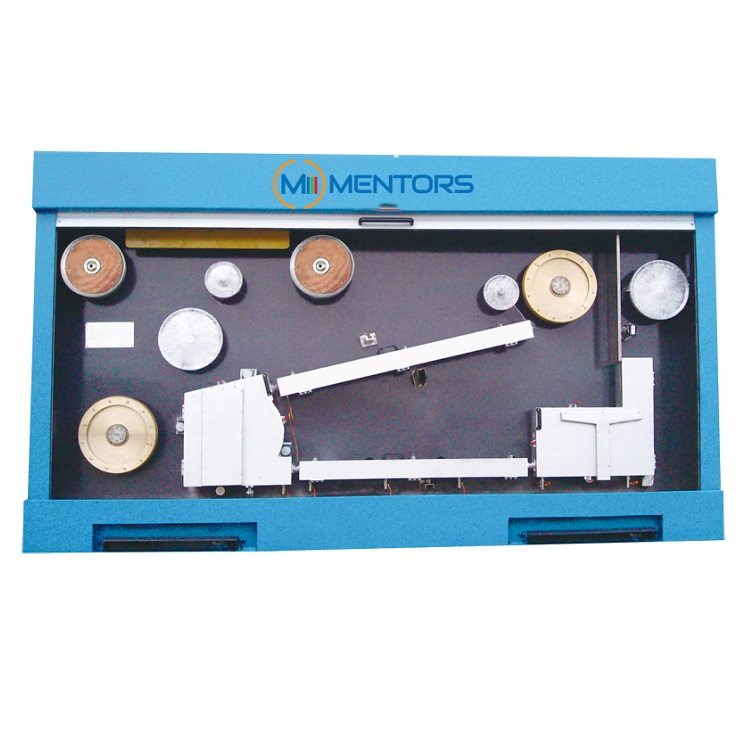

| Online Continuous Annealing Device | |
| Type | 450T |
| Annealing Wire Dia.
( mm ) |
1.2-3.5 |
| Annealing Current | 0-5000A |
| Annealing Voltage | 0 ~ 60V |
3. Advantage:
1. Iron cast gearbox body ensures long life with low noise.
2. Annealing part is a Horizontal structure, that operates easily.
3. Fast die change system keep high efficiency when producing different diameter. And dies quantity decrease a lot at the same time.
4. The capstan is coated with tungsten carbide power that can support a long life.
5. There is a small inclination between the axis of the drawing capstans and the gearbox transmission axis.
This special design can avoid the wire from overlapping with each other on the drawing capstan surface,
while maintaining a straight path from the first capstan up to the last one.
6. High-precision gear is produced by a German gear grinding machine, with high efficiency, and low noise.
7. Three or four-section AC annealing with full digital control to make wire with good elongation.
4. Delivery time: 90 working days
5. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage.
6. Guarantee: 12 months since shipping date(exclude easily wearing part)
