Intermediate Wire Drawing Machine with Annealing

Home Drawing and Annealing Machine Intermediate Wire Drawing Machine with Annealing

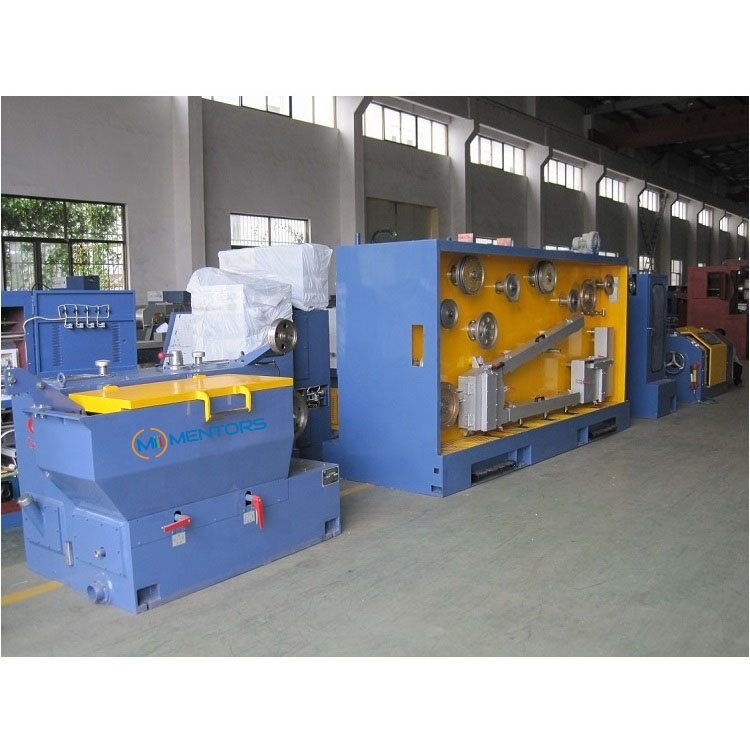

Intermediate Wire Drawing Machine with Annealing

This machine is used for drawing copper wire and other alloy wire with annealer from 2.6-3 mm to 1.13-2.78 mm.

Main feature:

1).Max.Dies Qty: 9

2).Outlet wire size: 1.13-2.78 mm

3).Max speed: 20 m/s

4).Three or four sections horizontal annealing.

Drawing and Annealing Machine, Intermediate Wire Drawing Machine with Annealer2022-09-21m90

Description

1. Application:

Intermediate Wire Drawing Machine with Annealing is used for drawing copper wire and other alloy wire with annealer from 2.6-3 mm to 1.13-2.78 mm.

2.Parameters:

Machine type SY-9DHT

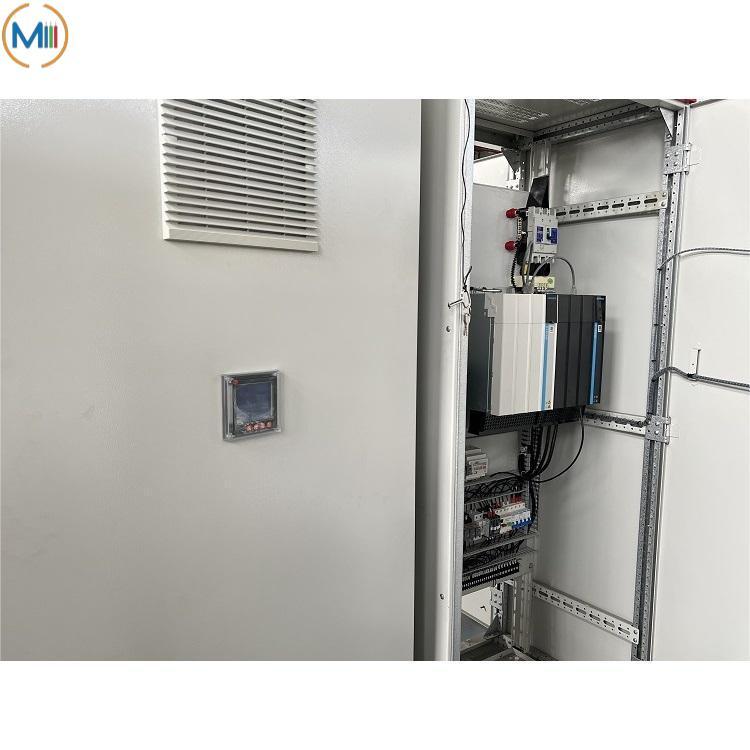

Control system PLC with touch screen
Inverter control Dual inverter control
Drawing dies No./max. 9
Inlet diameter Ø 2.6- 3.0mm
Out diameter Ø1.13- 2.78mm
Drawing line speed 1200mpm/max
Slip ratio of m/c 18%
Fix speed capstan slip ratio 15.5%
Frame Ironed cast

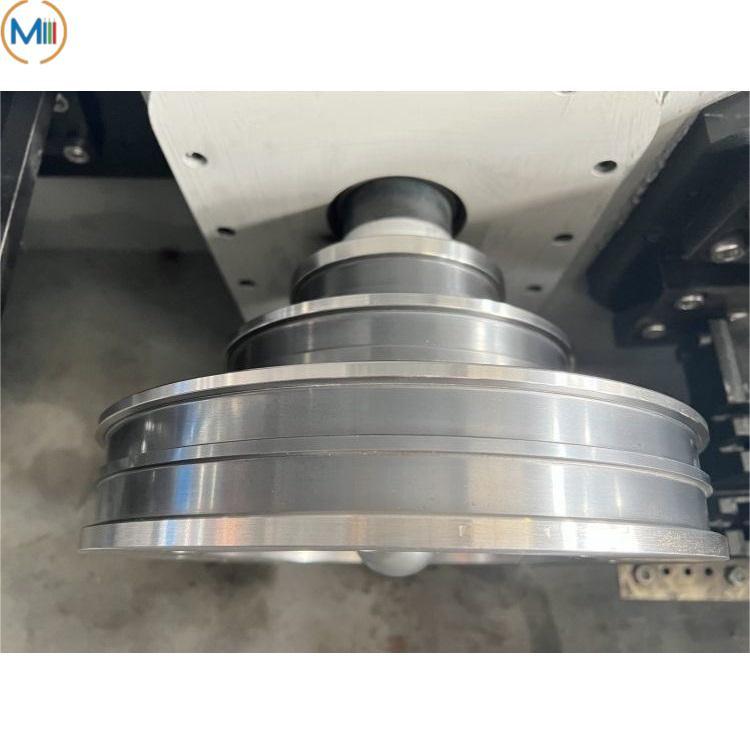

Capstan Ceramic plasma capstan
Main motor 55kw
Spooler motor 11kw
Capstan dia.(max) Ø 300mm
Fix speed capstan dia. Ø 300mm
Dia.of annealing Ø 350mm
Annealing voltage DC 0-60V
Annealing current DC 2500A
Protection type Steam or nitrogen

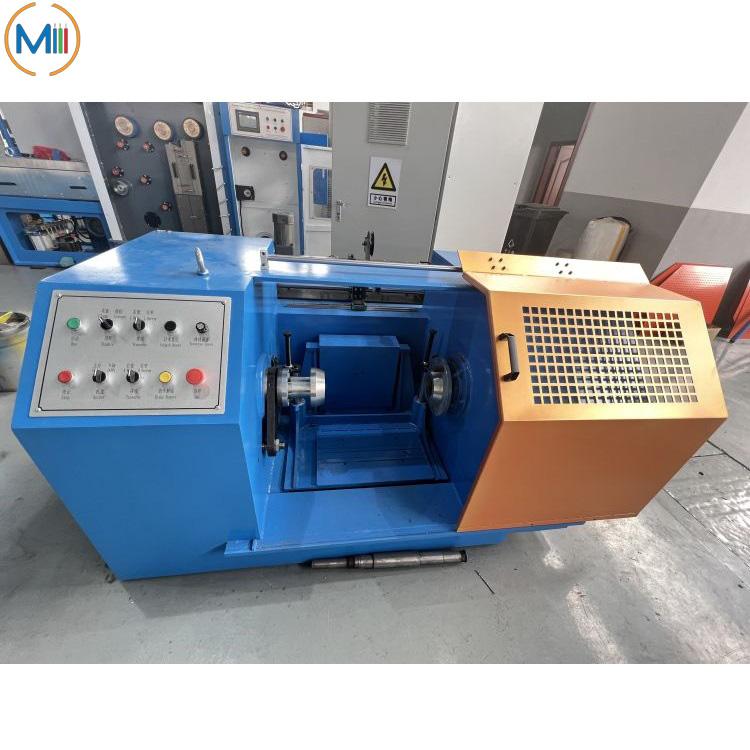

Spool bobbin size Ø 500mm-630mm

3.Advantages:

1). For same finished size, compare to Rod Breakdown Machine, electricity and energy saving.

2). Ironed cast and Wear-resistant capstan can keep long life.

3). Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.

4). Besides normal copper, also is a good choice for welding wire

5). Horizontal annealing design is easily for operating.

6). Longer annealing section with tension ensure good and stable elongation.

4.Delivery time: 45-60 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Intermediate Wire Drawing Machine with Annealer
