Copper Wire Bunching Machine 630

Home Stranding Machine, Bunching Machine Copper Wire Bunching Machine 630
Copper-Wire-Bunching-Machine-630-machine-body Copper-Wire-Bunching-Machine-630-operation-panel Copper-Wire-Bunching-Machine-630-twisting-part

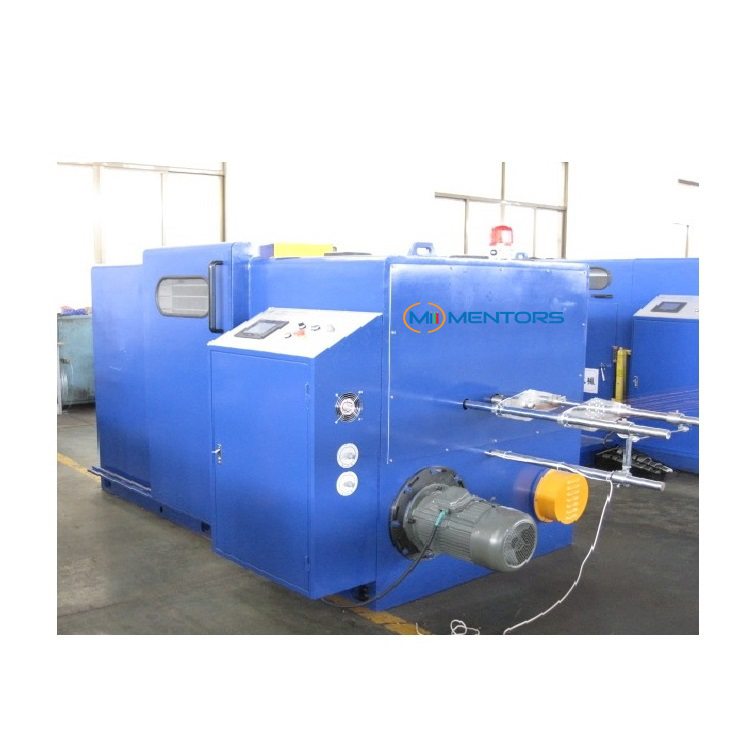

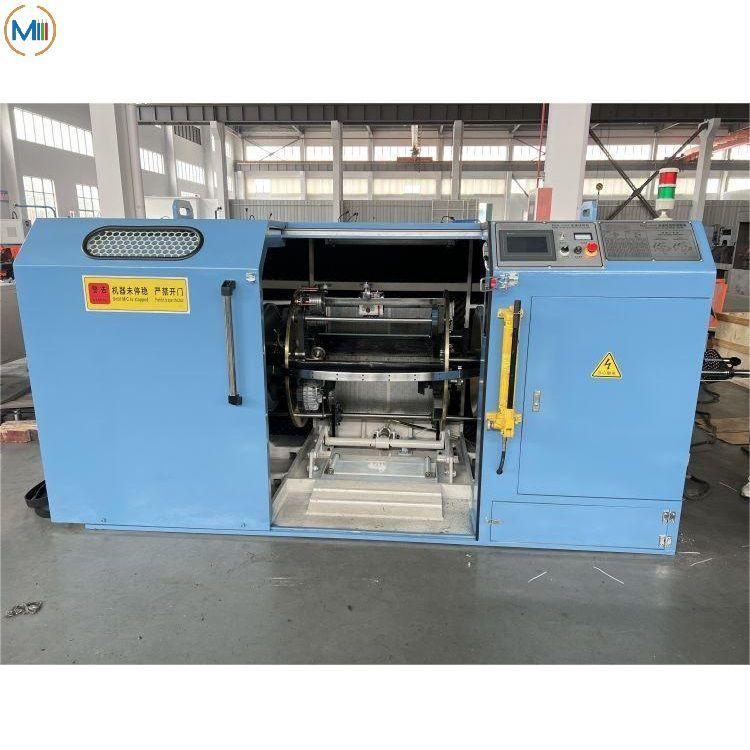

Copper Wire Bunching Machine 630

Main feature:

(1) Max.Finished Twisting Section Area: 6.0mm2.

(2) Max speed: 1800 r/min

(3) Raw material: copper wire, tin coated wire,copper cladding aluminum wires, silver plated copper wires etc

(4) Twisting type: double twist

Stranding Machine, Bunching Machine, Double Twist Bunching Machine2022-10-11m90

Description

1. Application:

Copper Wire Bunching Machine 630 is a kind of industrial equipment for bunching that can be widely used in various soft/hard electrical conductor wires, so that multiple single electrical conductors can be twisted into one strand to meet the processing requirements of the cable.Copper Wire Bunching Machine produced by Mentors Machinery is supplied to the twisting of bare copper wires, tin-coated wires, and enameled wires with more than 7 strands. This machine has a high rotate speed, the main shaft is lubricated by thin oil, cool warning if the oil is not enough, which can lower the temperature and the noise, and extend the life of the machine.

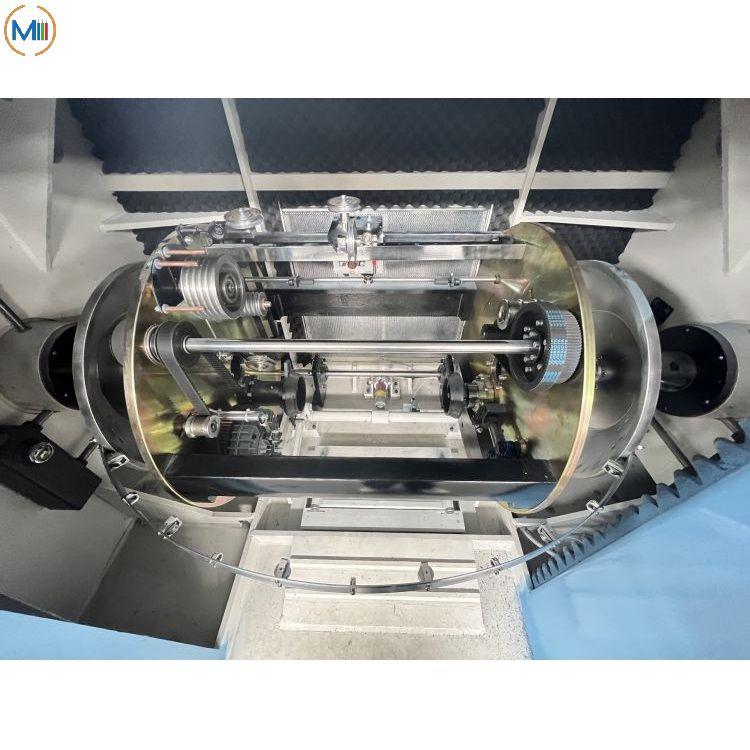

Wire winding road of Copper Wire Bunching Machine 630 is from the pay-off device through the disconnection sensing area, first pass through the main distribution board (the distribution holes are distributed according to 1+6+12+…), pass through the first line of pressure die, and then pass through the second line of pressure die, Finally enter the thread guide wheel in the right main shaft.

After passing the aluminum plate bow with the porcelain ring, it enters the thread guide wheel in the left main shaft, and then passes through the center corner guide wheel to the take-up wheel, and reaches the upper guide wheel of the aligner for traversing.

2.Parameters:

Machine type SY-630P
Max. speed 1800r/min
Inlet individual dia. 0.18—1.0mm
Standard lay length 11.15—66mm
Standing section area 0.18mm—6.0mm2
Twisting direction right or left
Spool dimension MAX 630mm
Bobbin loading, unloading type Manual hydraulic pressure
Main motor 7.5kw
M/C Dimension 2900mmL*1500mmW*1650mmH
Coating Sky blue (or according to customers requirements)
Pay-off It can be vertical passive type or 630 steel spool multi wire type

3.Advantages:

(1) More stability, high production efficiency, low noise and easy to operation.

(2) Spring bow can prolong the life.

(3) Take-up tension is controlled by magnetic powder clutch or mechanical type.

(4) If the wire breaks, the machine can stop automatically.

4.Delivery time: 45 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Double Twist Bunching Machine
