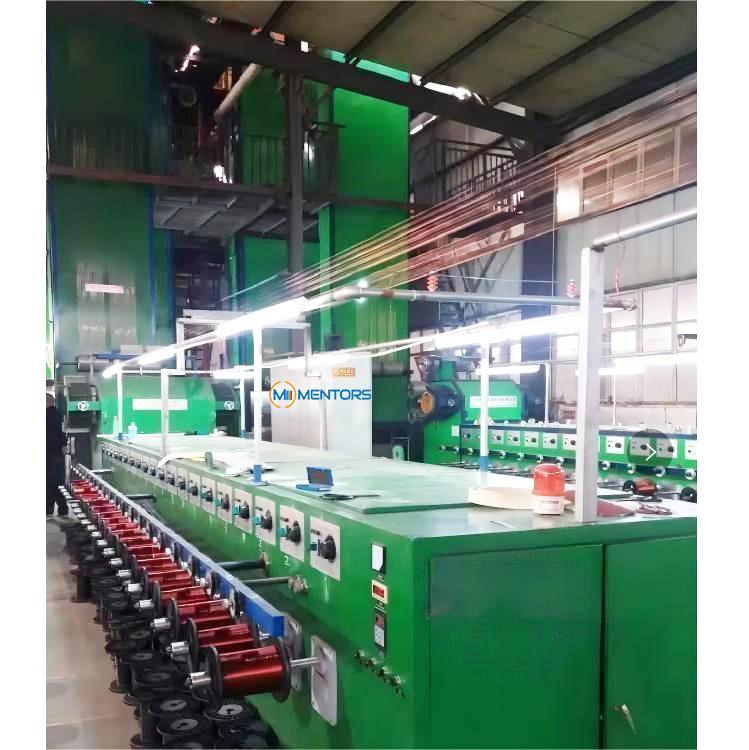

Copper Wire Enameling Machine
Feature:
(1) Wire Diameter：Φ0.80 mm –Φ2.50 mm
(2) Coating Times: 7 passes
(3) Wire Quantity: 24
Description
1. Application:
This machine is used to enamel copper wires of 0.8-2.5mm.
2. Feature:
(1) Wire Diameter：Φ0.80 mm –Φ2.50 mm
(2) Coating Times: 7 passes
(3) Wire Quantity: 24
3. Parameter:
| Machine Type | SY-QHL7400-12+12/7 |
| Wire Diameter | Φ0.80 mm –Φ2.50 mm |
| Wire Quantity | 24(12+12) |
| Coating Times | 7 Passes |
| Coating Type | by felt |
| Space Between Two Wires | 12.5mm |
| Max.Speed | 40m/min |
| DV Value | 25-30 |
| Take-up Spool Size | PT15-PT25 |
| Take-up method | Single-shaft horizontal take-up |
| Pay-off Spool Size | Φ500mm |
| Machine Total Power | 280 KW |
| Daily power consumption | About 700kw.h |
4. Advantage:
(1) The exhausted heat is effectively transferred to heating furnaces, dryers, steam generators, etc. through stainless steel pipes.
(2) The three-times tertiary catalyst can thoroughly burn, without odor and with zero pollution.

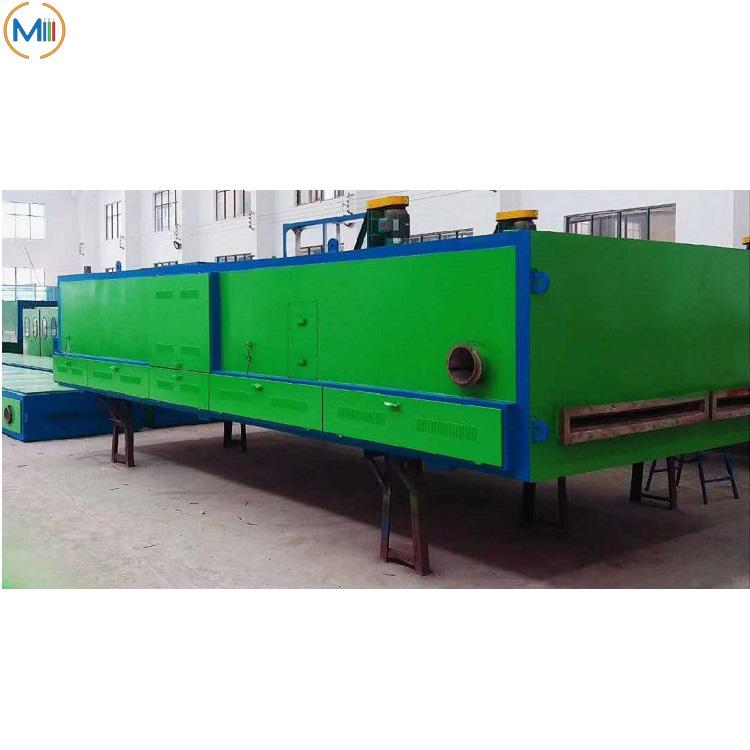

(3) The oven consumes zero electricity for heating during normal production and its exhaust gas is colorless and odorless and does not require the installation of environmental protection equipment.
(4) There is no gate valve line color adjustment in the entire oven, and the line color is uniform.
5. Delivery time: 120 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
