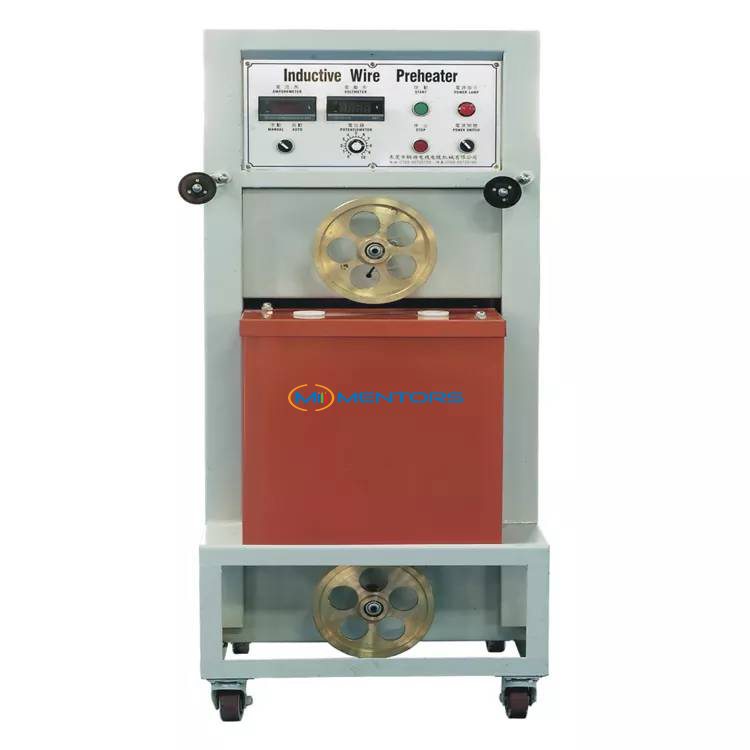

Copper Wire Preheater
Copper wire preheater is mainly used for bare copper heating ,which can increase adhesion without drawing copper and removing wire coding oil.
Description
1. Application:
Copper Wire Preheater is suitable for continuous heating of copper wire and other metal conductors to increase the adhesion between the conductor and the outer cover solve the
phenomenon of conductor shrinkage in the wire processing process,and facilitate the wire deep processing operation to improve product quality.
2.Parameters:
| Input voltage | AC220V 50HZ |
| Rated power | 8KVA |
| Custom-made | 16Kva |
| Maximum Line speed | 0-400M/MIN(it is determined according to the wire rod and the diameter of the wire rod) |
| Maximum preheating temperature | it is determined according to the wire rod and the diameter of the wire rod |
| Adaptive wire diameter | Single copper wire:0.6-1.8mm,Stranded wire:0.6-3mm |
| Full voltage no-load voltage | 0.2-2A |
| Heating mode | mutual induction heating,manual heating,automatic tracking heating |
3.Advantages:
1.The principle of electromagnetic induction is adopted,the temperature is adjusted electronically .
2.The line speed of the outgoing machine is automatically tracked, and the preheating current is automatically changed to realize the motion control of the whole machine to ensure the consistency of preheating.
