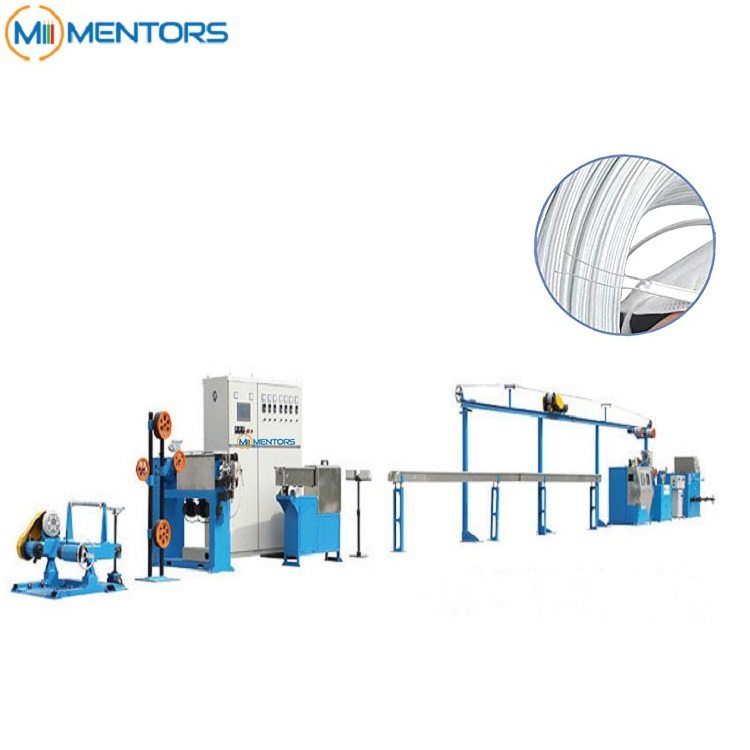

Face Mask Nose Wire Flat Cable Extruder
Cable Extruder is used for the insulation of wire and cable with PVC,PE, XLPE, LDPE etc.
Description
1. Application:

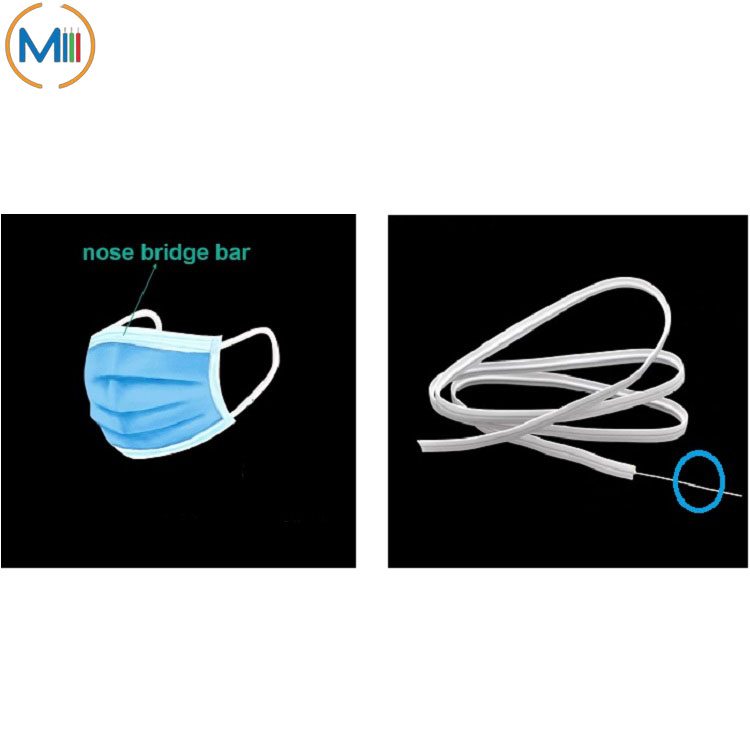

This type machine is used for making face mask nose wire or other flat cable
2.Parameters:
| Model | Screw
Parameters |
Extrusion
Capacity(kg/h) |
Power (kw) | Finished
Wire Dia.(mm) |
Line
Speed (m/min) |
|||||
| Dia
.(mm) |
L/D
Ratio |
Rotate
Speed (r/min) |
PVC | LDPE | PP | Main
Motor Power (KW) |
Total
Power (KW) |
|||
| SY-50
Extrusion |
50 | 25:1 | 20-110 | 80 | 40 | 34 | 11 | 28 | 0.8-5 | 10-650 |
| SY-70
Extrusion |
70 | 25:1 | 15-110 | 130 | 86 | 68 | 22-37 | 50 | 2-12 | 10-350 |
3.Advantages:
1)The concentricity of wire is more than 90%, with high precision ±0.03.
2)Barrel and screw is made of 38 CRMOAIA alloy steel, which has high rigidity, good anti-corrosive performance and is rather durable.
3)Tandem insulation can produce two layers cable easily.
4)Electrical control: PLC with touch screen.
4.Delivery time: 45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
