Description
1. Over View:
Low voltage cable (also called structured cabling or network wiring) is a wire designed to carry volts less than 0.6/1kv

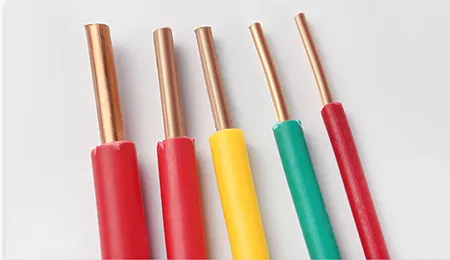

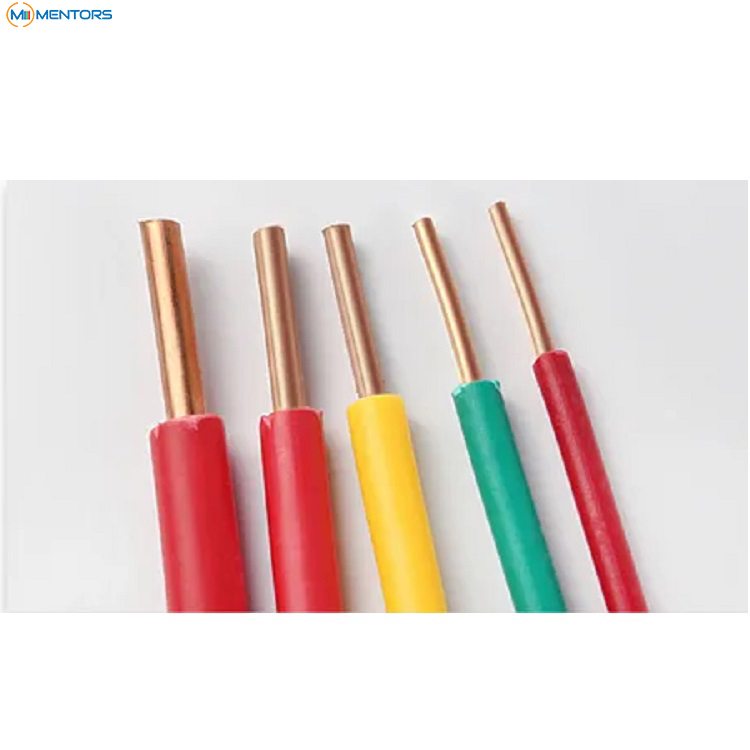

2. Final Product:
3. Production Flow and Low Voltage Cable Making Machines

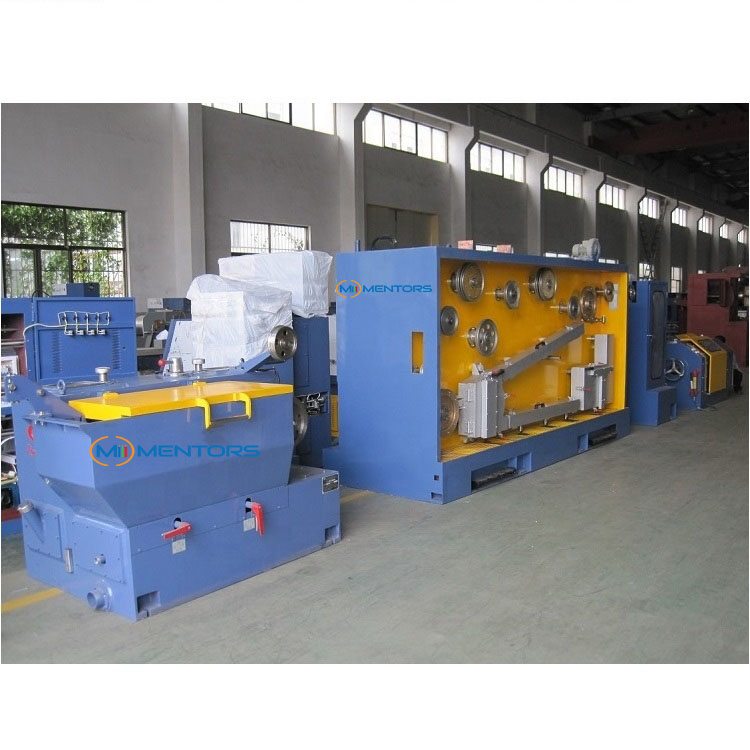

3.1. Intermediate Wire Drawing Machine with Annealing to produce fine wire (Click on the picture to view product details)
| Machine type | SY-9DHT |
| Control system | PLC with touch screen |
| Inverter control | Dual inverter control |
| Drawing dies No./max. | 9 |
| Inlet diameter | 2.6- 3.0mm |
| Out diameter | 1.13- 2.78mm |
| Drawing line speed | 1200mpm/max |
3.2. Outer Insulation by Extruder Machine (Click on the picture to view product details)
4. Main specification:
1. Complete external diameter: Φ1mm-Φ6 square mm
2. Concentricity: Above 95%
3. Extrusion capacity: 130KG/HR
4. Extrude line speed: Max 300M/Min
5. Machine center height: 1000mm
6. Power source: 380V 50HZ (according to your requirement)
