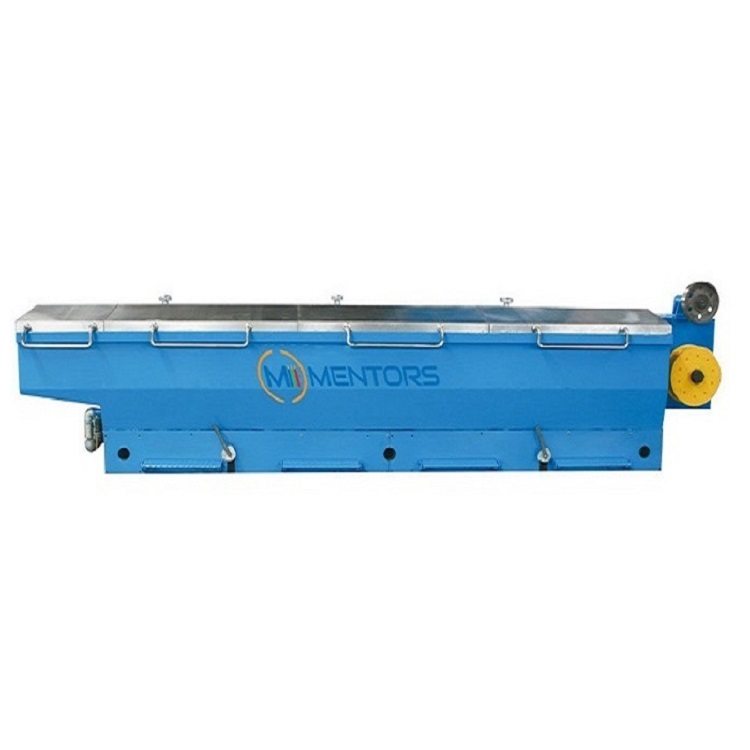

The machine is mainly used for drawing copper rod to Φ1.6～Φ3.2 mm wire.
It is a tandem type drawing machine with all the drawing capstans aligned in a row.
There are four models available to meet different outlet wire range.
Feature
Capstan Diameter: 400 mm
Max.Dies Quantity: 11
Main Motor: 132 KW
Speed Range: 15 m/s
1.Application:
The machine is used for drawing copper rod from 8.0 mm to 1.2-3.5 mm.

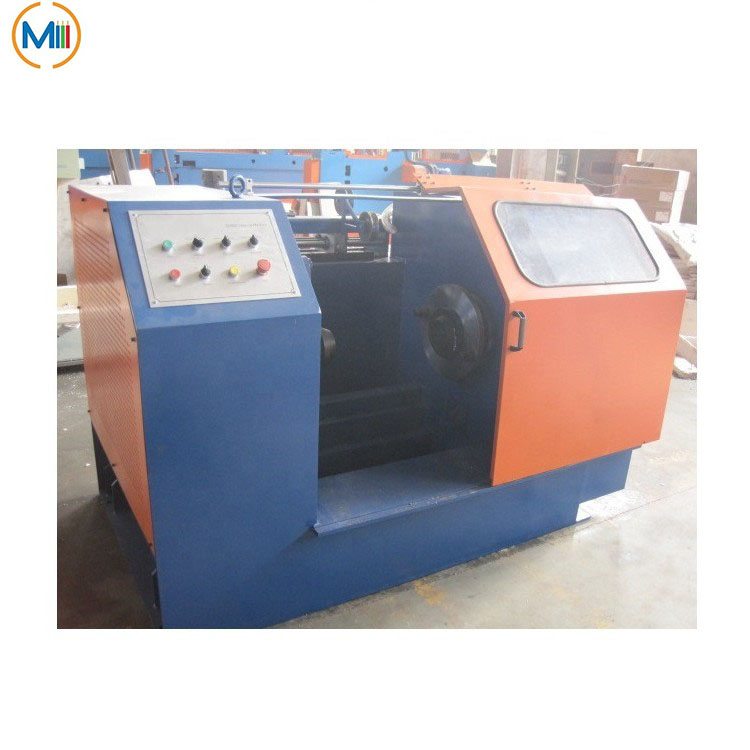

Outlet wire can go to single take up device or coiler.
2.Parameters:
| SY-LHD400/11 Middle Speed Copper Rod Breakdown Machine | |
| Machine type | SY-LHD400/11 |
| Inlet Dia. (mm) | Ф8 |
| Outlet Dia. (mm) | Ф1.6-Ф3.2 |
| Drawing drum Dia. (mm) | Ф400 |
| Max. Die No. | 11 |
| Drawing speed (Max) (m/s) | 15 |
| Main motor (KW) | 132(DC) |
| Drum arrangement | Horizontal type |
| Drawing drum | Coated by tungsten |
| Drum lubrication type | Immersed type |
3.Advantages：

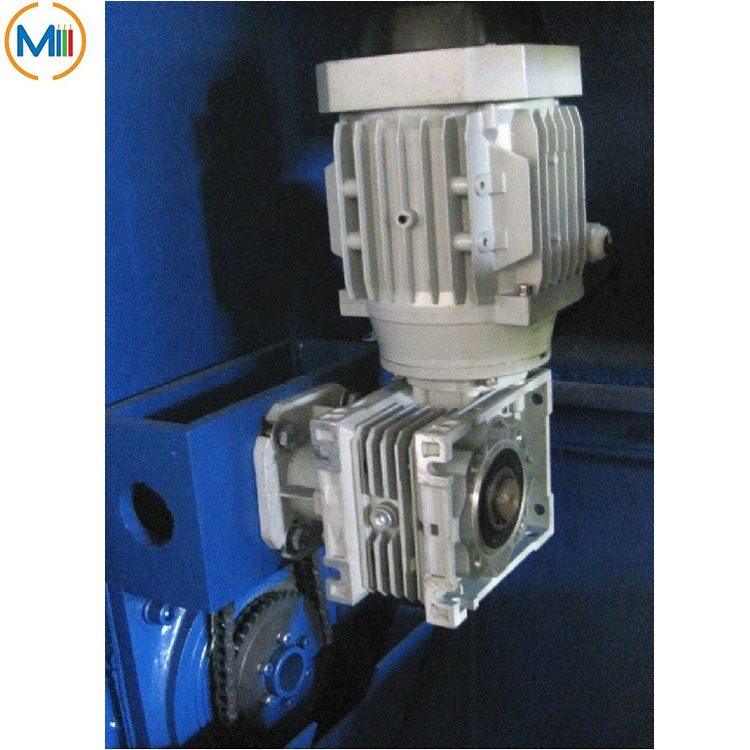

1) Motor With inverter controlled, energy saving
2) Iron cast gear box body ensure long life with low noise.
3) Precision grinding gear (gear material: 20CrMnTi), with oil lacking protection system
4) Capstans and dies are cooled by both half-submerged and sprayed emulsion to ensure a complete cooling and lubrication.
5) Economical equipment. Max speed range from 10-15 m/s. It’s the best choice for middle level factory production request.
4.Delivery time: 90 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
Click here to find out more about different types of Rod Breakdown Machine
