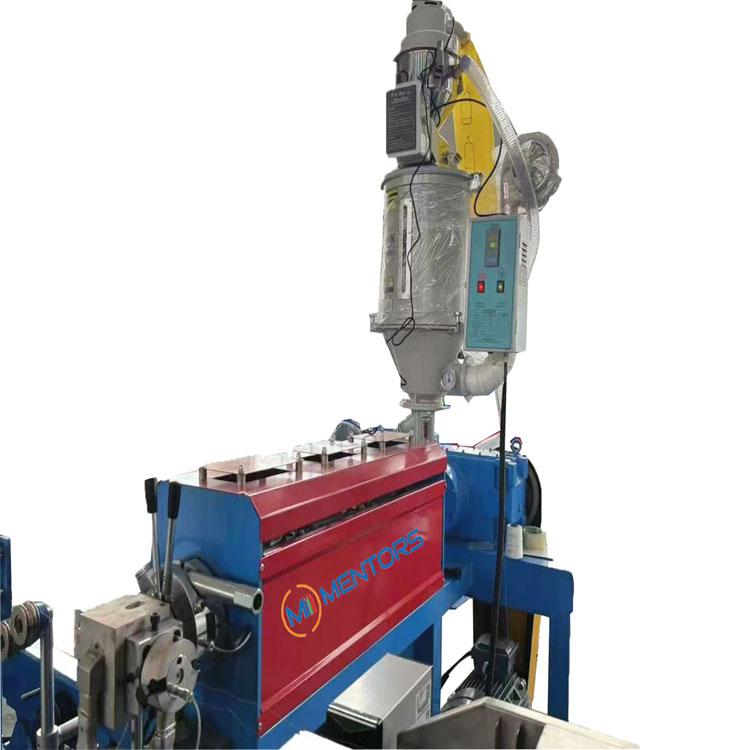

PVC Extrusion Machine
PVC Extrusion Machine is mainly used for PVC round cable and flat cable with size 0.6~5.0mm and 13mm* 1mm.
Description
1.Application:
This machine is mainly used for PVC round cable and flat cable with size 0.6~5.0mm and 13mm* 1mm.
2.Parameters:
| Model | SY-50 |
| Core diameter(mm) | 0.6~5 |
| Screw length/diameter | 26:1 |
| Screw speed range | 10-110rpm |
| Temperature control | 3+4 |
| Max extrusion capacity(kg/h) | 70 |
| Max line speed(m/min) | 300 |

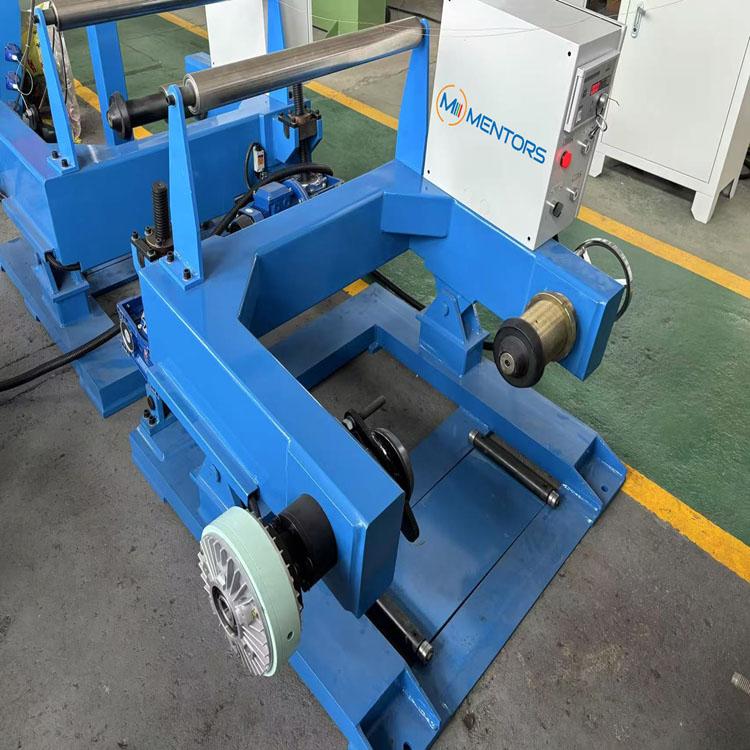

| Pay-off type | Shaft-less passive pay-off controlled by magnetic powder |
| Pay-off bobbin size(mm) | PN400-630 |

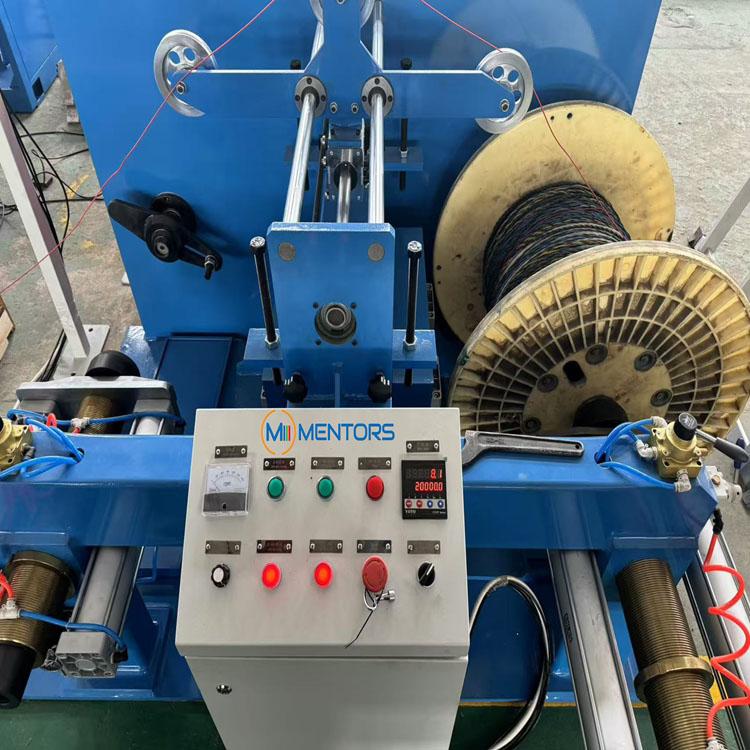

| Take-up | Dual-spool take-up |
| Take-up bobbin size(mm) | PN600-800 |
3.Advantages:
1)The screw of the Extruder use 38 GrMoAlA high quality carbon steel,all plastic channel grinding.

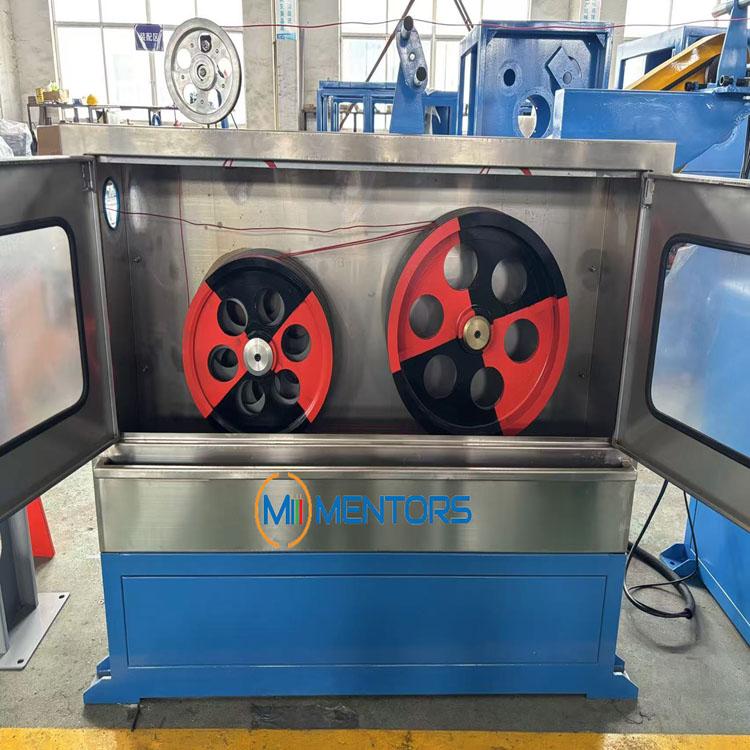

2)The haul-off type is dual-wheel haul-off, which material is aluminum alloy.There are four slots for balance correction.
3)The Extruder use intelligent temperature controller (RKC), 0-399 ℃ automatic setting control, which is convenient for use.
