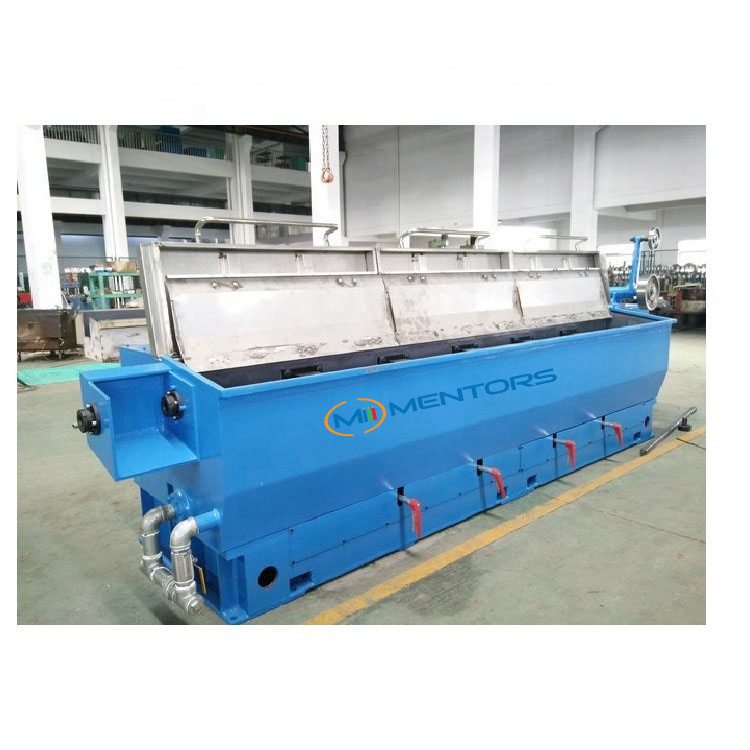

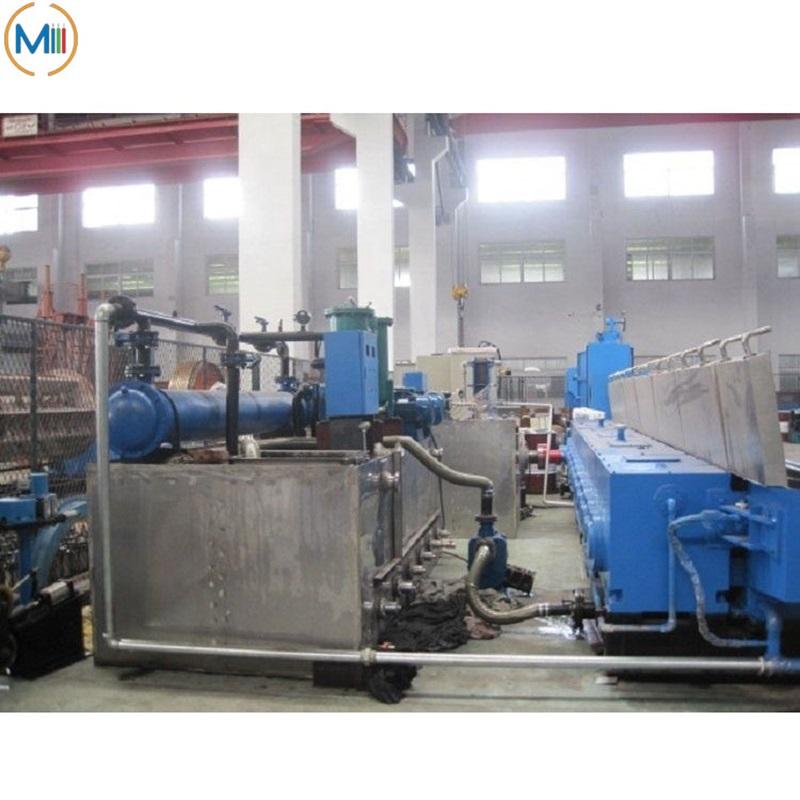

Rod Breakdown Drawing Machine is equipped with a transmission lubrication circulation system, and all transmission gears and bearings are lubricated by oil injection.Full immersion, can guarantee the wire's cooling and lubrication, easy threading wire for worker.
Main feature:
1) Max.Dies Qty: 8
2) Outlet wire size: 2.6-3.2 mm
3) Max speed: 12 m/s
4) Raw material: Brass or Copper Rod
1. Application:

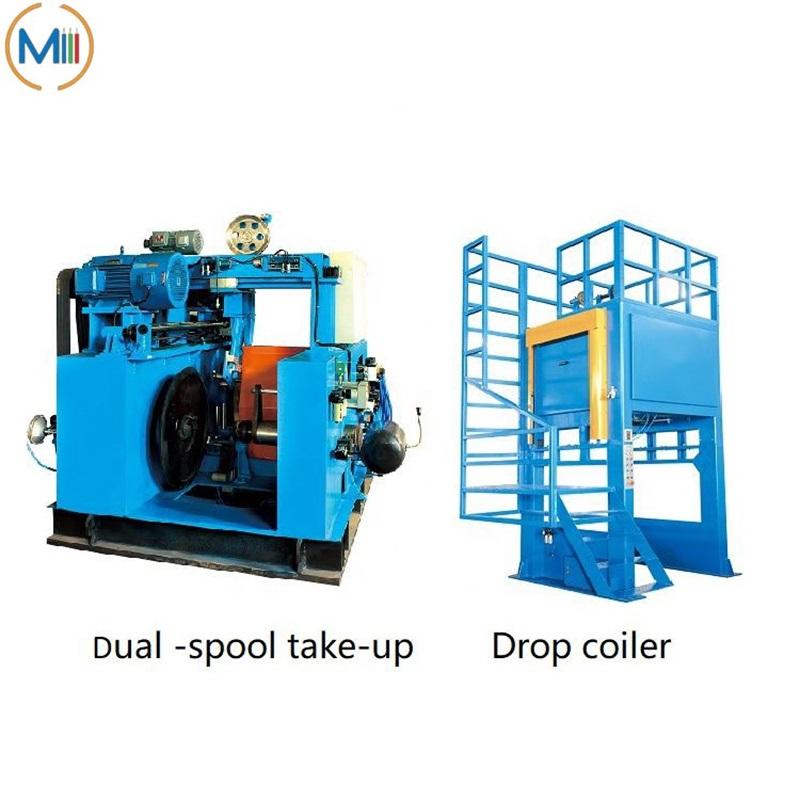

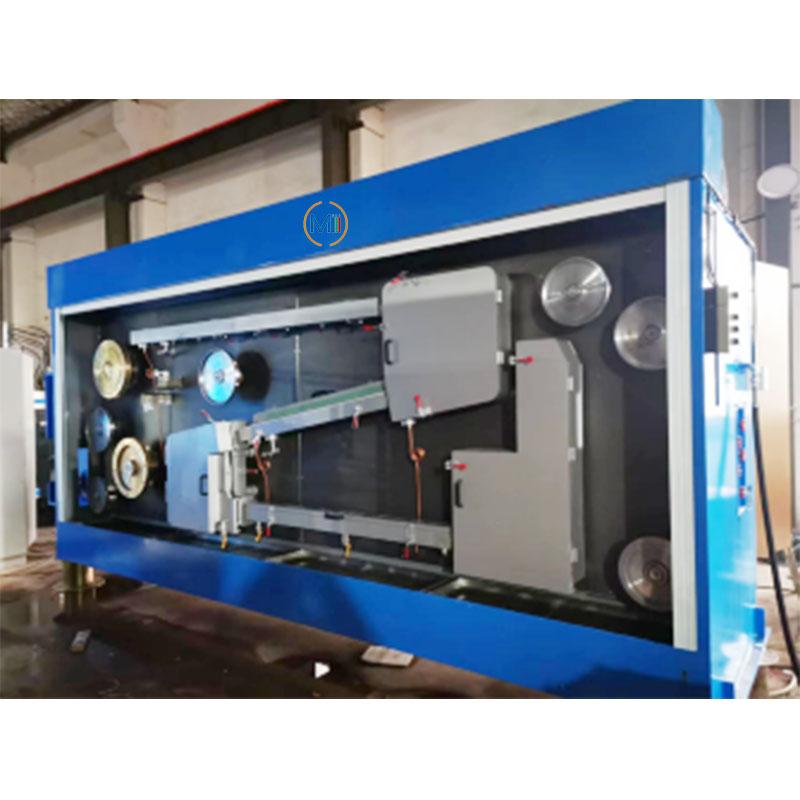

Rod Breakdown Drawing Machine is used for drawing and annealing Φ8mm copper rod to Φ2.6～Φ3.0mm followed by drop coiler or spool take-up.
Capstan of RBD Wire Drawing Machine is cast steel coat with tungsten carbide ring.Eye die and capstan apply spray half immerse type, improve the cooling effect, and protect the capstan and eye die.
2.Parameters:
| Machine Type | SY-LHT400/8 |
| Max.Die No | 8 |
| Inlet wire dia | 8mm copper rod |
| Outlet wire dia | 2.6-3.2mm |
| Max.Speed | 12m/s |
| Capstan dia | 400mm |
| Take-up type | Drop coiler |
| Main motor | 132kw (AC) |
| Max.annealing voltage | 60V(AC) |
| Max.annealing current | 4500A(AC) |
| Dimension | Approx 32000×4500×5200 mm |
3.Advantages:
1. Iron cast gear box body ensure long life with low noise.
2. Horizontal structure, operate easily.
3. Fast die change system keep high efficiency when produce different diameter.
4. High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.
5. PLC and touch screen controlled type, parameters can be set and display easily.
6. Every drum is transmitted by single motor,the tensile rate can be adjustable, the die can be set at random,prolong the lifetime of die.
4.Main construction description of RBD Wire Drawing Machine:
1. Inverter of RBD Wire Drawing Machine apply domestic famous brand, bearing apply domestic big brand, oil seal apply import brand.
2. Motor apply first class of China.
3. Low voltage switch, brake apply first class domestic or international.
4. Transmit type is all gear transmission between two capstan.Two capstan horizontal, coated with tungsten, machine ratio is 26%.
5. The smooth and stable wire-path ensures the quality of the surface of the wire.
5.Delivery time: 60-90 working days
6.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
7.Guarantee: 12 months since shipping date(exclude easily wearing part)
