1. Application:

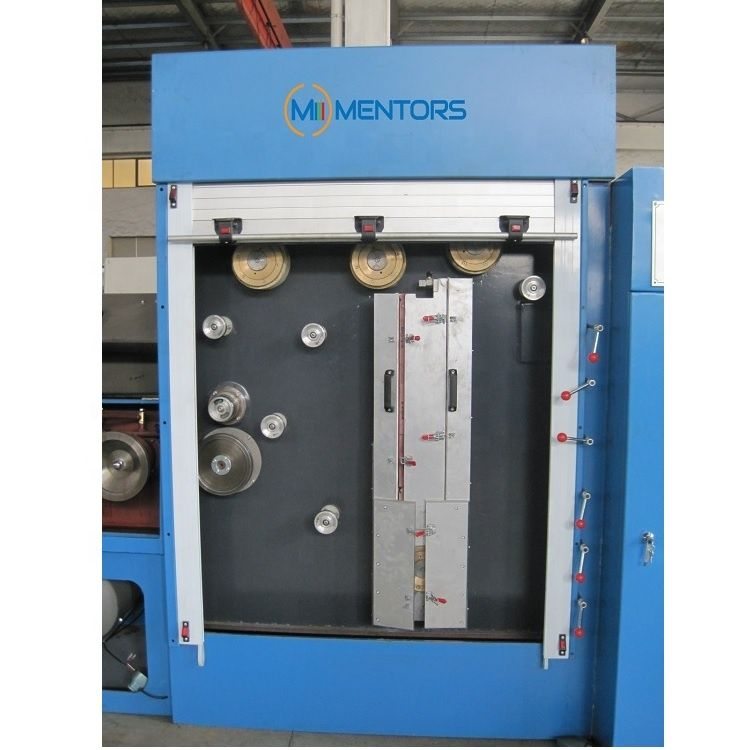

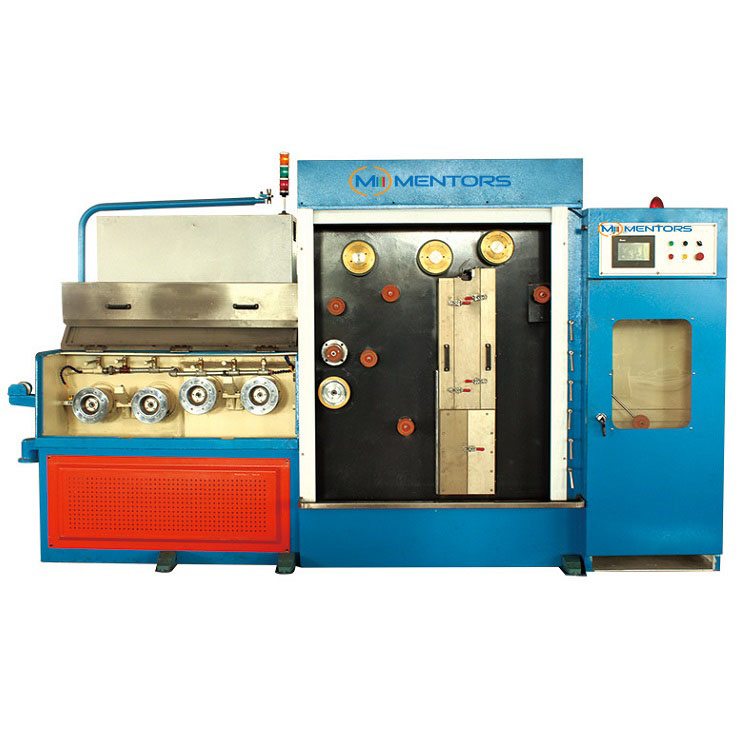

Silver Wire Drawing Machine is especially used for drawing and annealing silver wire to 0.08-0.20 mm.

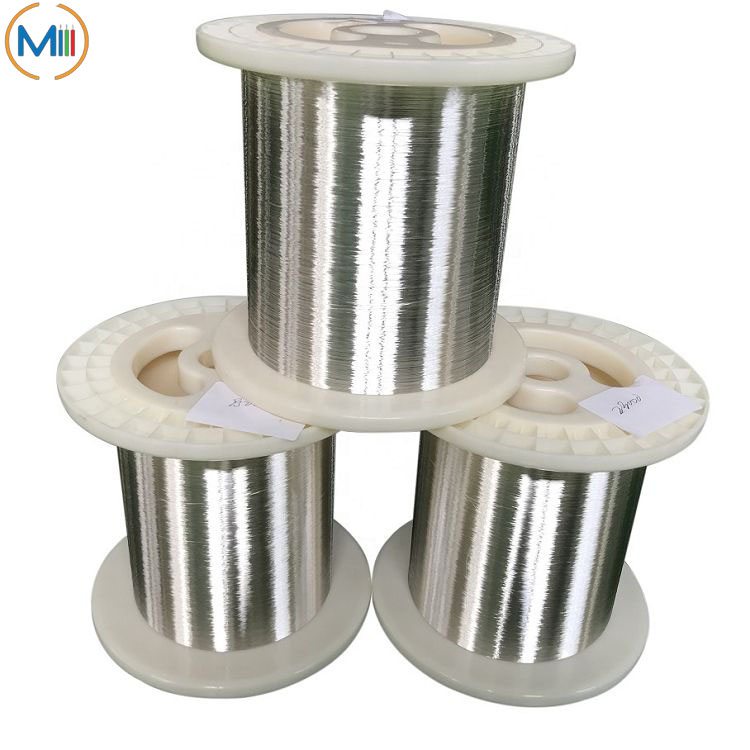

Finished wire is wound by plastic bobbin.
2.Parameters:
| Machine type | SY-DT24.A |
| Inverter control | Dual inverter control |
| Drawing dies No./max. | 24 |
| Inlet diameter | Ø 0.5- 0.8 mm |
| Out diameter | Ø0.07- 0.20 mm |
| Max.Drawing line speed | 1800 m/min |
| Slip ratio of m/c | 13% |
| Fix speed capstan slip ratio | 8% |
| Frame | Welded by steel plate |
| Capstan | Ceramic plasma capstan |
| Main motor | 15 kw |
| Spooler motor | 4 kw |
| Annealing voltage | DC 0-60 V |
| Annealing current | DC 250 A |
| Protection type | Steam or nitrogen |
| Spool bobbin size | Ø 300 mm OR according to customers |
| Transmission type | By flat belts |

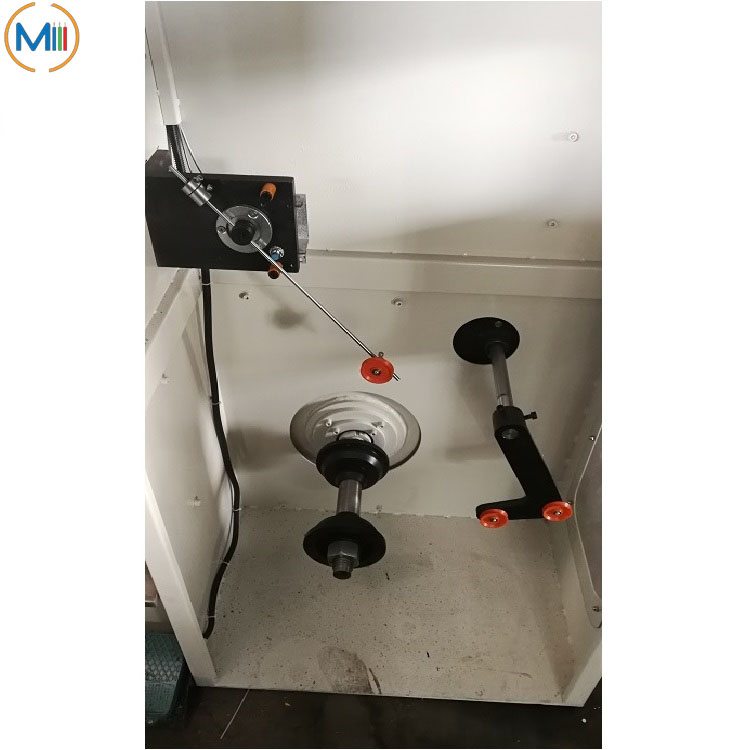

| Spooler control | PID Synchronous spooler |
| Detecting device | Weight balance by swing arm |
| Tension control | Weight balance type |
| Lubrication type | Spray type |
| Brake | Magnetic brake |
| Power source | 380v 50/60 HZ or customized |
3.Advantages:
1. Easy in installation and Maintenance
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Running in a high automation and intelligence,no pollution
4. As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5. Good cooling system, final wire quality is very good.
4.How do use the emulsion of the Silver Wire Drawing Machine in the right way after a holiday?
1.During the vacation, please make the lubrication emulsion tanks rainproof, dustproof, and anti-rats and other debris entering the tank(if there are similar substances entering it, please clean up in time, otherwise the damage of the drawing fluid will be accelerated)
2.All wire drawing recycle lubrication tanks need to circulate normally for 2 hours within 24 hours after the shutdown.
3.It is necessary to safely control the liquid temperature of the emulsion pool for the Silver Wire Drawing Machine during the holiday time ( better the temperature be controlled at 30-45 °C).
4.Before the normal start up after the holiday, turn on the circulating pump of the drawing fluid and emulsion tank to circulate for a period of time.It is recommended to add some new oil to the emulsion tank and mix it well.
5.For the Silver Wire Drawing Machine Continuous Annealing emulsion pool,please replace with new water and batch corresponding to the appropriate oil or antioxidant.
5.Delivery time: 30-45 working days
6.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
7.Guarantee: 12 months since shipping date(exclude easily wearing part)
