Description
1. Application:

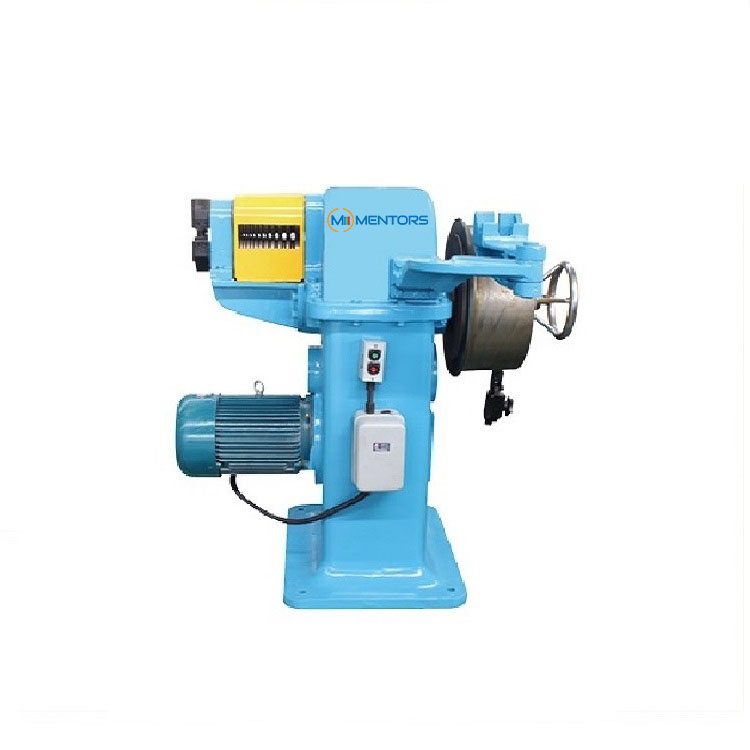

Wire Pointing Machine is used for treading copper, Aluminum wire, steel wire etc through dies.
Cutting function is available and the pointer is of saw shape. When tightened, the wire will be wounded into coils automatically.
The end of the raw material shall be rolled by the tip mill and then pass through the drawing die hole before the drawing process can be carried out. Wire Pointing Machine is composed of roller and reducer drive.The pointing machine is used for metal wire tip rolling, die piercing and head pulling.
2.Parameters:
| Pointing machine roller dia. | 110mm |
| Roller rotating speed | 16r/min |
| Capstan dia. | 430mm |
3.Advantages:
1.The wire head from wire pointing machine is conical instead of triangular shape.Which will Make sure that the clamped part will not break when pulling the wire.
2.Widely range: inlet wire diameter can be 8mm
