Wire Stranding Machine for Copper

Home Stranding Machine, Bunching Machine Rigid Frame Stranding Machine Wire Stranding Machine for Copper

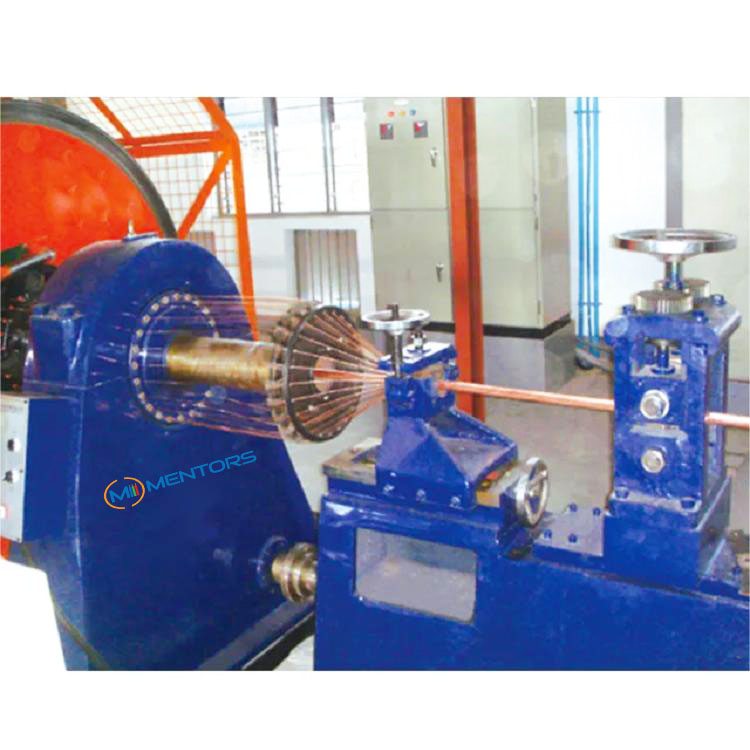

Wire Stranding Machine for Copper

It is easy to load and unload due to lumped loading device, the position-setting is both correct and reliable, the rigidity and strength of the machine is high, the general performance

of the machine is good.

Its rotating inertia is small and running speed is very high.

Rigid Frame Stranding Machine, Stranding Machine, Bunching Machine2022-09-22m90

Description

1. Application:

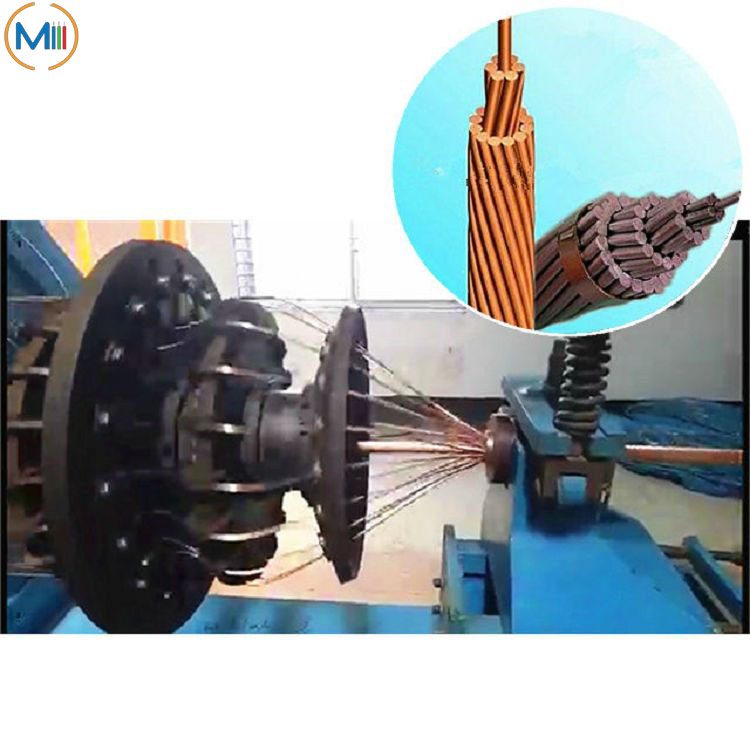

Wire Stranding Machine for Copper (with lumped loading device) is adopted to produce compact conductor of long bare aluminum wire, copper wires and ACSR.

It is also used to produce sector compressed stranding conductor and round compressed drawing conductor.

2.Parameters:

Machine Type SY-KJ630/37
Stranding single wire area 630mm2
Max stranding Diameter 55mm
Speed of frame carriage Max. 145rpm (total 6 steps)
Stranding pitch 551000mm
Haul-off linear speed 6~44m/min
Power of main motor 160 KW
Bobbin type inside frame carriage PND710(hole 125mm)
Haul-off capstan size Φ2500mm
Pre-twist pitch 500~2400
Center pay-off reel type PN1000 PN1800
Take-up reel PN1600 PN3150
Total power of the equipment 180KW
Total length of the equipment 42M

3.Advantages:

1. The stranding frame is a whole plate in three folds with high rigidity.

2. The gears in the speed reducer are hardened in quality.

3. Reels are arranged quartering around the cages .The central shaft does not support the weight of reels.

    The equipment has high rigidity ,high powerful ,low moment of inertia ,high speed.

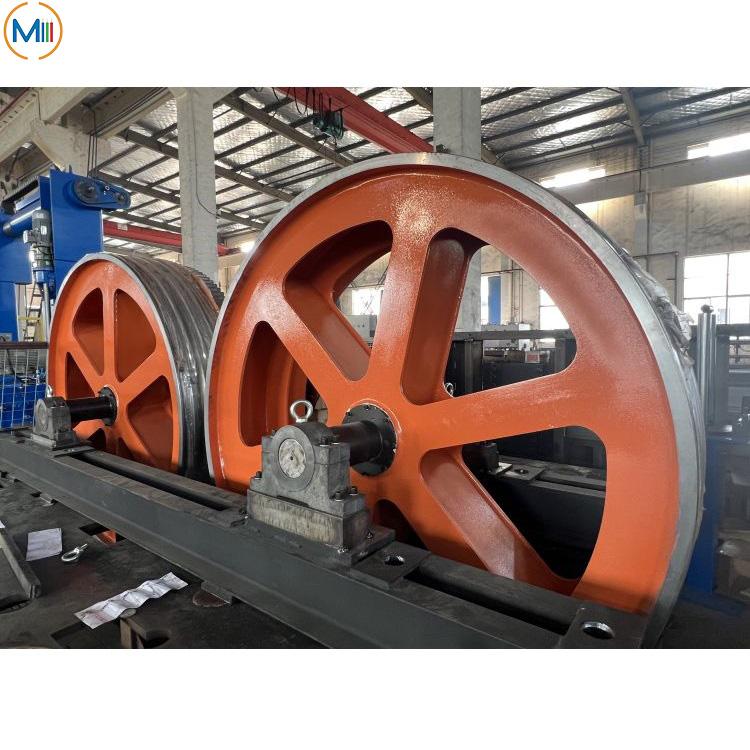

4. It is driven by 36-stage gear-box.The two wheels of the double wheel capstan are overhung position supported on shafts.

   One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out.

4.Delivery time: 90-120 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Rigid Frame Stranding Machine
