Drawing Machine For Brass Wire

Home Single Wire Drawing Machine Drawing Machine For Brass Wire

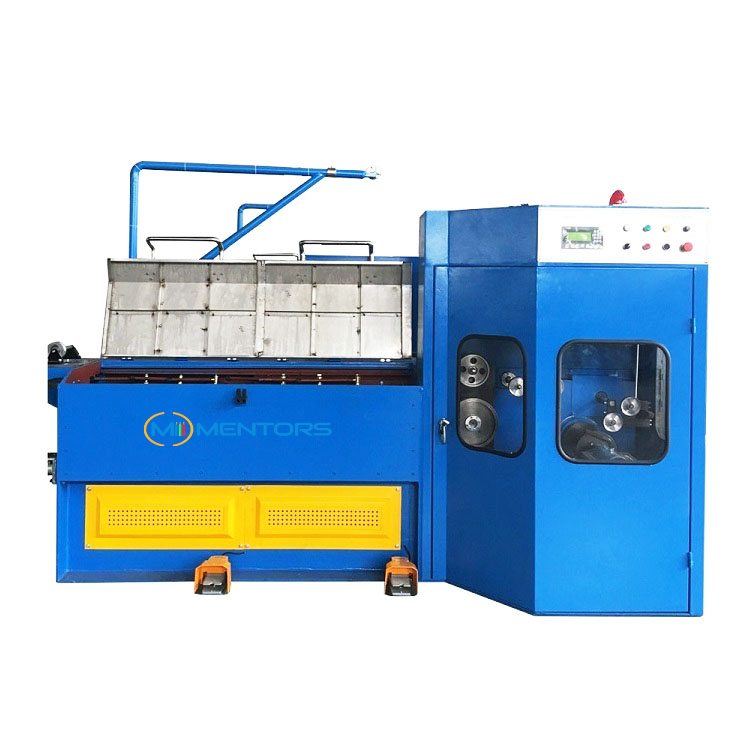

Drawing Machine For Brass Wire

Traversing was controlled by 110W belt-type synchronous motor, stable and fast response. Linear bearings are slide rails, with high rigidity and low wear.

Main feature:

1) Max.Dies Qty: 24

2) Outlet wire size: 0.12-0.4 mm

3) Max speed: 1500 m/min

4) Dual Inverter control

Single Wire Drawing Machine, Brass Wire Drawing Machine2022-10-10m90

Description

1. Application:

Drawing Machine For Brass Wire is used for drawing fine brass wire 0.12-0.40 mm from max input wire 1.2 mm.

2.Parameters:

Machine type SY-24B
Control system Traditional analog type

Computer digital control

Inverter control Dual Inverter control
Drawing dies No./Max. 24
Inlet diameter 0.60–1.20 mm
Outlet diameter 0.12–0.40 mm
Drawing line speed 1500 m/min
Frame Welded by steel
Capstan Ceramic type
Main motor 15 KW
Spooler motor 2.2 KW
Spool bobbin size 160-250 Plastic Bobbin
Transmission type Teeth belt + Flat belt
Machine dimension (mm) 2000×1600×1900
Machine weight 2500 KG

3.Advantages:

1. Double drivers ensure precisely tension and minimum ratio of the wire.

2. Energy saving and excellent wire surface quality with full immersed type

3. Best choice for diversify products manufacturer.

4. Straightening device of outlet wire ensure the EDM wire quality.

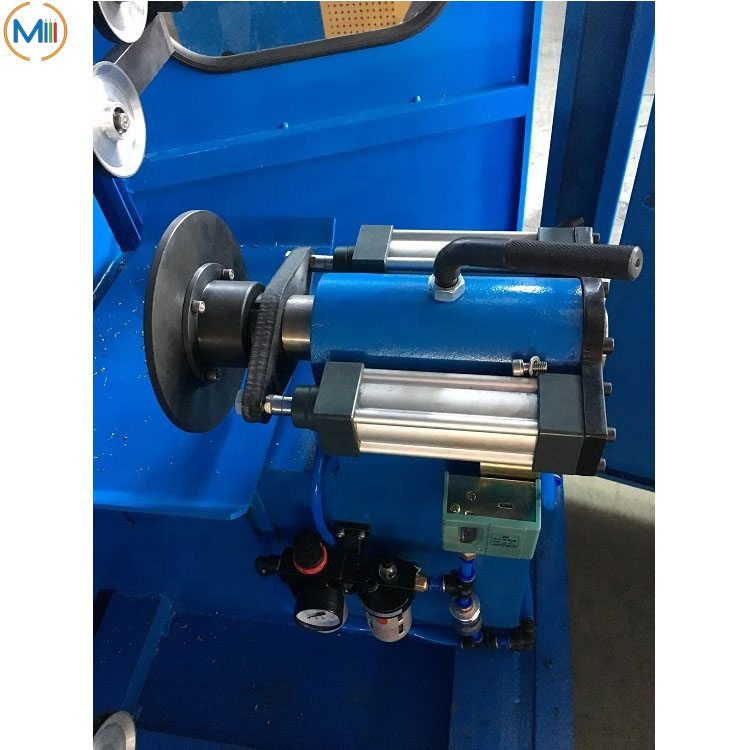

5. Drawing Machine For Brass Wire support pneumatic type take-up, which is suitable for small plastic bobbin.

4.Delivery time: 30-45 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Brass Wire Drawing Machine
