Fine Wire Drawing Machine with Annealing

Home Drawing and Annealing Machine Fine Wire Drawing Machine with Annealing

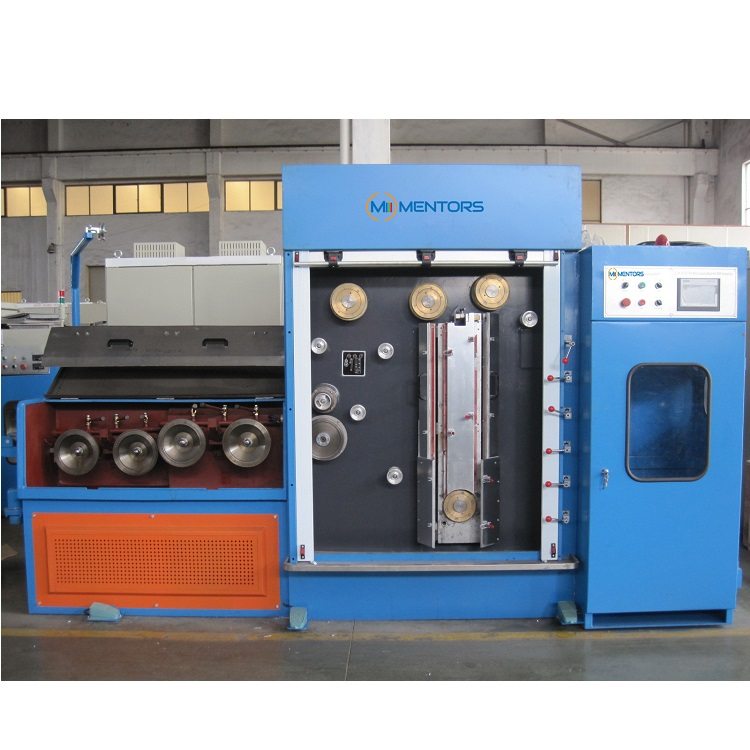

Fine Wire Drawing Machine with Annealing

This machine is special for drawing and annealing copper wires 0.5-1.38mm from 0.10-0.40mm.

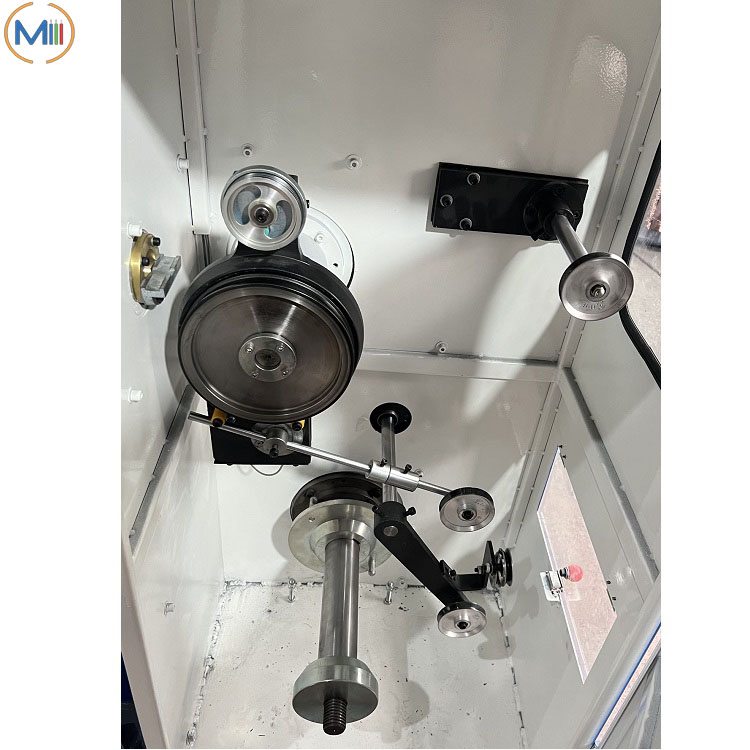

Finished wire is wound by 300 steel bobbin.

Feature:

1). Wire quantity: 1 wire

2). Max.Inlet wire: 0.5- 1.38mm, outlet wire: 0.10-0.32mm

3). Raw material: pure copper or brass wire

Drawing and Annealing Machine, Fine Wire Drawing Machine with Annealer2019-03-04m90 Tags: Wire Drawing Machine with Annealing

Description

1. Application:

Fine wire drawing machine with annealing is special for drawing and annealing copper wires .

2.Parameters:

Item Data
Machine type SY-DT24
Inverter control Dual inverter control
Drawing dies No./max. 24
Inlet diameter Ø 0.5- 1.2mm
Out diameter Ø0.15- 0.35mm
Max.Drawing line speed 1800m/min
Slip ratio of m/c 13%
Fix speed capstan slip ratio 8%
Frame Welded by steel plate
Capstan Ceramic plasma capstan
Main motor 15kw
Spooler motor 4kw

3.Advantages:

1).Double inverters can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.

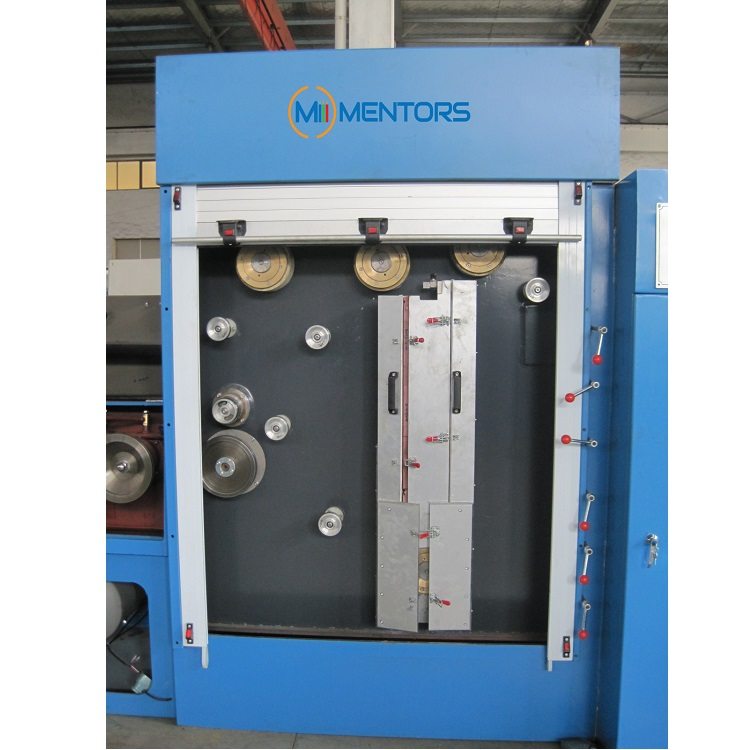

2).Third-section-annealing system, outside electrically neutral (no current flow to other unit)

3).Machine’s body and other key components and parts are produced by our own factory, quality is reliable.

4.Delivery time: 45-60 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Fine Wire Drawing Machine with Annealer
