High speed Intermediate Wire Drawing Machine

Home Single Wire Drawing Machine High speed Intermediate Wire Drawing Machine

High speed Intermediate Wire Drawing Machine

This machine is special for copper wire 0.4-1.6mm from 2.6-3mm.

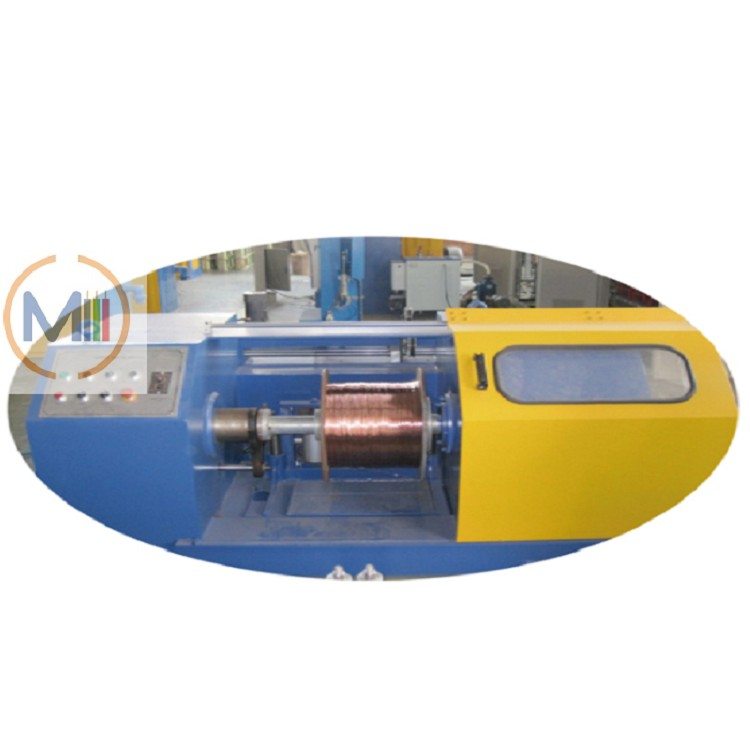

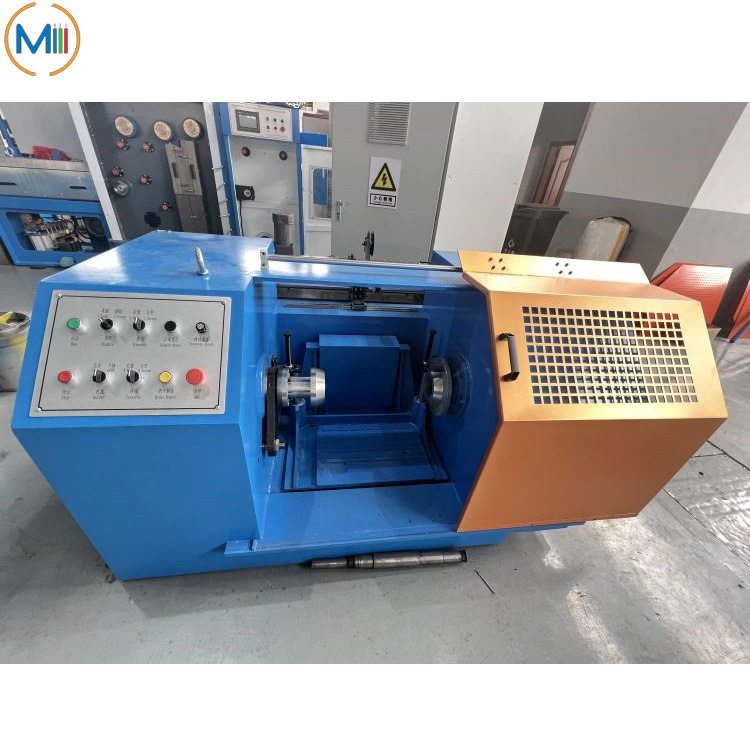

Finished wire is wound by the 630 single or dual bobbin automatic change take-up machine.

Main feature:

1)Max.Dies Qty: 117

2)Outlet wire size: 0.4-1.6mm

3)Max speed: 2000m/min

4) Raw material: copper wire, brass wire

Single Wire Drawing Machine, Intermediate Wire Drawing Machine2019-02-15m90 Tags: Wire Drawing Machine

Description

1. Application:

High Speed Intermediate Wire Drawing Machine is used for drawing and annealing copper wire and other alloy wire from 2.6-3mm to 0.4-1.6mm.

2-Parameters:

Machine type SY-17DH

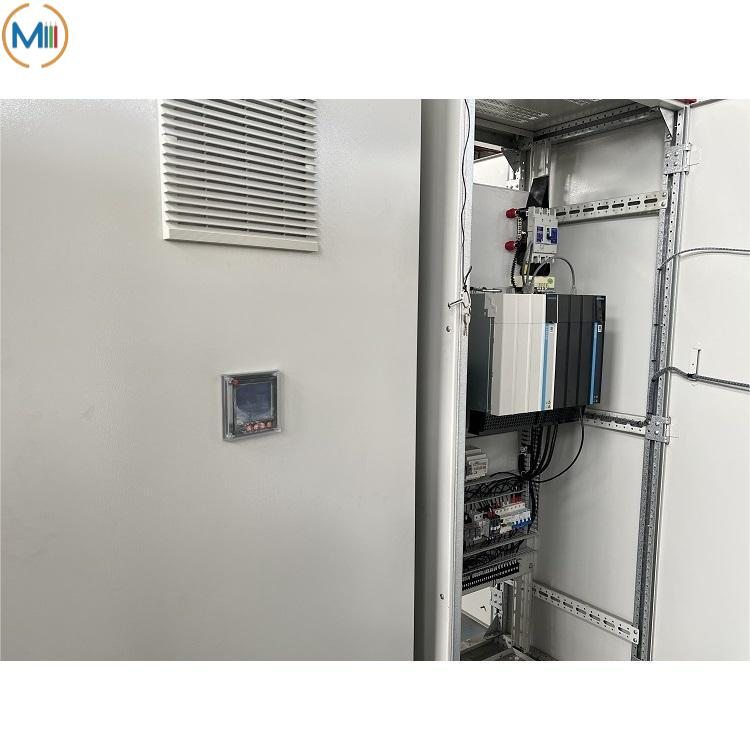

Control system PLC
Inverter control Two inverters control
Drawing dies No./max. 17
Inlet diameter Ø 2.6- 3.0mm
Out diameter Ø0.4- 1.6mm
Drawing line speed /max 2000m/min
Slip ratio of m/c 20%
Fix speed capstan slip ratio 15.5%
Frame Ironed cast

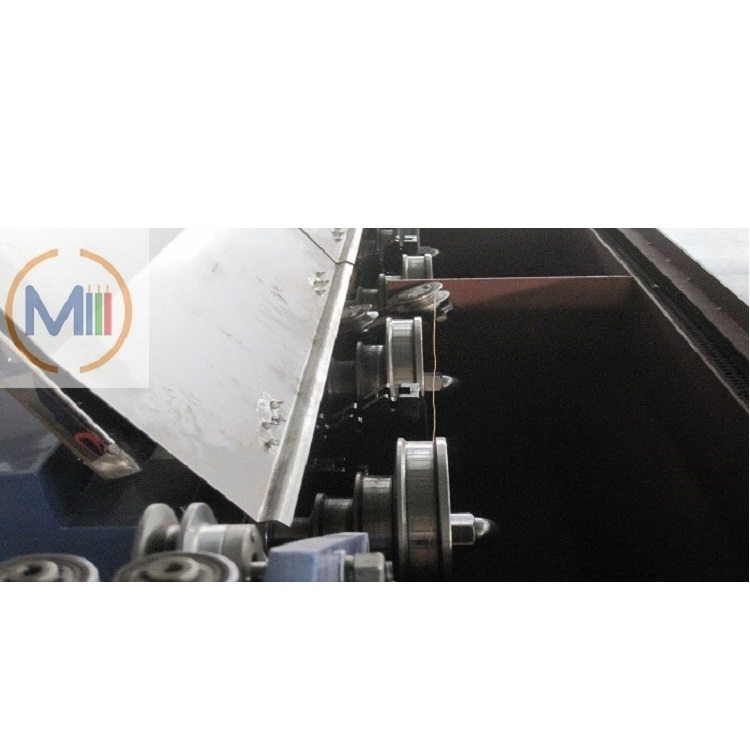

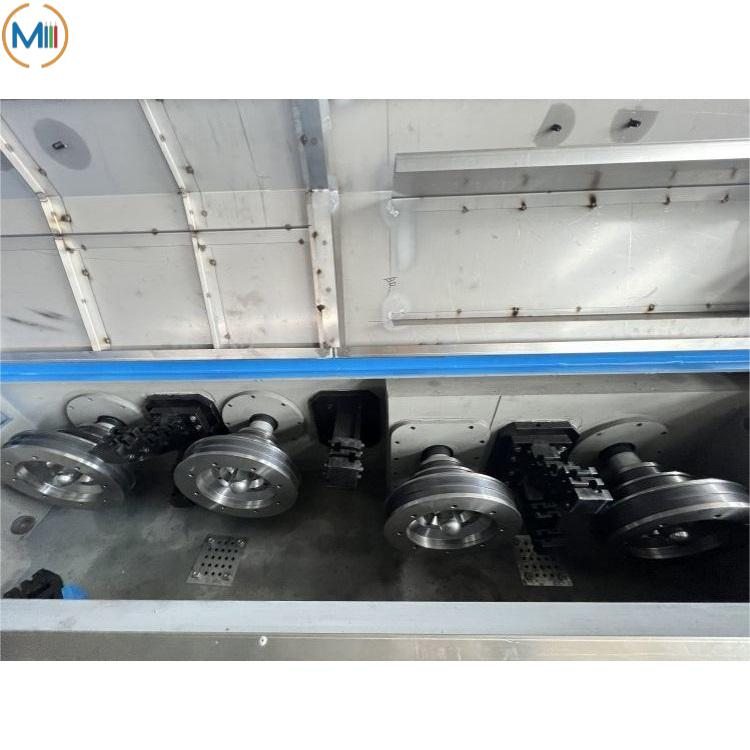

Capstan Carbon fibre plasma capstan
Main motor 55kw
Spooler motor 11kw
Fix speed capstan dia. Ø 250mm
Spool bobbin size Ø 500mm -630mm
Optional take-up machine 1-Drop coiler

2-Annealing part

3-Dual-spool take-up

3.Advantage:

1).Special seal system between the gear box and drawing section to prevent oil leakage and mixed.

2).Ironed cast and Wear-resistant capstan can keep long life.

3).For Second-section-annealing system, outside electrically neutral (no current flow to other unit)

4).Longer annealing section with tension ensure good and stable elongation.

5).Two types annealing were available to meet different size range and raw material.

4.Delivery time: 45-60 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Intermediate Wire Drawing Machine
