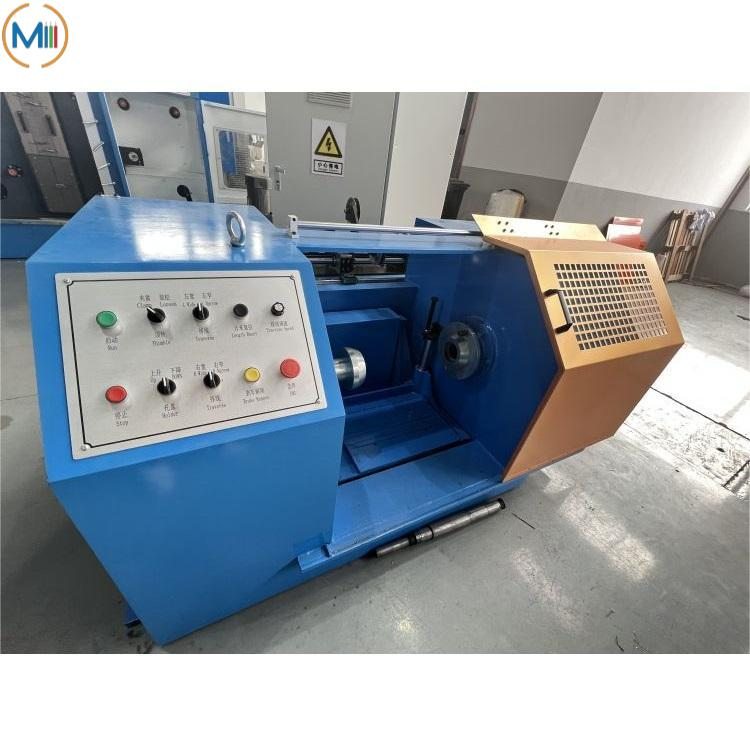

This machine is special for copper wire 0.4-1.6mm from 2.6-3mm. Finished wire is wound by the 630 single or dual bobbin automatic change take-up machine.
Two types annealing part are available.
Main feature:
1)Max.Dies Qty: 17
2)Outlet wire size: 0.4-1.6mm
3)Max speed: 2000m/min
1.Application:

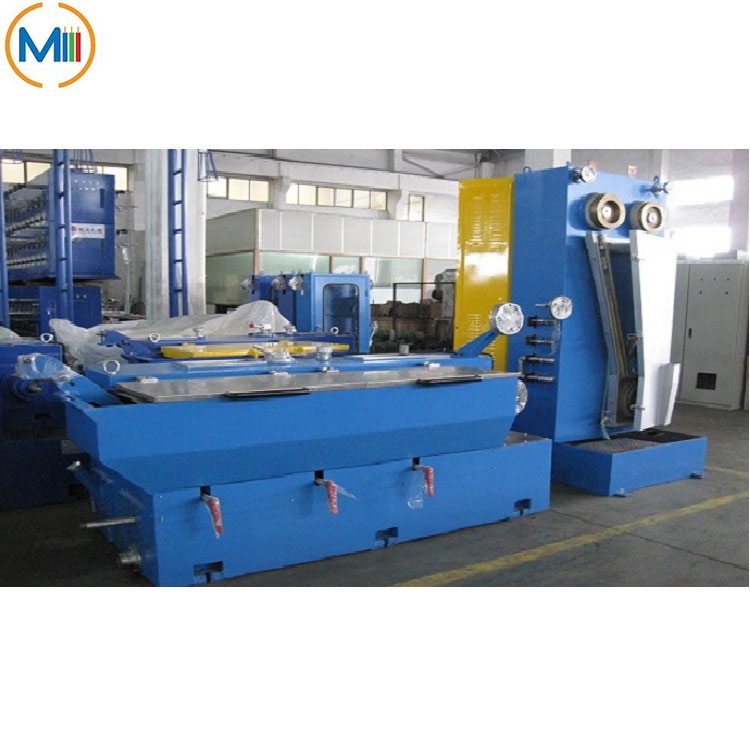

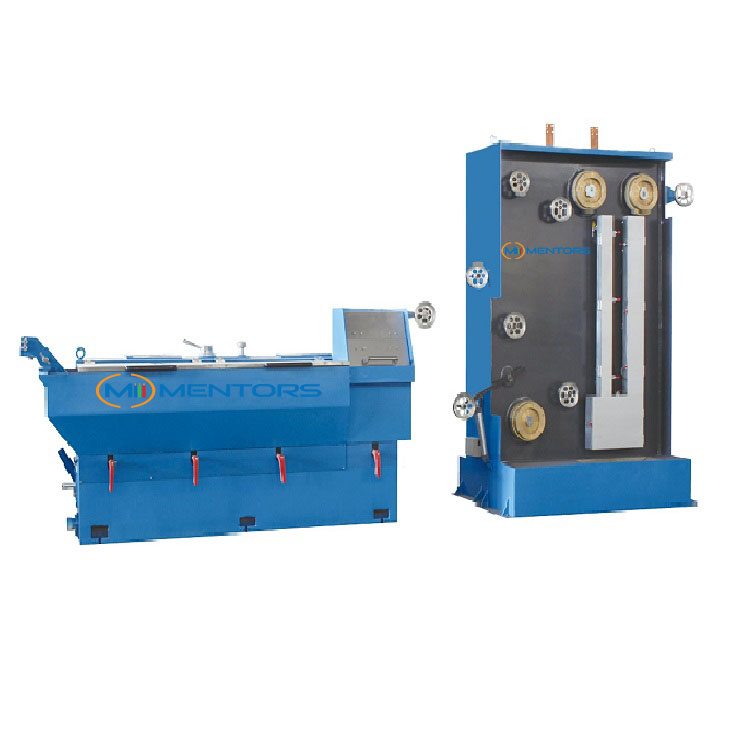

Intermediate Copper Wire Drawing Machine with Online Annealing is used for drawing and annealing copper wire from 3.0mm to 0.4-1.6mm.
Outlet wire can be collected by single spool take up or coiler.
2.Parameters:
| Machine type | SY-17DHT |
| Control system | PLC |
| Inverter control | Dual inverter control |
| Drawing dies No./max. | 17 |
| Inlet diameter | Ø 2.5- 3.5mm |
| Out diameter | Ø0.4- 1.6mm |
| Drawing line speed /max | 2000m/min |
| Slip ratio of m/c | 20% |
| Fix speed capstan slip ratio | 15.5% |
| Frame | Ironed cast |
| Capstan | Carbon fibre
plasma capstan |
| Main motor | 55kw |
| Spooler motor | 11kw |
| Fix speed capstan dia. | Ø 250mm |
| Dia.of annealing | Ø 250mm |
| Annealing voltage | DC 0-60V |
| Annealing current | DC 2000A |
| Protection type | Steam or nitrogen |
| Spool bobbin size | Ø 500mm or according to customers |
| Optional take-up machine | Coiler |
3.Advantage:
1). For same finished size, compare to Rod Breakdown Machine, electricity and energy saving.

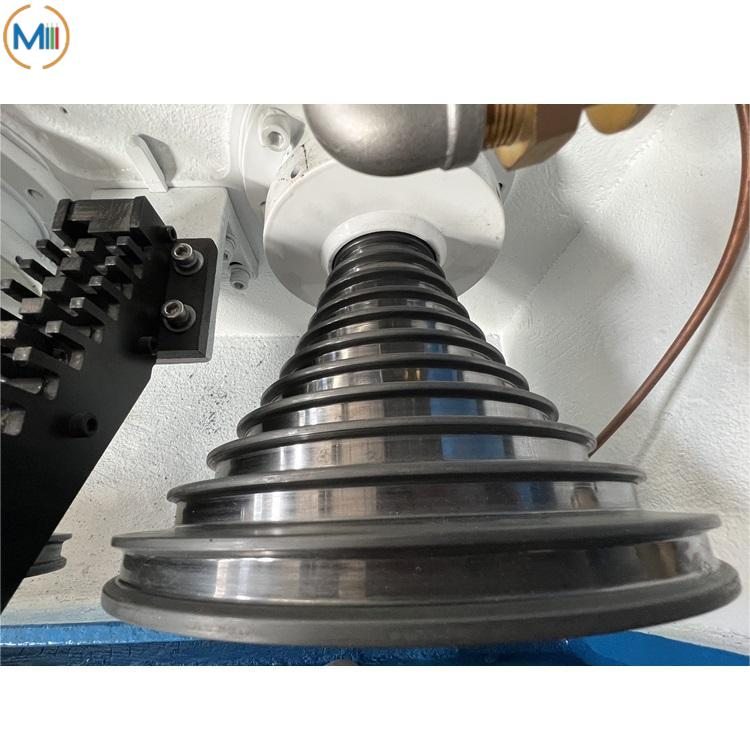

2). Ironed cast and Wear-resistant capstan can keep long life.
3). Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.
4). Besides normal copper, also is a good choice for welding wire

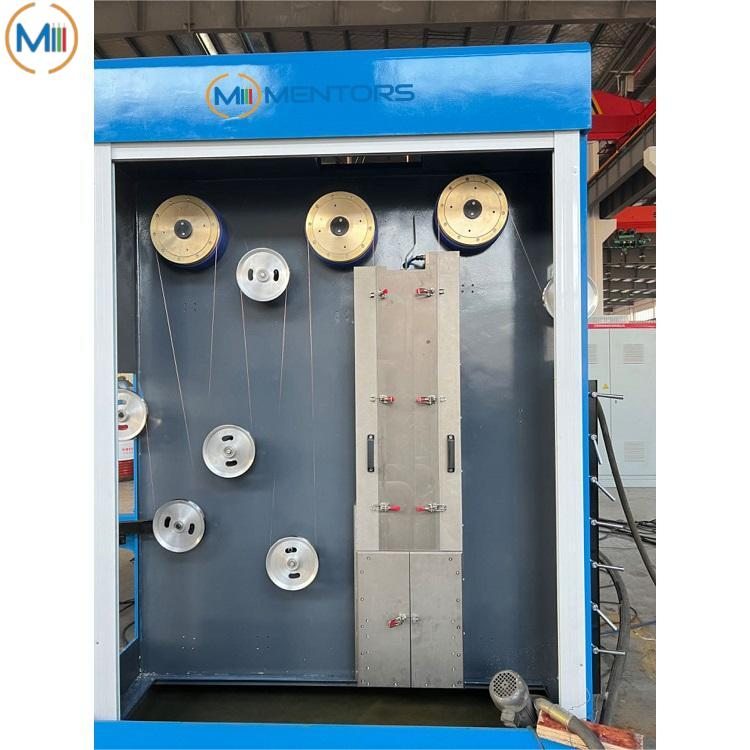

5). Horizontal annealing design is easily for operating.
6). Longer annealing section with tension ensure good and stable elongation.
4.Delivery time: 45-60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
