Multi Wire Drawing Machine for 8 wires

Home Multiwire Drawing Machine Copper Multiwire Drawing Machine Multi Wire Drawing Machine for 8 wires

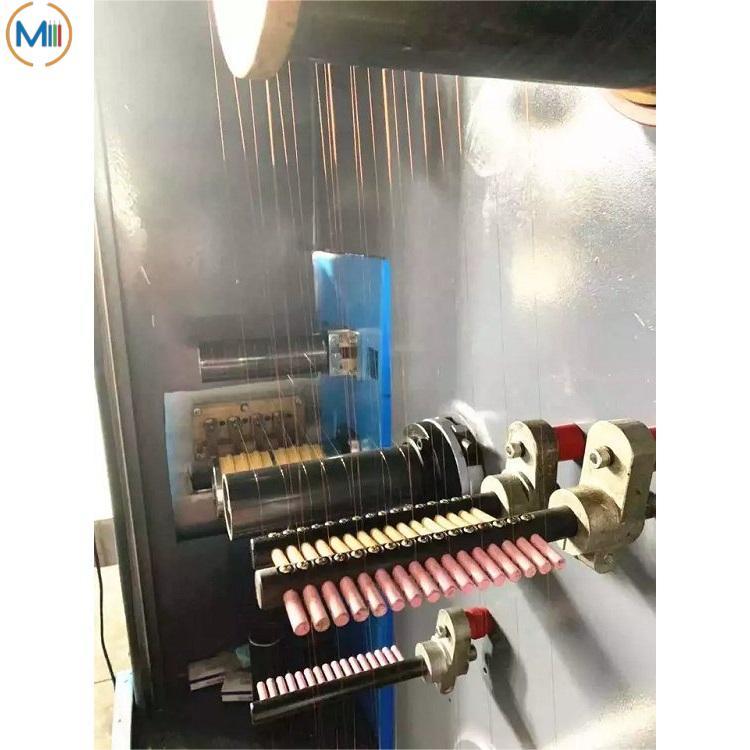

Multi Wire Drawing Machine for 8 wires

Wire range from 0.20 to 1.08 is suitable for this machine.

Finished wires are followed by single or dual spool take-up.

Main feature:

1). Wire quantity: 8 wires

2). Max.Inlet wire: 2.6 mm, outlet wire: 0.25-0.70 mm

3). Raw material: pure copper

Copper Multiwire Drawing Machine, Multiwire Drawing Machine2022-09-21m90 Tags: Multi Wire Drawing Machine

Description

1. Application:

Multi Wire Drawing Machine has 8 wires.

It has two different types which is depend on the quantity of machine drawing dies.

2.Parameters:

Machine Type DT21/100.8.C
Drawing Wire No. 8 Wires
Max. Die No. 21
Max.Inlet Dia.(mm) 2.6
Outlet Dia.(mm)    0.25 ~ 0.7
Drawing Capstan Dia. (mm) 100
Max.Drawing Speed.(m/s) 30

3.Advantages:

1).More stability, high production efficiency, low noise and easy to operation.

2).Space saving.

3).Electricity Saving and Labor Saving .

4).High efficiency for next pay-off progress.

5).Quick die change system for dies quantity saving 30%.

6).Two clutches for faster speed.

4.Delivery time: 90-120 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Copper Multiwire Drawing Machine
