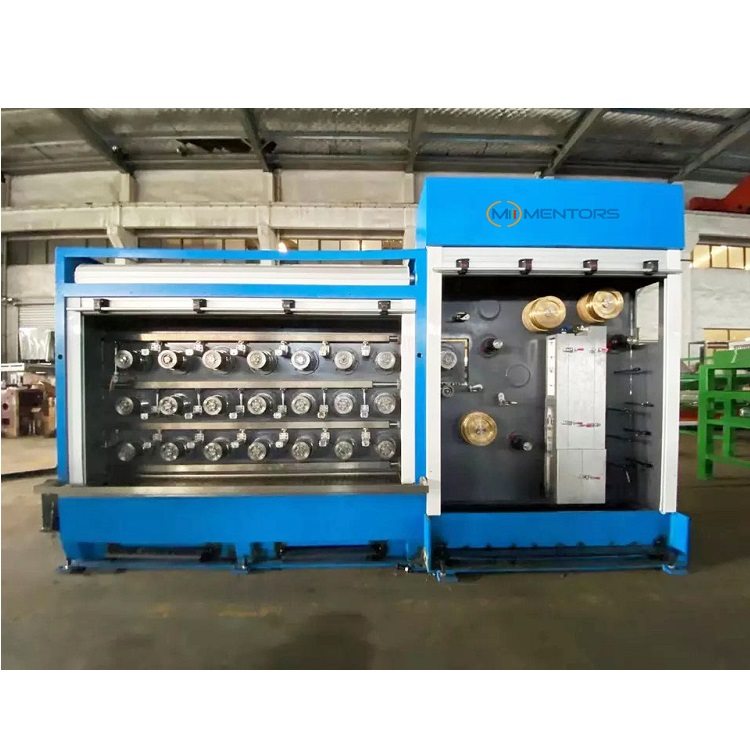

Multi Wire Drawing Machine with Annealing for 4 wires
Double motor inverters,small slip high quality
Tension auto control system
Feature:
1).Max.Dies Qty: 21
2).Outlet wire size: 0.2-0.4mm
3).Max speed: 25m/s
Description
1. Application:
This machine adapt international advanced technology.
It is used to drawing 4 wires of inlet Φ1.8 mm to outlet Φ 0.2-0.4 mm at the same time, with advantage of beautiful shape, no noise, advanced structure
2.Parameters:
| Machine Type | SY-DT20/4.1 |
| Inlet wire diameter | 4*Φ1.8 mm |
| Outlet wire diameter | 4*Φ0.2-0.4 mm |

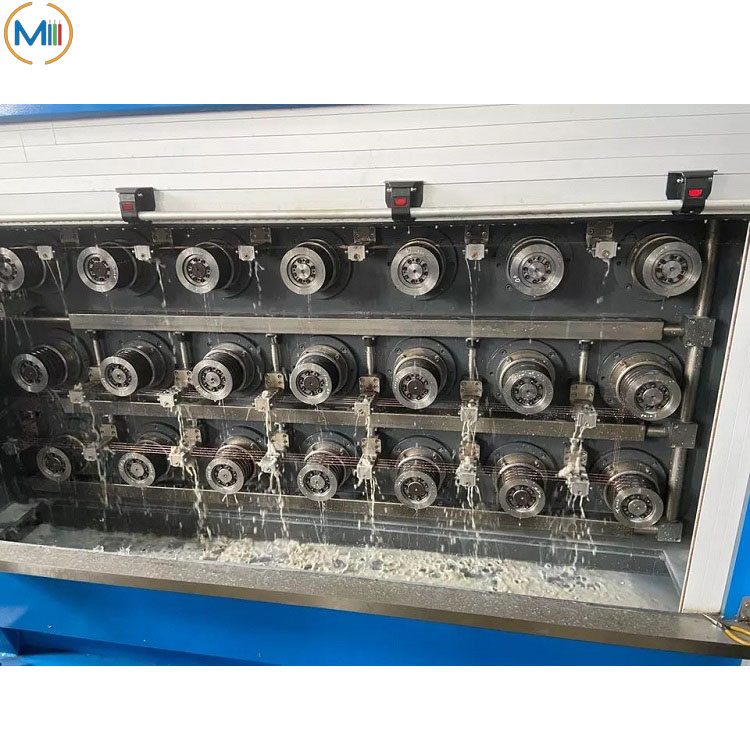

| Drawing drum diameter: | φ115 mm |
| No.of drawing dies: | Max.21 ×4 |
| Drawing drum wheel slip: | 1.25-1.12 （Last die can be adjusted） |
| Drawing speed(Max): | 25 m/s |
| Main motor power: | 45KW (AC) |
| Fixed speed wheel motor power: | 15 KW (AC) |

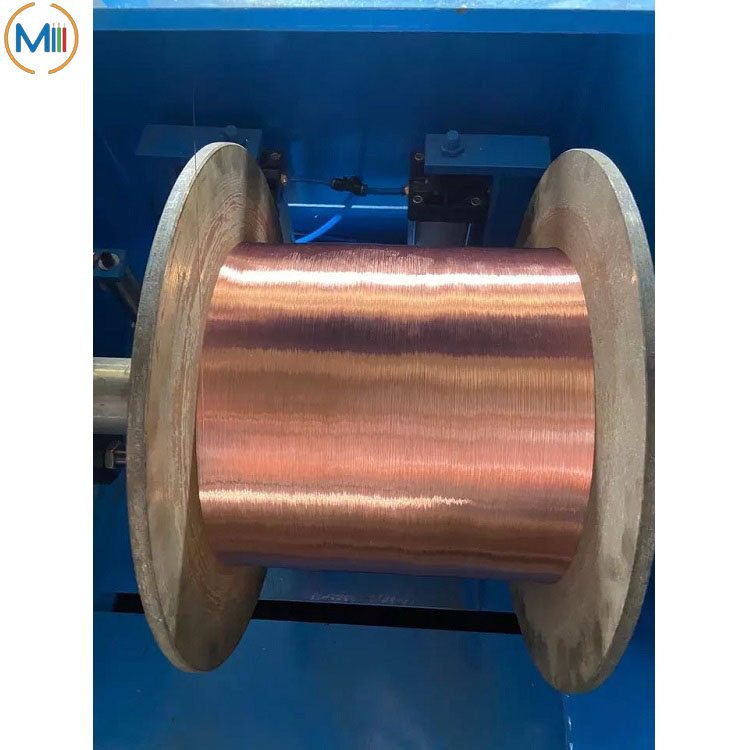

| Take up bobbin size: | PND630 mm |
| Annealing power： | 60V*1200A (DC) max |
| Take up motor power: | 7. 5 KW (AC) |
3.Advantages:
1). Multi wire, high efficiency.
2). Third-section-annealing system, outside electrically neutral (no current flow to other unit)
3). Machine’s body and other key components and parts are produced by our own factory, quality is reliable.
4). The unit time power consumption is lower 10% than equal qty single wire drawing m/c, save 50% space, die qty save 1/3, with fast change die function, deduce production process towards stranding.
5). Produce same mechanical and electrical finished wire.
4.Delivery time: 60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
