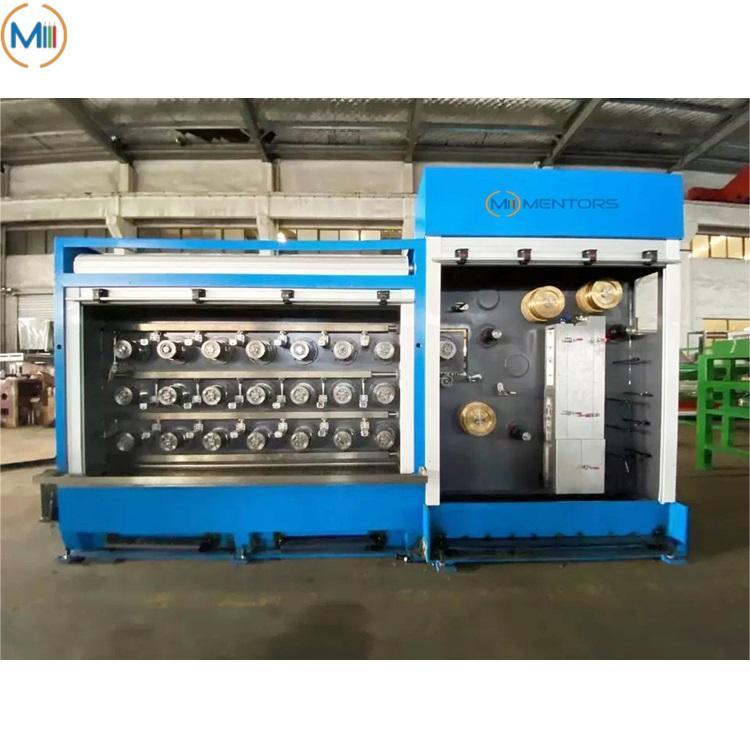

MultiWire Drawing Machine for 4 wires
It is a tandem type drawing machine with all the drawing capstans aligned in a row.
Main feature:
1). Wire quantity: 4 wires
2). Max.Inlet wire: 1.85 mm, outlet wire: 0.25-0.70 mm
3). Raw material: pure copper
Description
1. Application:
This Multi Wire Copper Wire Drawing Machine has four wires and is mainly used for drawing copper wire to 0.25-0.70 mm wire.
2.Parameters:
| Machine Type | SY-DT18/120.4 |
| Drawing Wire No. | 4 Wires |
| Max. Die No. | 18 |
| Max.Inlet Dia.(mm) | 1.85 |
| Outlet Dia.(mm) | 0.25 ~ 0.7 |

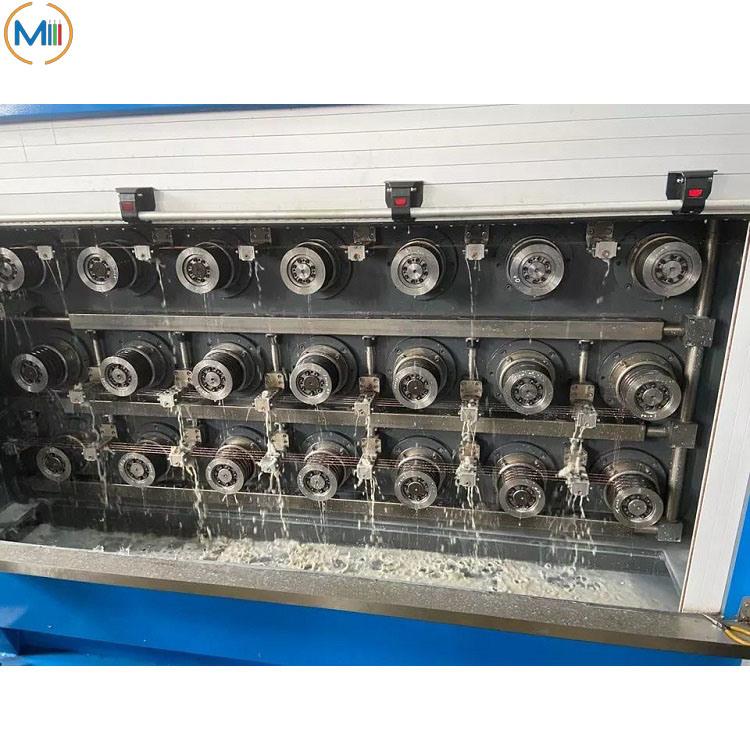

| Drawing Capstan Dia. (mm) | 120 |
| Max.Drawing Speed.(m/s) | 25 |
| Capstan | Ceramic coated or Zirconium |
3.Advantages:
1).More stability, high production efficiency, low noise and easy to operation.
2).Space saving around 50%
3).Electricity Saving around 10%; Labor Saving 50%
4).High efficiency for next pay-off progress.
5).Quick die change system for dies quantity saving 30%.
6).Two clutches for faster speed.
4.Delivery time: 60-90 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
