Middle Speed Rod Breakdown Machine With Annealer

Home Drawing and Annealing Machine Middle Speed Rod Breakdown Machine With Annealer

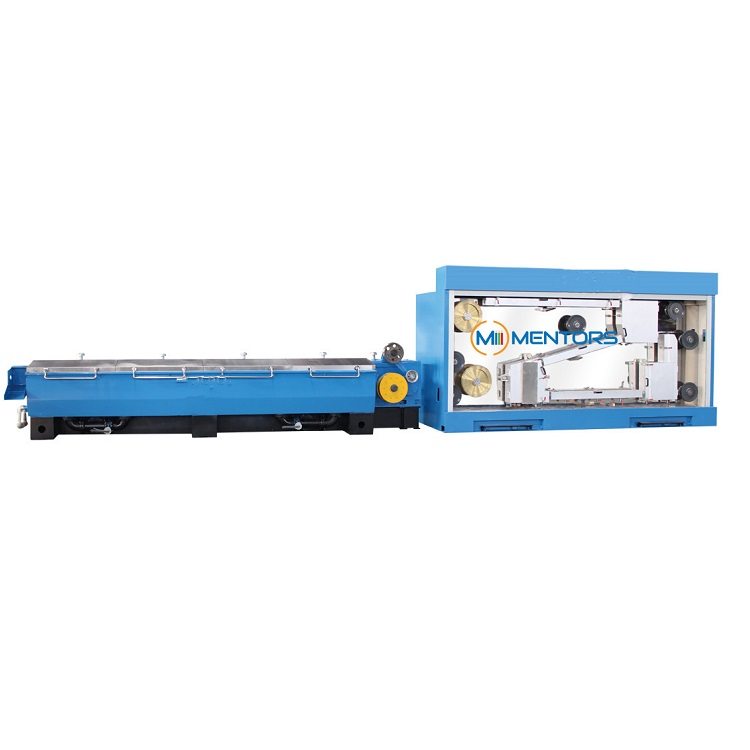

Middle Speed Rod Breakdown Machine With Annealer

The machine is mainly used for drawing and annealing copper rod to Φ1.2~Φ3.0mm wire.

Outlet wire can go to single take up device or coiler.

Feature

Capstan Diameter: 400mm

Max.Dies Quantity:11

Main Motor: 132KW

Speed Range: 15m/s

Drawing and Annealing Machine, Rod Breakdown Machine with Annealer2019-02-20m90 Tags: Wire Drawing Machine

Description

1. Application:

The machine is used for drawing and annealing copper rod from 8.0mm to 1.6-3.2mm.
Outlet wire can go to single take up device or coiler.

2.Parameters:

Machine type SY-LHT400/11
Max. Inlet Dia. (mm) Ф8
Outlet Dia. ( mm ) Ф1.6~Ф3.2
Max. Die No. 11
Max. Line speed (M/S) 15

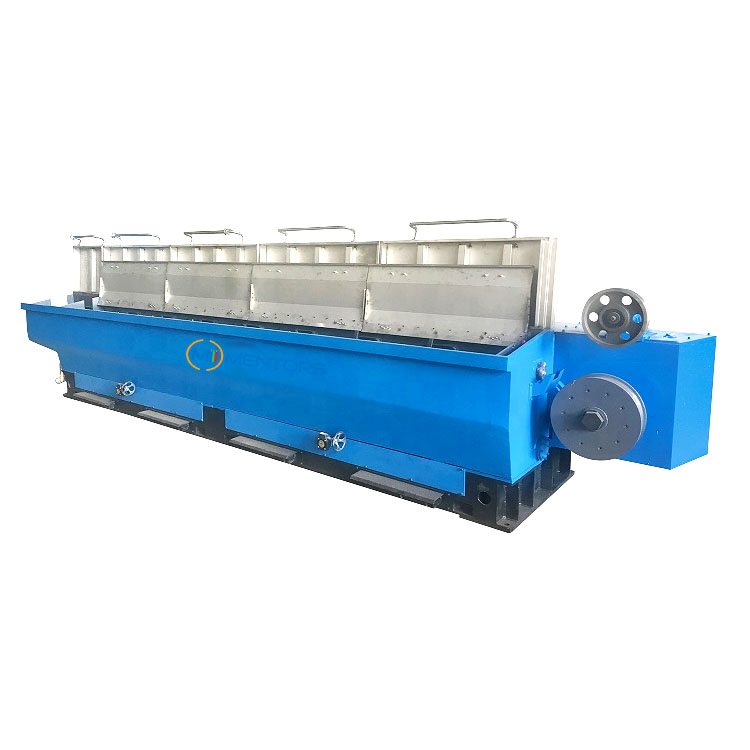

Body structure Ironed cast
Transmission type By high precision grinding gear
Fix speed capstan Dia. Ф400mm
Drawing drum Coated by tungsten
Main motor power (KW) 132

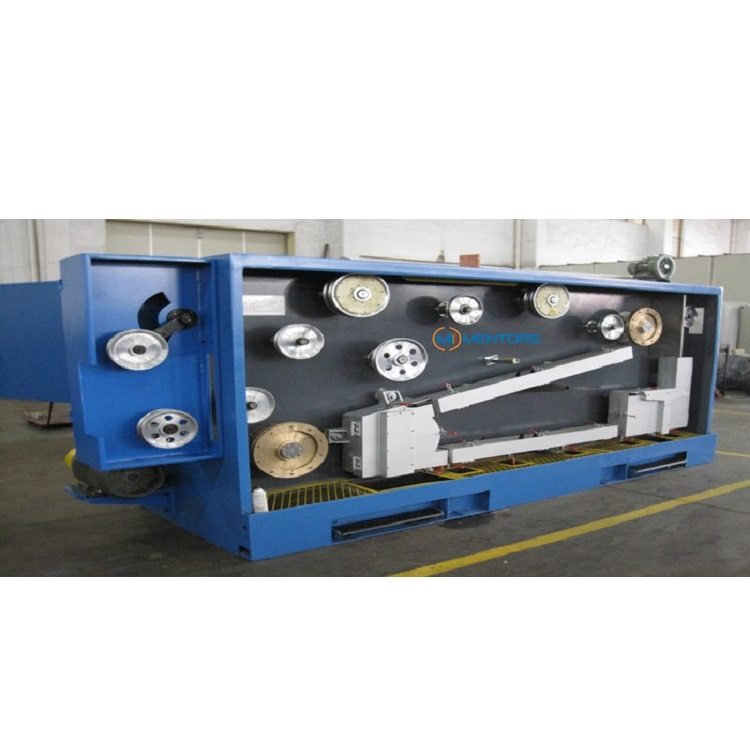

Online Annealing 350T
Machine structure Horizontal
Annealing wire dia. 1.2-3.2mm
Annealing current 4500A(DC)
Lubrication Type Immersion
Optional Take-up 1.Compact coiler
  2.Double take-up

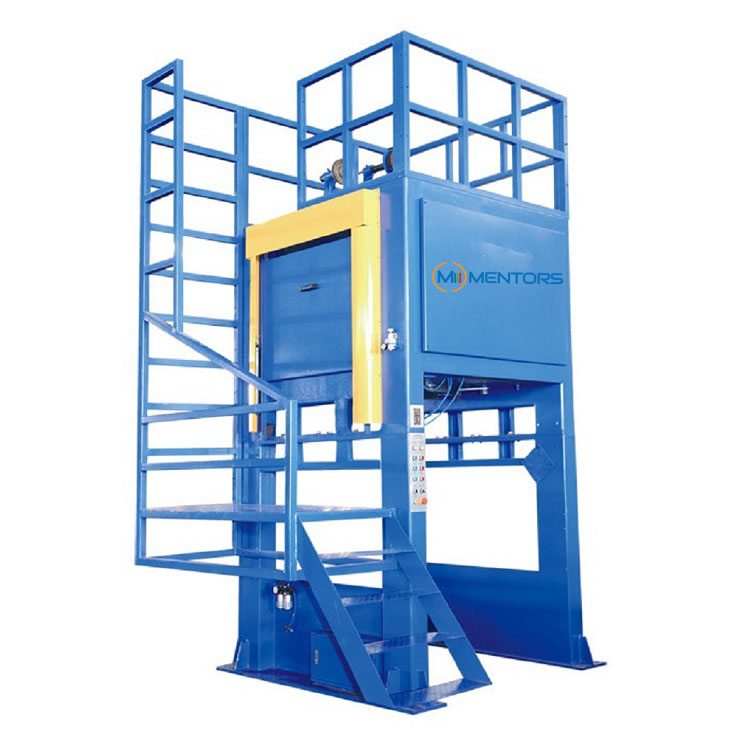

  3.Drop Coiler
  4.QD630 Single spool take-up
Optional Function Fast change die system

3.Advantage:

1).Motor With inverter controlled, energy saving.

2).Iron cast gear box body ensure long life with low noise.

3).Precision grinding gear (gear material: 20CrMnTi), with oil lacking protection system.

4).Capstans and dies are cooled by both half-submerged and sprayed emulsion to ensure a complete cooling and lubrication.

5).Economical equipment. Max speed range from 10-15m/s. It’s the best choice for middle level factory production request.

6).Three or four section AC annealing with full digital control to make wire with good elongation.

4.Delivery time: 90 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Rod Breakdown Machine with Annealer
