The drawing part and take-up adopt inverter step-less speed regulation.

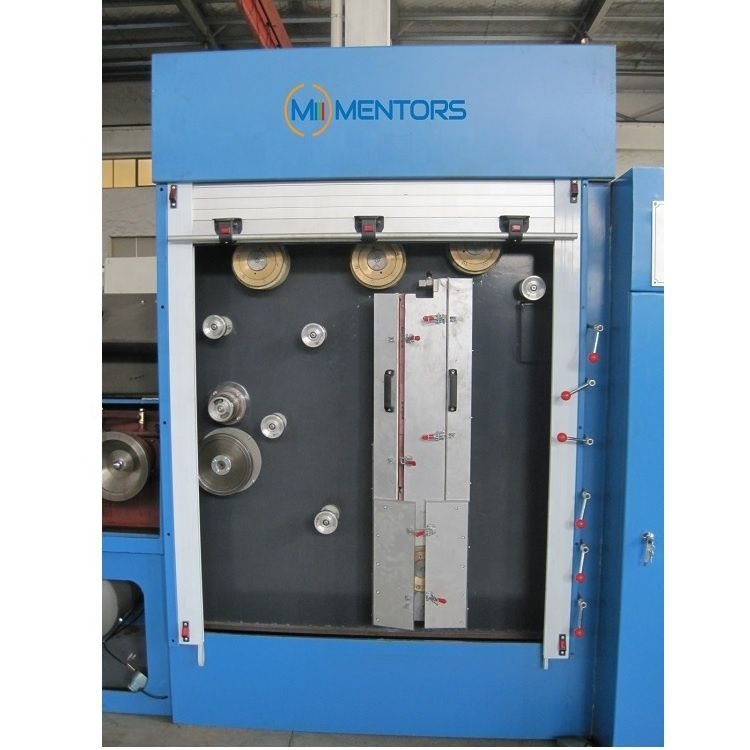

Annealing adopts 791 digital control. And annealing voltage automatically follows the main speed and is independently adjustable.
Main feature:
1. Max Drawing Dies No: 24
2. Drawing Line Speed: 1500 m/min

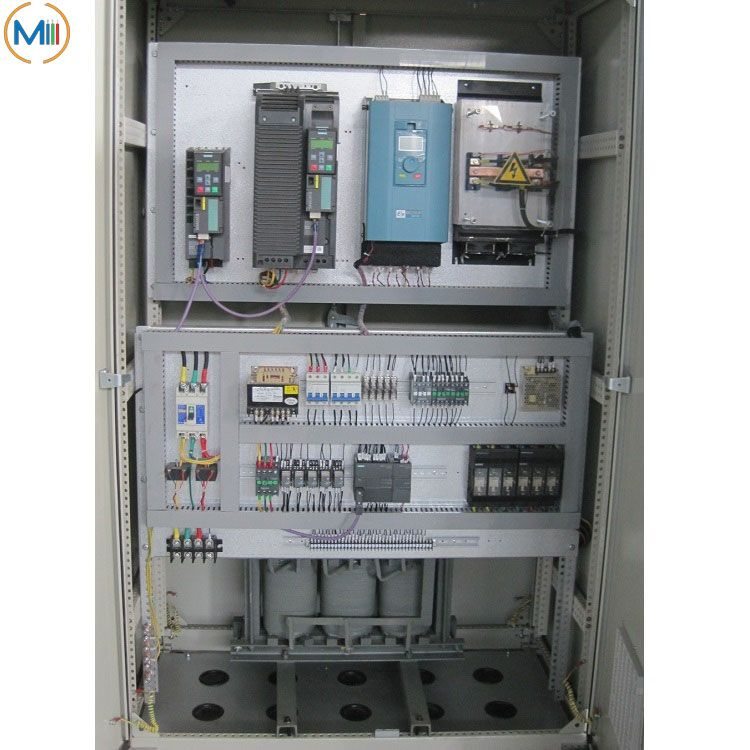

3. Dual inverter control
1. Application:

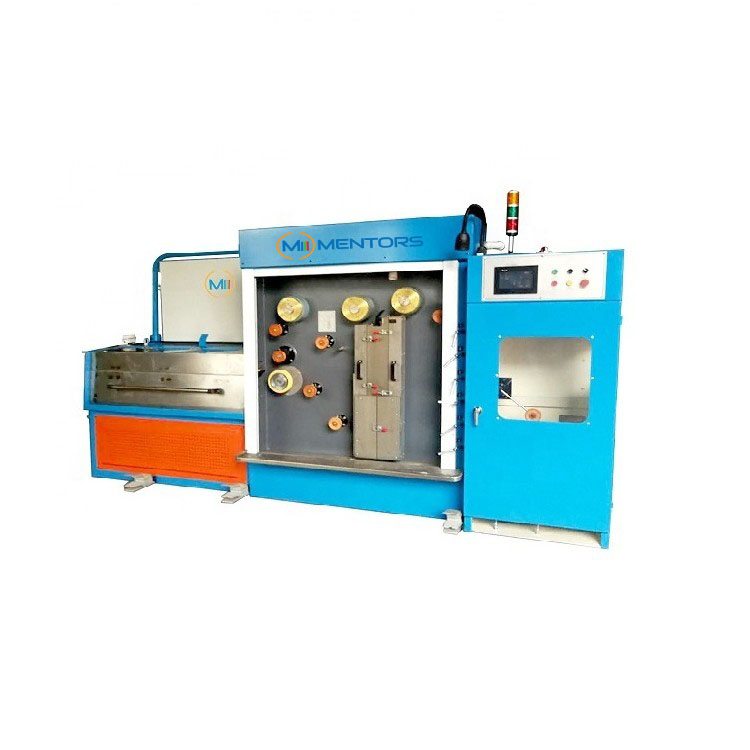

Tinned Plated Copper Wire Drawing Machine adopts human machine interface for unified and coordinated control.
And this machine is especially used for drawing Tinned Plated Copper Wire from 0.5-1.38 mm to 0.10-0.32 mm.
2.Parameters:
| Machine type | SY-DT24Z.1 |
| Inverter control | Dual inverter control |
| Drawing dies No./max. | 24 |
| Inlet diameter | 0.5- 1.38 mm |
| Out diameter | 0.10- 0.32 mm |
| Max.Drawing line speed | 1500 m/min |
| Slip ratio of m/c | 13% |
| Fix speed capstan slip ratio | 8% |
| Frame | Welded by steel plate |
| Capstan | Ceramic plasma capstan |
| Main motor | 15 kw |
| Spooler motor | 4 kw |
| Annealing voltage | DC 0-60 V |
| Annealing current | DC 250 A |
3.Advantages:
1. Zirconium oxide capstan with long working life and also ensure wire surface smoothly

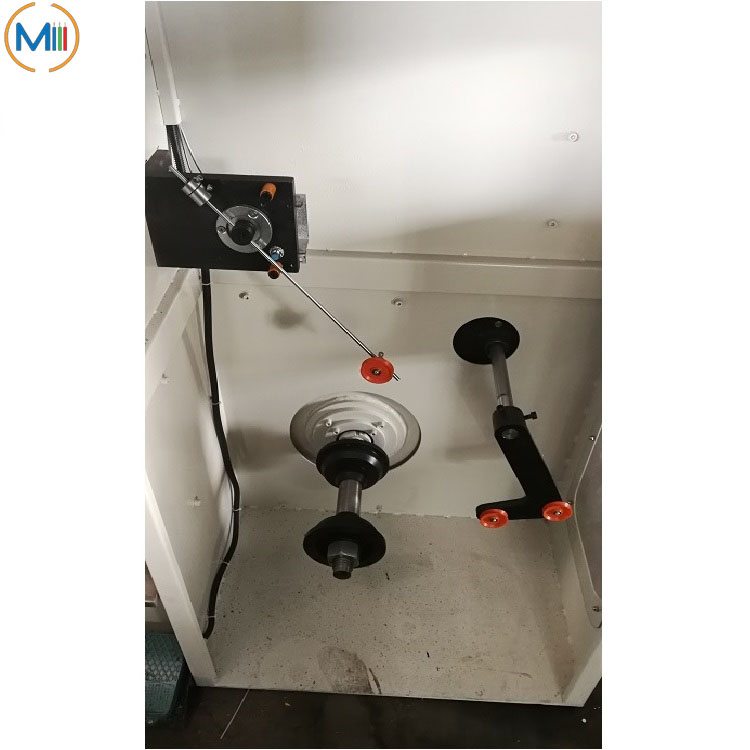

2. Tinned Plated Copper Wire Drawing Machine use automatic traversing system, no need adjust the traversing width by hand.
3. It is equipped with automatic shutdown functions such as failure and disconnection; the man-machine interface displays various data such as wire drawing speed, length, annealing voltage, annealing current and operating information.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
