Vertical Wire Drawing Machine

Home Single Wire Drawing Machine Vertical Wire Drawing Machine

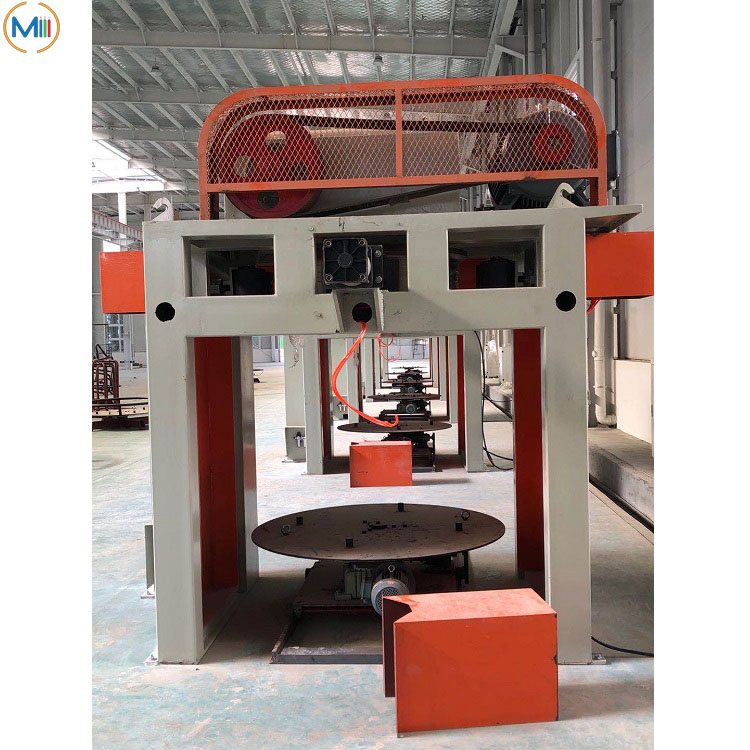

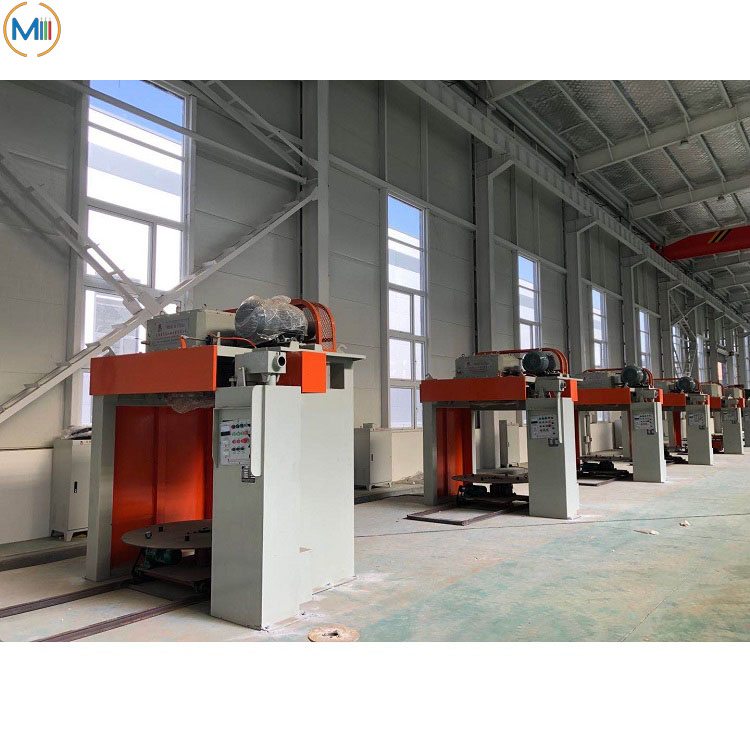

Vertical Wire Drawing Machine

Vertical Wire Drawing Machine has various functions such as man-machine dialogue, motor over-temperature protection, abnormal water pressure, meter counting, full-scale alarm, and fault display.

Main feature:

1) Cooling Type: Nature Cooling

2) Inlet wire size:6-10mm

3) Max speed: 50m/min

Single Wire Drawing Machine, Steel Wire Drawing Machine2022-10-11m90

Description

1. Application:

Vertical Wire Drawing Machine is suitable for drawing various metal wires below 10mm, such as spring steel wire, rope steel wire,etc.

2.Parameters:

Item Spec
Name Vertical Wire Drawing Machine
Model SY-DL800




The scope of supply

1)Rotate passive pay-off with break for 2 tons wire 1PC

2)DL800 main machine with electrical control panel 1 PC;

3)Take-up coiler: 2 PCS;

4)Electrical cabinet:1 set;

5)Electrical rotate take-up base: 1 set;





Wire range

1)Inlet wire diameter:Φ10~6mm

2)Inlet wire tension strength:≤980Mpa;

3)Total compression ratio:≤10-25%

Main motor 37kw
Machine speed 50 m/min(Light load high speed, heavy load low speed)
Cooling type Nature cooling
Noise ≤82dB

3.Advantages:

1.Easy operation and high degree of automation.

2.The transmission part adopts first-class strong narrow V-belt and hard-tooth surface reducer, which has high transmission efficiency.

3.The reel adopts air cooling and water cooling, and the mold box adopts direct water cooling, with good effect.

4.Delivery time: 45-60 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Steel Wire Drawing Machine
