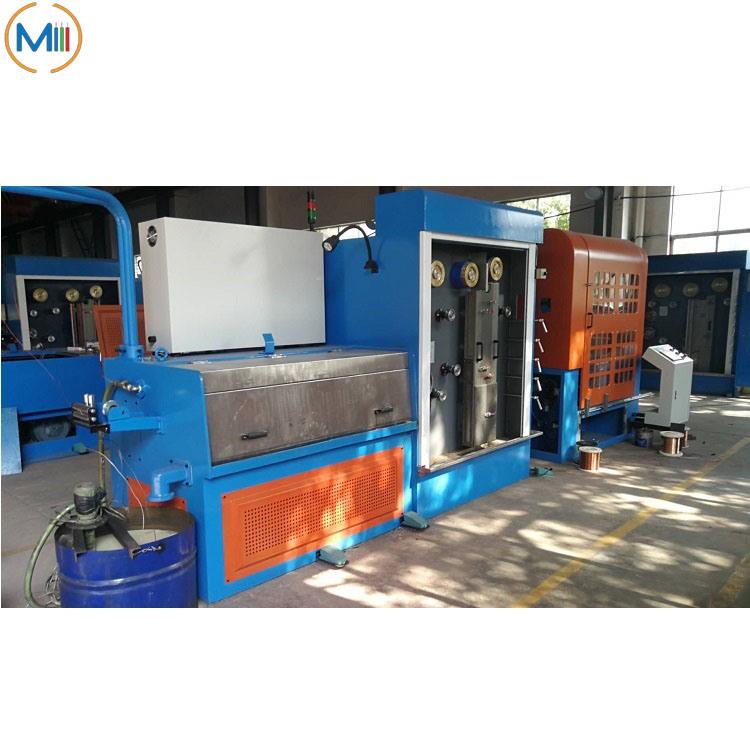

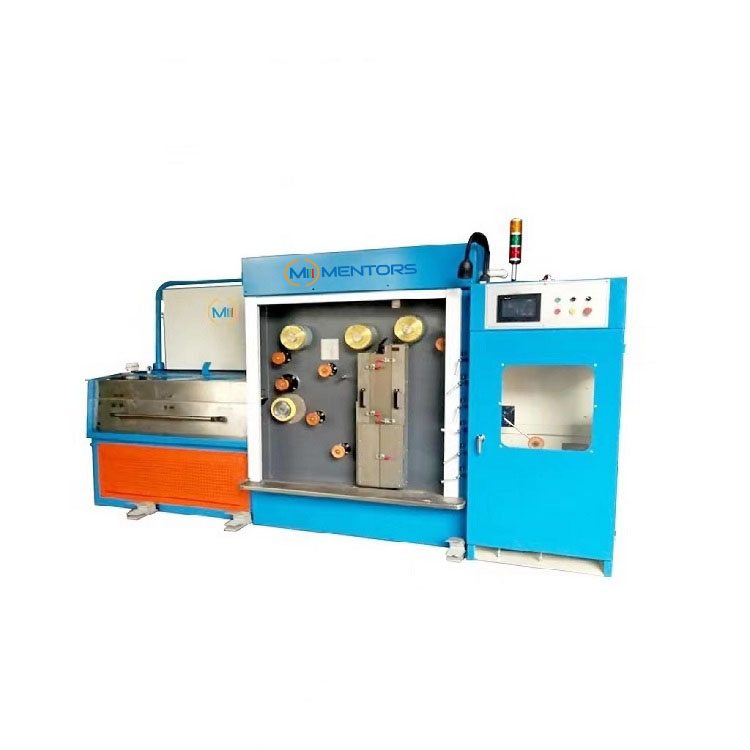

This machine is special for drawing and annealing two copper wires 0.5-1.2mm from 0.10-0.32mm.
Finished wire is wound by 300 steel bobbin.
Feature:
1). Wire quantity: 2 wires
2). Max.Inlet wire: 0.5- 1.2mm, outlet wire: 0.10-0.32mm
3). Raw material: pure copper
1. Application:
copper wire drawing machine for 2 wires is used for drawing and annealing copper wire from 0.5-1.38mm to 0.15-0.35mm.
2.Parameters:
| Machine Type | SY-DT24.2 |
| Drawing Wire No. | 2 Wires |
| Inlet Dia.(mm) | 1.0 |
| Outlet Dia. (mm) | 0.15-0.35 |
| Max. Die No. | 24 |
| Max. Line Speed (m/min) | 1800 |
| Main Motor Power (kw) | 22/18.5 |
| Take-up Motor (kw) | 4 |

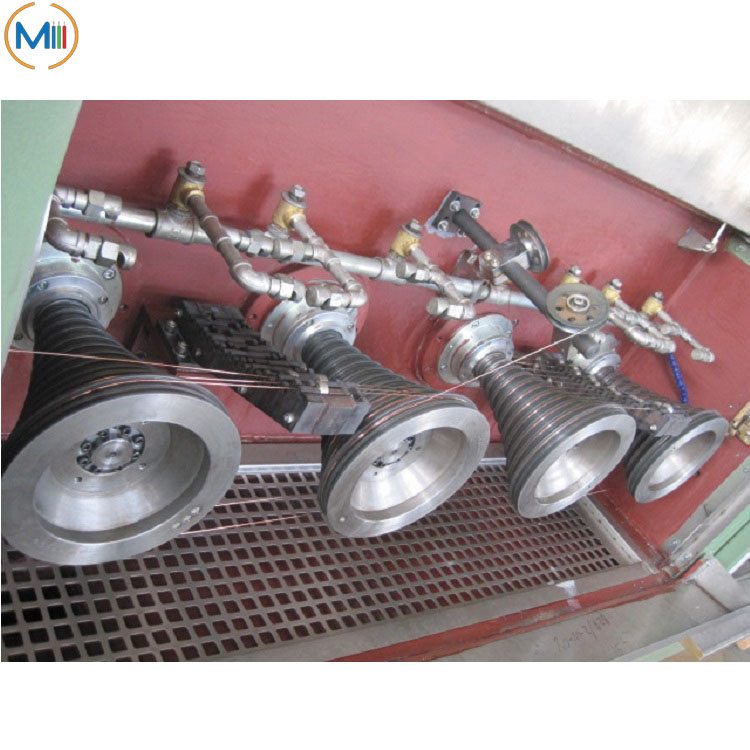

| Fix Speed Capstan Dia.)(mm) | 160 |
| Take-up bobbin size(mm) | 300/400or changed by requirement |
| On-line Continuous Annealing Device | |
| Type | 160T-2 |
| Annealing Wire No. | 2 Wires |
| Annealing Wire Dia.(mm) | 0.15-0.35 |
| Annealing Voltage ( V ) | 0 ~ 60 |
| Annealing Current ( A ) | 0~350A |
3.Advantage:
1).More stability, high production efficiency, low noise and easy to operation.
2).Space saving around 50%
3).Electricity Saving around 10%; Labor Saving 50%
4).High efficiency for next pay-off progress.
4.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
5.Guarantee: 12 months since shipping date(exclude easily wearing part)
