Wire Drawing Machine With Annealer

Home Single Wire Drawing Machine Copper Wire Drawing Machine Wire Drawing Machine With Annealer

Wire Drawing Machine With Annealer

The drawing tank cover is sealed with a double-layer cover, the door cover material is stainless steel.

Wire Drawing Machine With Annealer is beautiful in appearance, advanced in structure, low in operating noise, high in production efficiency, and high in economic benefits.

Main feature:

(1) Max.Dies Qty: 13

(2) Outlet wire size: 0.8-2.78 mm

(3) Max speed: 20 m/s

(4) Three or four sections horizontal annealing.

Copper Wire Drawing Machine, Single Wire Drawing Machine2022-10-10m90

Description

1. Application:

This machine is used for drawing and annealing copper wire .

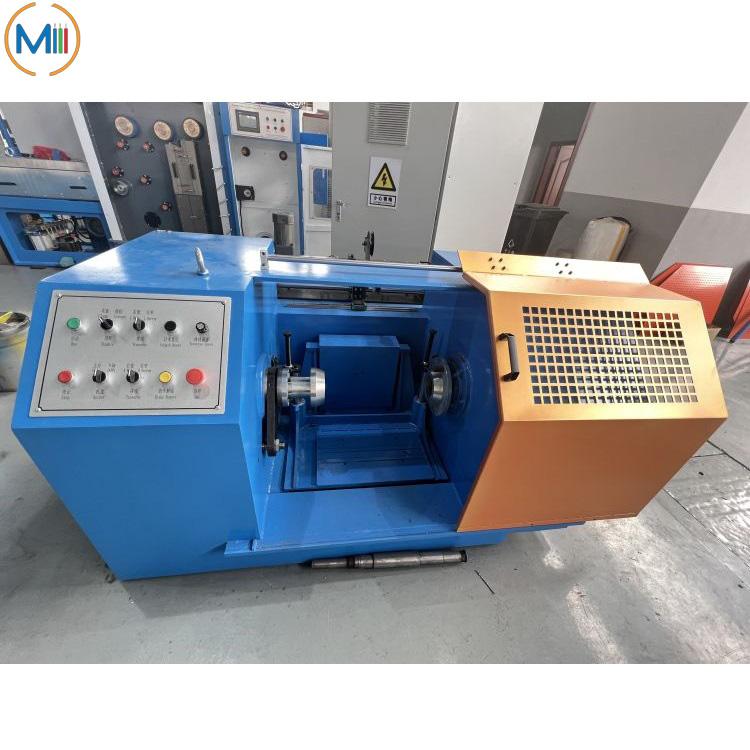

Outlet wire can be collected by single spool take up or coiler.

2.Parameters:

Machine type SY-13DHT/B
Control system PLC with touch screen
Inverter control Dual driver control
Drawing dies No./max. 13
Inlet diameter 2.6- 3.5 mm
Out diameter 0.68- 2.78 mm
Drawing line speed 2000mpm/max
Slip ratio of m/c 20%
Fix speed capstan slip ratio 15.5%
Main motor 75 kw
Spooler motor 11 kw
Spool bobbin size Ø 500-630 mm

3.Advantages:

1.The whole machine adopts PLC control,synchronous adjustment of speed, and automatic shutdown functions such as meter, disconnection, failure, etc.

2.The traversing width of Wire Drawing Machine With Annealer can be adjusted automatically.

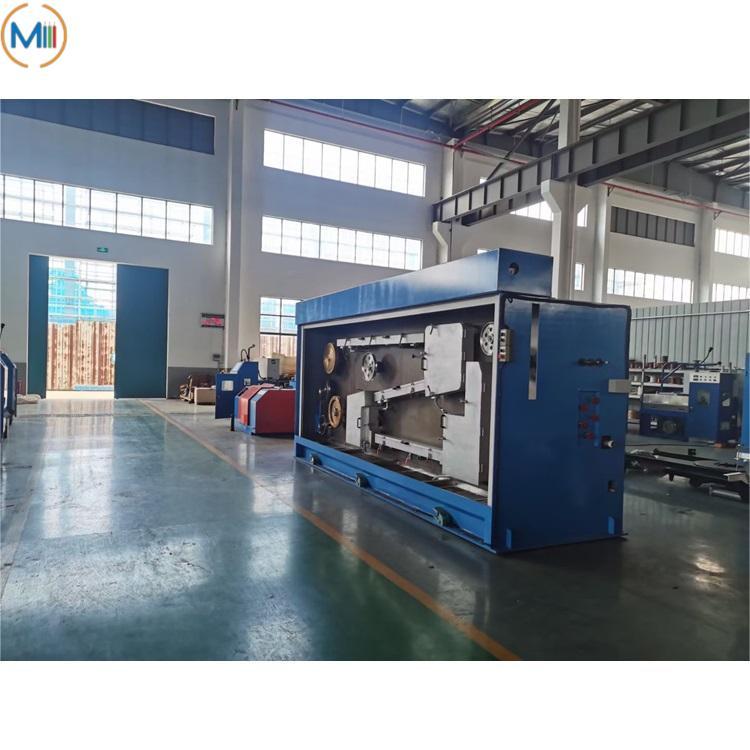

3.The unit is equipped with a steam generator, and the annealing and softening chamber is protected by steam. The annealing tank and the cooling chamber are filled with steam or coolant, and there is no air mixing, so that the annealing copper wire is not oxidized.

4.Delivery time: 45-60 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)

Click here to find out more about different types of Copper Wire Drawing Machine
